ILS-XN06-S420-SD111. Intelligent LED Solutions N3535U UVA Series 1-LEDs UV LED 430 nm 3600 mW 55 ° Screw package

View all UV LEDs
Bulk discount available

Subtotal (1 unit)*

£31.59

(exc. VAT)

£37.91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 5 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£31.59
10 +£28.43

*price indicative

RS Stock No.:
283-217
Mfr. Part No.:
ILS-XN06-S420-SD111.
Brand:
Intelligent LED Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Intelligent LED Solutions

Number of LEDs

1

Product Type

UV LED

UV Type

UV A

Peak Wavelength

430nm

Radiant Flux

3600mW

Viewing Angle

55 °

Mount Type

Screw

Width

20 mm

Length

300mm

Height

5mm

Standards/Approvals

IEC 61547 and IEC 61000-3-2 -ENEC: 61374-2-13 and IEC/EN 62384, IEC 62471:2006, EN 55015, RoHS, CE: EC61374-2-13

Automotive Standard

No

Series

N3535U UVA

COO (Country of Origin):
GB

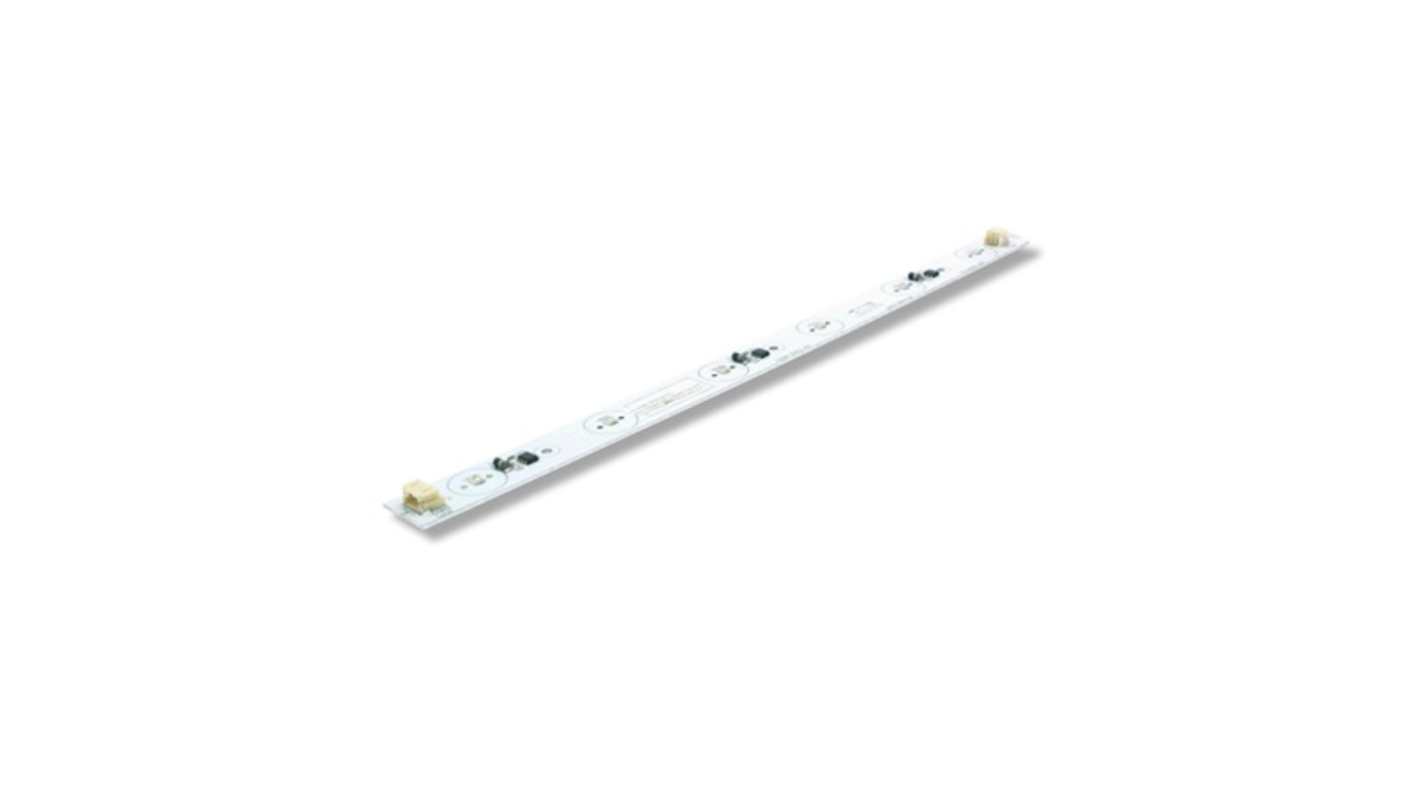

The Intelligent LED Solutions UV 6 product are 6 compact, high quality and reliable TSLC C3535 1-chip UV LED, with a primary 125 degree lens, featuring high radiometric power density and design flexibility. The UV 6 strip range is suited to demanding industrial applications and features a vertical chip structure on a patented metal alloy substrate, offering advances in optical output and high thermal conductivity.

Up to 100,000 hours lifetime to 70% of original brightness

Mounting holes using M3 screws allows easy installation
