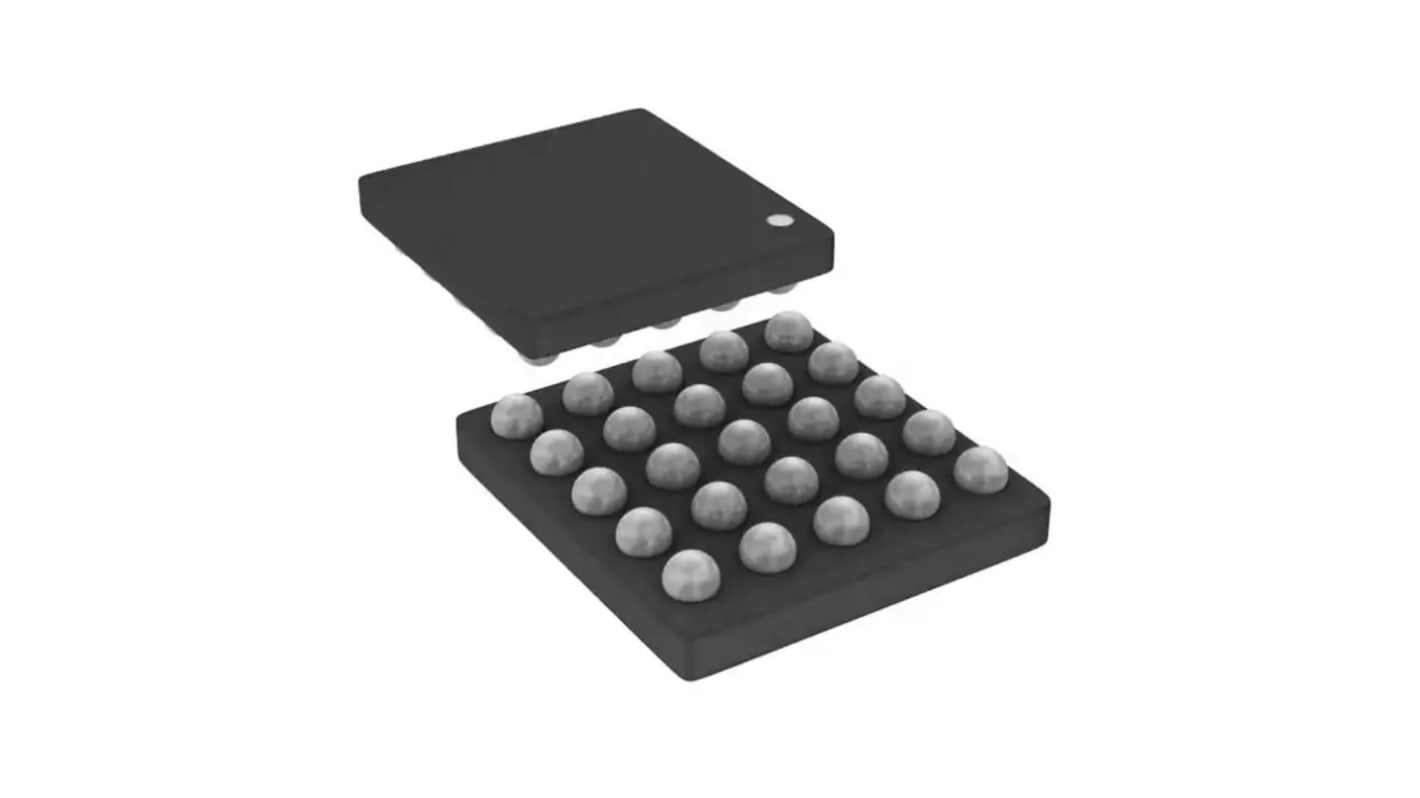

STMicroelectronics STUSB4500LBJR, USB Controller, 4.1 V, 22 V, 24-Pin QFN
- RS Stock No.:
- 203-3488
- Mfr. Part No.:
- STUSB4500LBJR
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 203-3488
- Mfr. Part No.:
- STUSB4500LBJR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| IC Type | Controller IC | |
| Power Supply Type | Dual | |
| ESD Protection | Yes | |
| Typical Single Supply Voltage | 4.1 V, 22 V | |
| Package Type | QFN | |
| Pin Count | 24 | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
IC Type Controller IC | ||
Power Supply Type Dual | ||
ESD Protection Yes | ||
Typical Single Supply Voltage 4.1 V, 22 V | ||
Package Type QFN | ||
Pin Count 24 | ||
The STMicroelectronics STUSB4500L is a USB Type-C controller that addresses sink devices. It supports dead battery mode which is suited for sink devices powered from dead battery state. The device is able to operate without any external software support for quick application power-on and immediate charging process start. The device implements high voltage features to protect the CC pins against short-circuits to VBUS, due to its 20 V technology.
USB Type-C™ rev 1.4 and Power sinking device (TID #1455) certified
ESD: 3 kV HBM - 1.5 kV CDM
Temperature range: -40 °C up to 105 °C
ESD: 3 kV HBM - 1.5 kV CDM
Temperature range: -40 °C up to 105 °C
