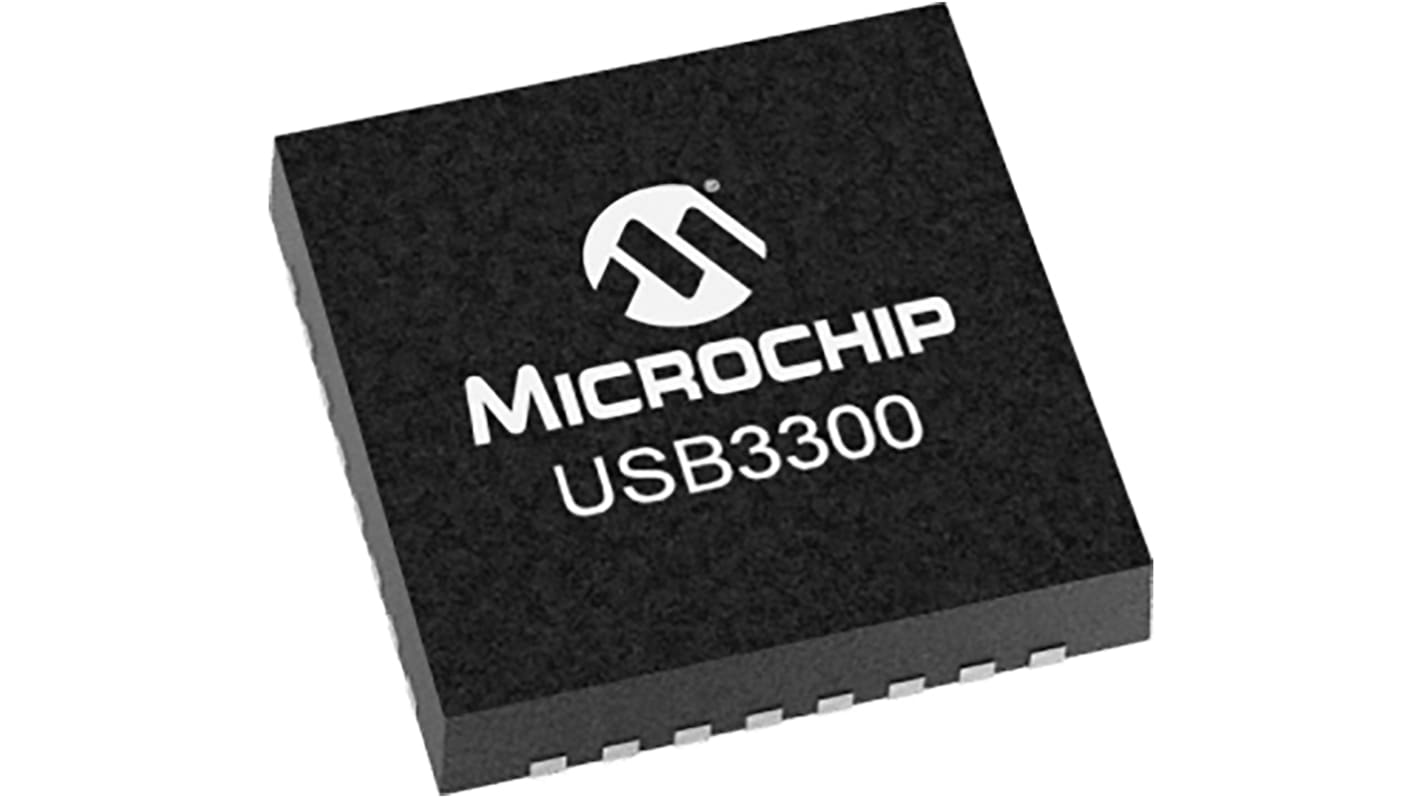

The USB3300 is an industrial temperature Hi-Speed USB Physical Layer Transceiver (PHY). The USB3300 uses a low pin count interface (ULPI) to connect to a ULPI compliant Link layer. The ULPI interface reduces the UTMI+ interface from 54 pins to 12 pins using a method of in-band signaling and status byte transfers between the Link and PHY. This PHY was designed from the start with the ULPI interface. No UTMI to ULPI wrappers are used in this design which provides a seamless ULPI to Link interface. The result is a PHY with a low latency transmit and receive time.

USB-IF Hi-Speed
Latch-Up performance exceeds 150 mA
ESD protection levels of ±8kV HBM without external protection devices
Includes full support for the optional On-The-Go (OTG) protocol
Supports the OTG Host Negotiation Protocol (HNP) and Session Request Protocol (SRP)
Allows host to turn VBUS off to conserve battery power in OTG applications
Internal 1.8 volt regulators allow operation from a single 3.3 volt supply
