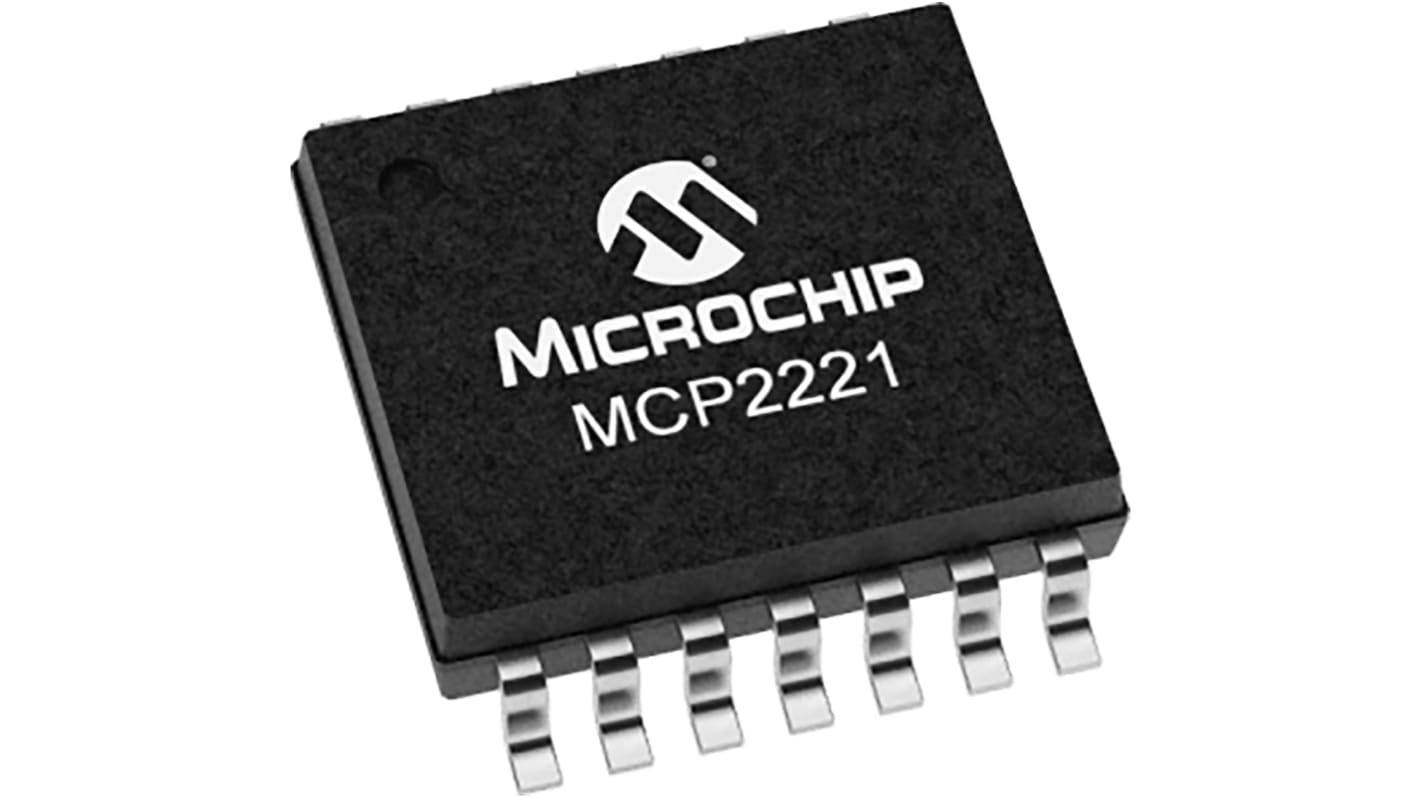

Microchip, USB Controller, 1-Channel 12 Mbps, 5.5 V, UART, I2C, 3 V, 14-Pin TSSOP
- RS Stock No.:
- 177-1906P
- Mfr. Part No.:
- MCP2221A-I/ST
- Brand:
- Microchip
Subtotal 5 units (supplied in a tube)*
£10.50
(exc. VAT)
£12.60
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 175 unit(s), ready to ship
Units | Per unit |
|---|---|
| 5 + | £2.10 |
*price indicative
- RS Stock No.:
- 177-1906P
- Mfr. Part No.:
- MCP2221A-I/ST
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Number of Transceivers | 1 | |
| Maximum Data Rate | 12Mbps | |
| Product Type | USB Controller | |
| Sub Type | Controller | |
| USB Specification | USB 2.0 | |
| Power Supply Type | Single | |
| ESD Protection | Yes | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 3V | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Supported Protocols | UART, I2C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 5mm | |
| Standards/Approvals | No | |
| Width | 4.4 mm | |
| Series | MCP2221A | |
| Height | 1.05mm | |
| Supply Current | 25mA | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Number of Transceivers 1 | ||
Maximum Data Rate 12Mbps | ||
Product Type USB Controller | ||
Sub Type Controller | ||
USB Specification USB 2.0 | ||
Power Supply Type Single | ||
ESD Protection Yes | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 3V | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Supported Protocols UART, I2C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 5mm | ||
Standards/Approvals No | ||
Width 4.4 mm | ||
Series MCP2221A | ||
Height 1.05mm | ||
Supply Current 25mA | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- US
The MCP2221 is a USB-to-UART/I2C serial converter which enables USB connectivity in applications that have a UART and I2C interfaces. The device reduces external components by integrating the USB termination resistors and the oscillator needed for USB operation. The MCP2221 also has four GP pins providing miscellaneous functionalities (GPIO, USBCFG, SSPND, Clock Output, ADC, DAC, interrupt detector).
Universal Serial Bus (USB)
Supports full-speed USB (12 Mb/s)
Implements USB protocol composite device: Communication Device Class (CDC) for
Communications and configuration
Human Interface Device (HID) for I2C™, chip control and configuration
128-byte Buffer to handle data throughput at any UART baud rate:
64-byte Transmit
64-byte Receive
Human Interface Device (HID) for both I2C™ communication and control.
64 byte buffer to handle data throughput at any I2C™ baud rate
Fully configurable VID and PID assignments, and string descriptors
Bus-powered or self-powered
USB 2.0 Compliant
