- RS Stock No.:
- 146-4429
- Mfr. Part No.:

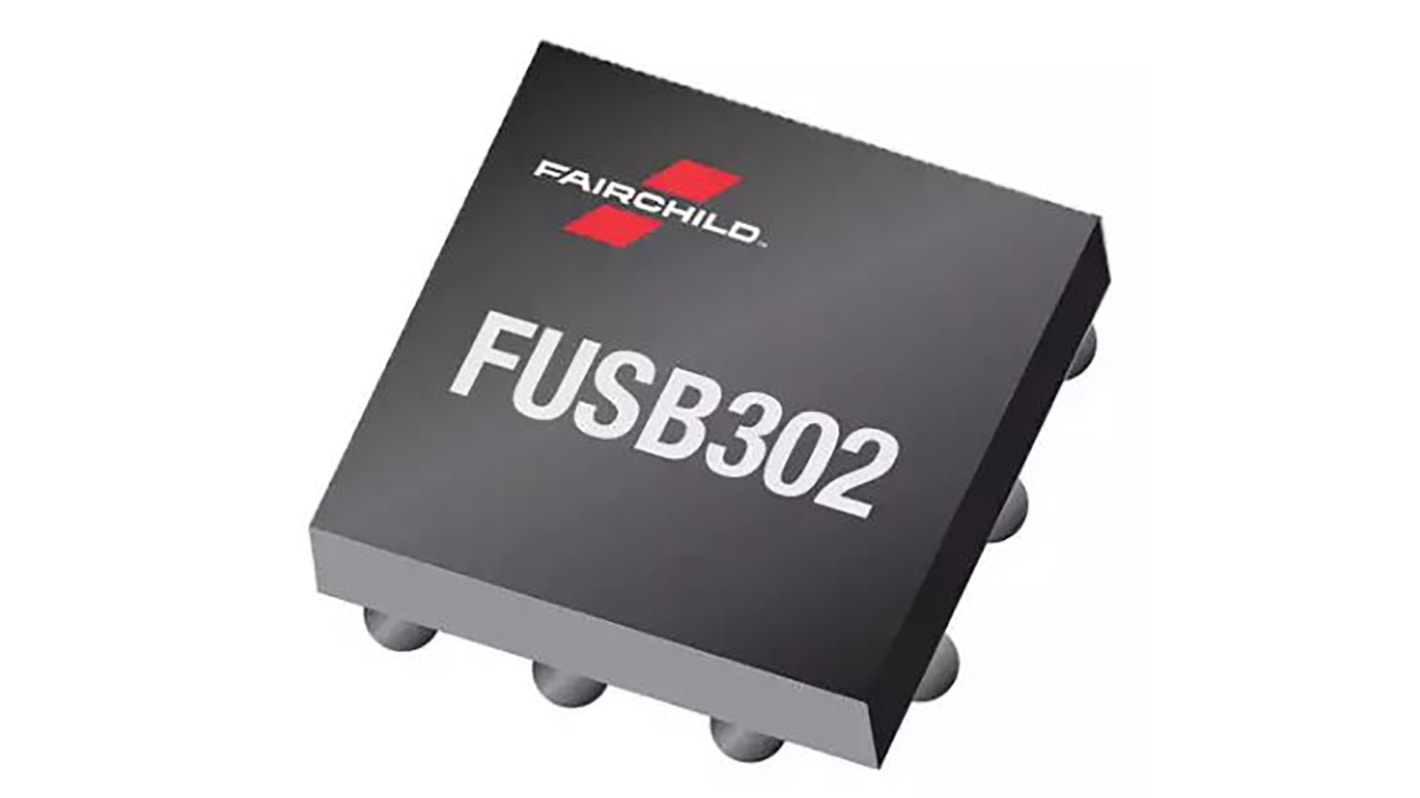

- FUSB302MPX
- Brand:
- onsemi
Available to back order for despatch 13/01/2025
Price Each (On a Reel of 3000)
£0.401
(exc. VAT)
£0.481
(inc. VAT)
Units | Per unit | Per Reel* |
3000 + | £0.401 | £1,203.00 |
*price indicative |
- RS Stock No.:
- 146-4429
- Mfr. Part No.:
- FUSB302MPX
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
The FUSB302 targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability.The FUSB302 enables the USB Type-C detection including attach, and orientation. The FUSB302 integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.
Current Capability Indication as Host
Current Capability Detection as Device
Audio Adapter Accessory Mode
Debug Accessory Mode
Active Cable Detection
Current Capability Detection as Device
Audio Adapter Accessory Mode
Debug Accessory Mode
Active Cable Detection
Specifications
Attribute | Value |
---|---|
Data Rate | 5Gbit/s |
IC Type | Controller IC |
Protocols Supported | USB |
Power Supply Type | Dual |
Typical Dual Supply Voltage | 3.3 V, 5V |
Mounting Type | Surface Mount |
Package Type | MLP |
Pin Count | 14 |
Dimensions | 2.5 x 2.5 x 0.725mm |
Height | 0.73mm |
Length | 2.5mm |
Maximum Operating Temperature | +85 °C |
Width | 2.5mm |
Minimum Operating Temperature | -40 °C |
