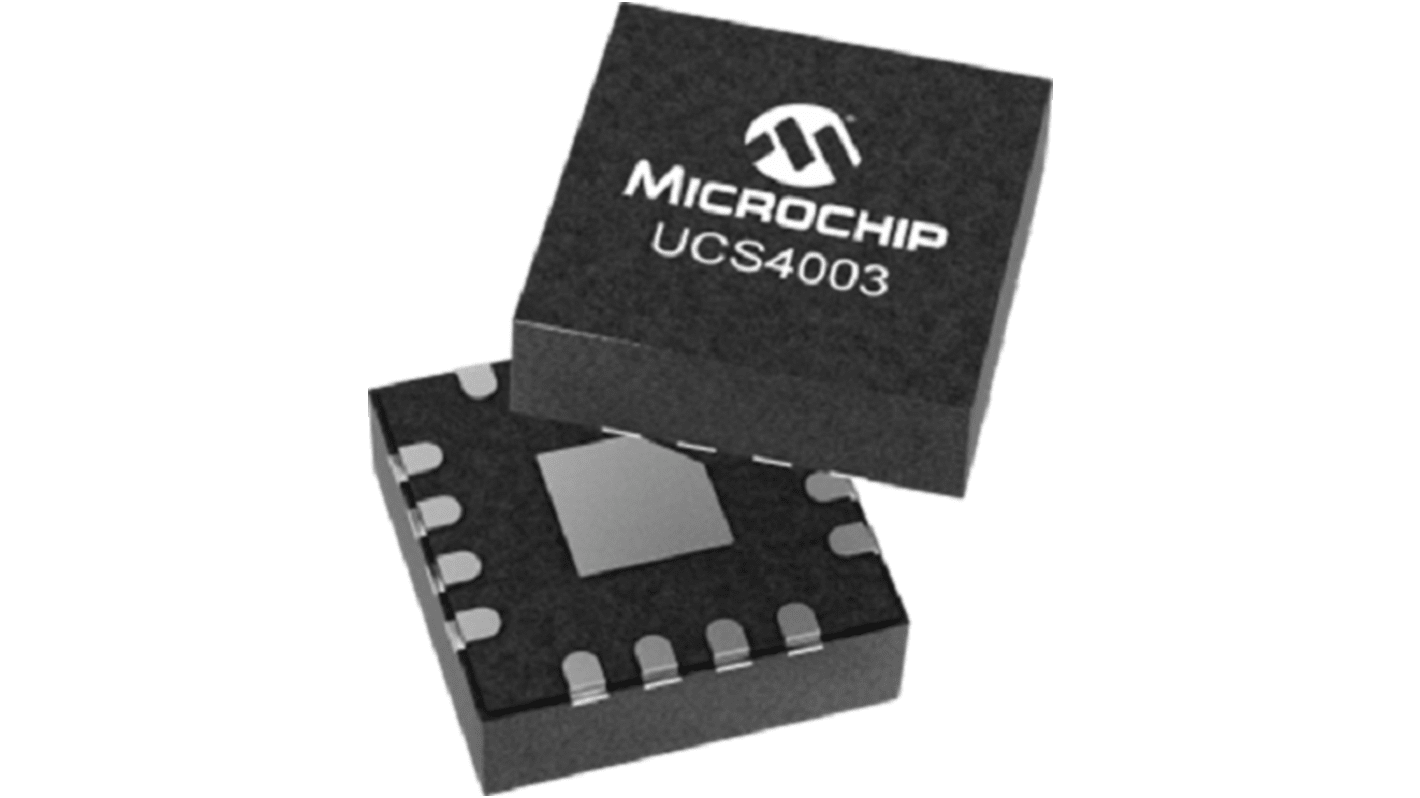

Microchip UCS4003-E/8N, USB Hub, USB C, 24 V DC, 16-Pin VQFN

View all USB Interface ICs
Stock information currently inaccessible
RS Stock No.:
352-300
Mfr. Part No.:
UCS4003-E/8N
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Protocols Supported

USB C

IC Type

USB Interface IC

Power Supply Type

Single

ESD Protection

Yes

Typical Single Supply Voltage

24 V DC

Package Type

VQFN

Pin Count

16

COO (Country of Origin):
TH
The Microchip USB Type-C port protector for Configuration Channel (CC), and D+, D- (data lines). The CC, D+, D-, and SG_SENS (short-to-GND) are ESD protected to meet IEC 61000-4-2. The UCS4003 provides short to Battery protection on D+, D-, and CC. It also provides battery short-to-GND protection for the charging port. Additionally, it is configurable to assert FAULT in case of any fault or in case of any fault except D+ or D- or CC Overvoltage.

Battery Short-to-GND Protection for Charging Port
FAULT Assertion Configurability
Over temperature Protection (Thermal Shutdown)
Temperature Range -40°C to +125°C
AEC-Q100 Automotive Qualified and See Product Identification System
