StarTech.com 2 Port USB Type B Adapter, USB Powered, 61.10 mm 12.40 mm 49.50mm

View all USB Hubs

Subtotal (1 unit)*

£44.98

(exc. VAT)

£53.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£44.98

*price indicative

RS Stock No.:
267-7837
Distrelec Article No.:
303-79-060
Mfr. Part No.:
MST14DP122DP
Brand:
StarTech.com
Find similar products by selecting one or more attributes.
Select all

Brand

StarTech.com

Product Type

Adapter

Number of USB Ports

2

USB Specification

USB Type B

Power Source

USB

Network Connection Type

USB

Standards/Approvals

No

Depth

61.10mm

Width

49.50mm

Height

12.40mm

COO (Country of Origin):
CN

StarTech Adapter, 49.5mm Width, 12.4mm Height - MST14DP122DP

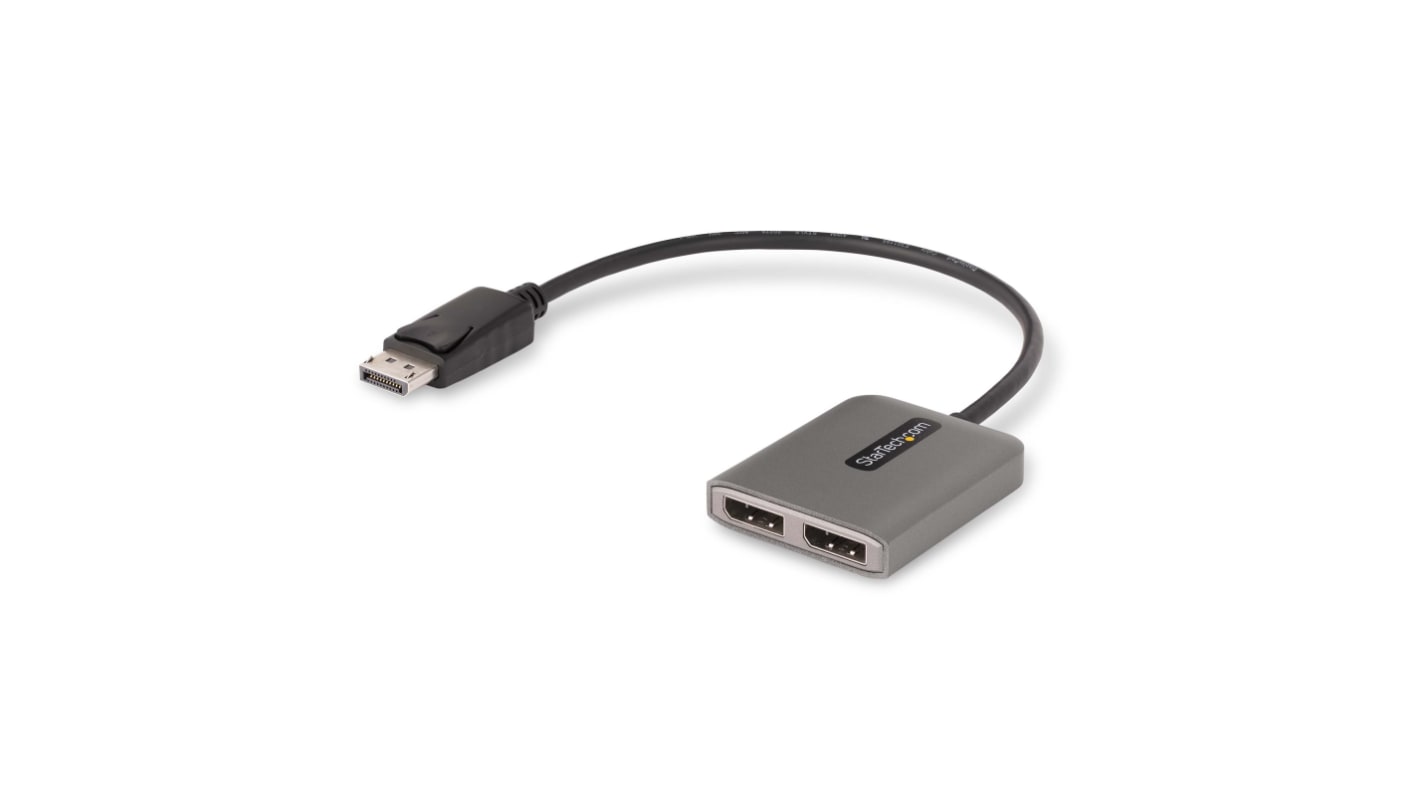

This adapter converts a single DisplayPort 1.4 output into two independent DisplayPort outputs using Multi-Stream Transport (MST) for Windows hosts. It is USB powered via a Micro-B lead and designed to expand a DisplayPort-enabled PC or laptop to dual displays with HDR capability and plug-and-play operation.

Features and Benefits:


• Drives two independent DisplayPort outputs for extended workflows
• Supports DisplayPort 1.4 bandwidth enabling high-resolution output
• USB-powered operation reduces host port load and complexity
• Built-in 30cm cable minimises port strain and increases placement options
• HDR support enhances contrast and colour for Visual tasks

Applications


• Suitable for configuring dual 4K60 extended workstations
• Ideal for video editing across two DisplayPort monitors
• Used with Windows PCs featuring DP 1.4 outputs and MST support
• Can be used for mirroring content to dual displays or projectors
• Useful when adding multiple displays without extra GPU outputs

Which operating systems are supported?


It functions only with Windows and does not support macOS, Chrome OS or Linux.

How is the unit powered and what cable is included?


It is USB powered and ships with a USB Micro-B power cable for 2.5W power only.

What host requirements affect achievable resolutions?


The host must support DP 1.4, HBR3 and MST and the GPU/processor must offer DSC through MST for certain high-resolution modes.

What chipset does the device use?


The hub uses a Synaptics VMM5220 chipset.

What environmental conditions apply to operation?


Operating temperature range is 0°C to 40°C with storage from -40°C to 70°C and humidity 5% to 90% RH (non‑condensing).
