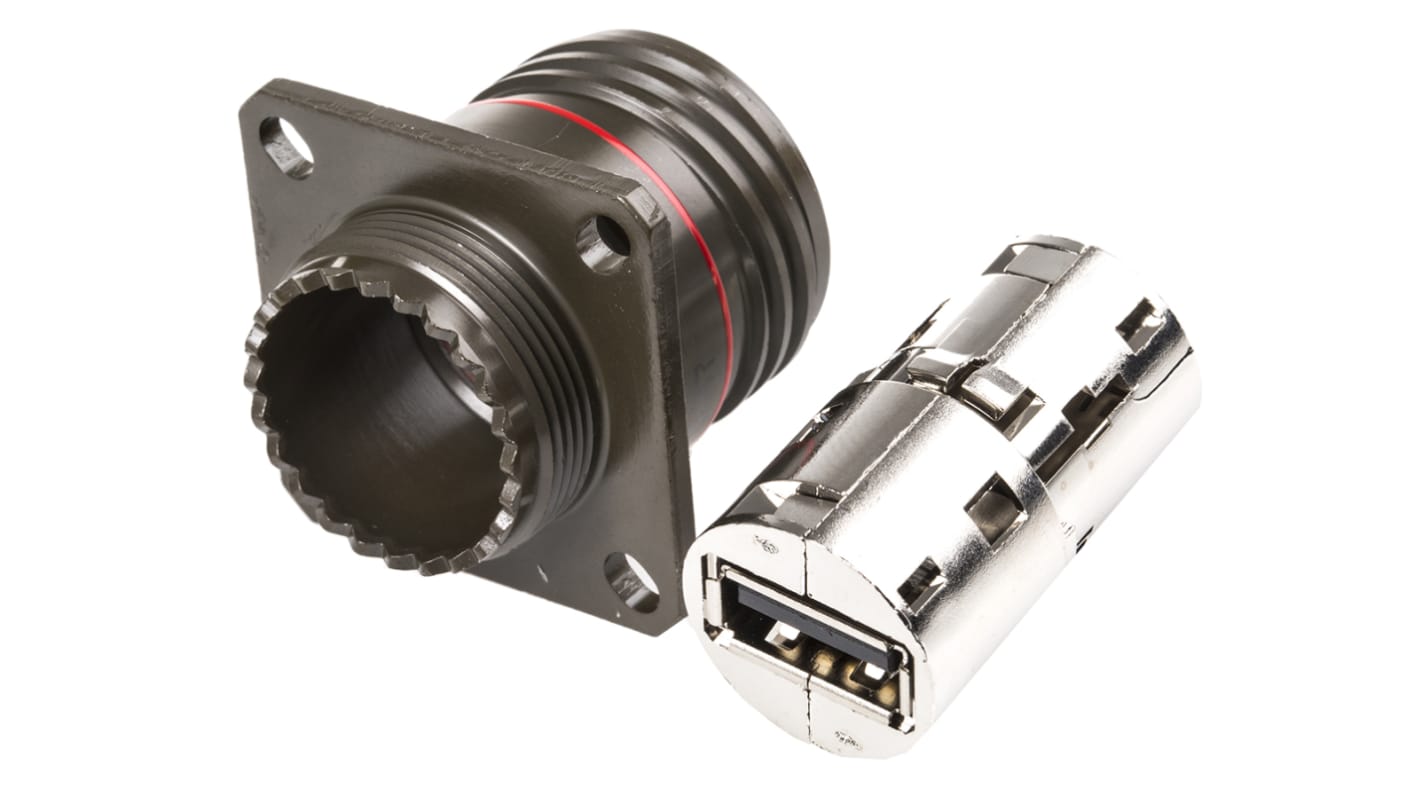

Amphenol Socapex Straight, Panel Mount, Socket- Single Port Type A 2.0 IP68 USB Connector
- RS Stock No.:
- 536-9562
- Distrelec Article No.:
- 302-25-372
- Mfr. Part No.:
- USBFTV21G
- Brand:
- Amphenol Socapex
Bulk discount available
Subtotal (1 unit)*
£53.68
(exc. VAT)
£64.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 15 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £53.68 |
10 - 24 | £52.18 |
25 - 49 | £50.78 |
50 - 99 | £49.44 |
100 + | £48.15 |
*price indicative
- RS Stock No.:
- 536-9562
- Distrelec Article No.:
- 302-25-372
- Mfr. Part No.:
- USBFTV21G
- Brand:
- Amphenol Socapex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Socapex | |
Gender | Female | |
Mounting Type | Panel Mount | |
USB Type | A | |
Termination Method | Female USB-A | |
USB Version | 2.0 | |
Body Orientation | Straight | |
IP Rating | IP68 | |
Number of Ports | 1 | |
Current Rating | 5.0A | |
Voltage Rating | 5.0 V | |
Series | USBFTV | |
Contact Material | Copper Alloy, Gold Plated | |
Minimum Operating Temperature | -40.0°C | |
Maximum Operating Temperature | +85°C | |
Orientation | A | |
Select all | ||
---|---|---|
Brand Amphenol Socapex | ||
Gender Female | ||
Mounting Type Panel Mount | ||
USB Type A | ||
Termination Method Female USB-A | ||
USB Version 2.0 | ||
Body Orientation Straight | ||
IP Rating IP68 | ||
Number of Ports 1 | ||
Current Rating 5.0A | ||
Voltage Rating 5.0 V | ||
Series USBFTV | ||
Contact Material Copper Alloy, Gold Plated | ||
Minimum Operating Temperature -40.0°C | ||
Maximum Operating Temperature +85°C | ||
Orientation A | ||
Non Compliant
- COO (Country of Origin):
- FR
USBF TV (USB A)
From Amphenol, this USB Field USB A receptacle is encased in an extremely robust metal housing that protects against shock and vibration. Achieving a rating of IP68 when mated, which ensures a high degree of protection against liquids and dust, this USB Type A receptacle is well suited to harsh environments.
Features and Benefits:
Sealed against fluids and dust
Shock, vibration and traction resistant
No cabling operation in field (no tools required)
Mechanical coding/polarization (2 positions)
Improved EMI protection
USB A receptacle
IP68 rating
Sealed against fluids and dust
Shock, vibration and traction resistant
No cabling operation in field (no tools required)
Mechanical coding/polarization (2 positions)
Improved EMI protection
USB A receptacle
IP68 rating
Amphenol Field
These USB Field and RJ Field reinforced Infocom Connectors allows use of a standard USB and RJ connection in harsh environments. Standard cordsets can be inserted into metallic plugs and receptacles which will protect them from shocks, dust and fluids. There is no requirement for hazardous in-field cabling and grounding.
