RS PRO Straight, Panel Mount, Socket- Single Port Type A 3.0 IP67 Type A USB Connector
- RS Stock No.:
- 231-7886
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£49.13
(exc. VAT)
£58.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 7 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £49.13 |
| 10 - 14 | £46.67 |
| 15 + | £42.94 |
*price indicative
- RS Stock No.:
- 231-7886
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Mounting Type | Panel Mount | |
| USB Type | A | |
| Termination Method | Socket | |
| USB Version | 3.0 | |
| IP Rating | IP67 | |
| Body Orientation | Straight | |
| Number of Ports | 1 | |
| Series | USB-A | |
| Minimum Operating Temperature | -40.0°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Mounting Type Panel Mount | ||
USB Type A | ||
Termination Method Socket | ||
USB Version 3.0 | ||
IP Rating IP67 | ||
Body Orientation Straight | ||
Number of Ports 1 | ||
Series USB-A | ||
Minimum Operating Temperature -40.0°C | ||
Maximum Operating Temperature +105°C | ||

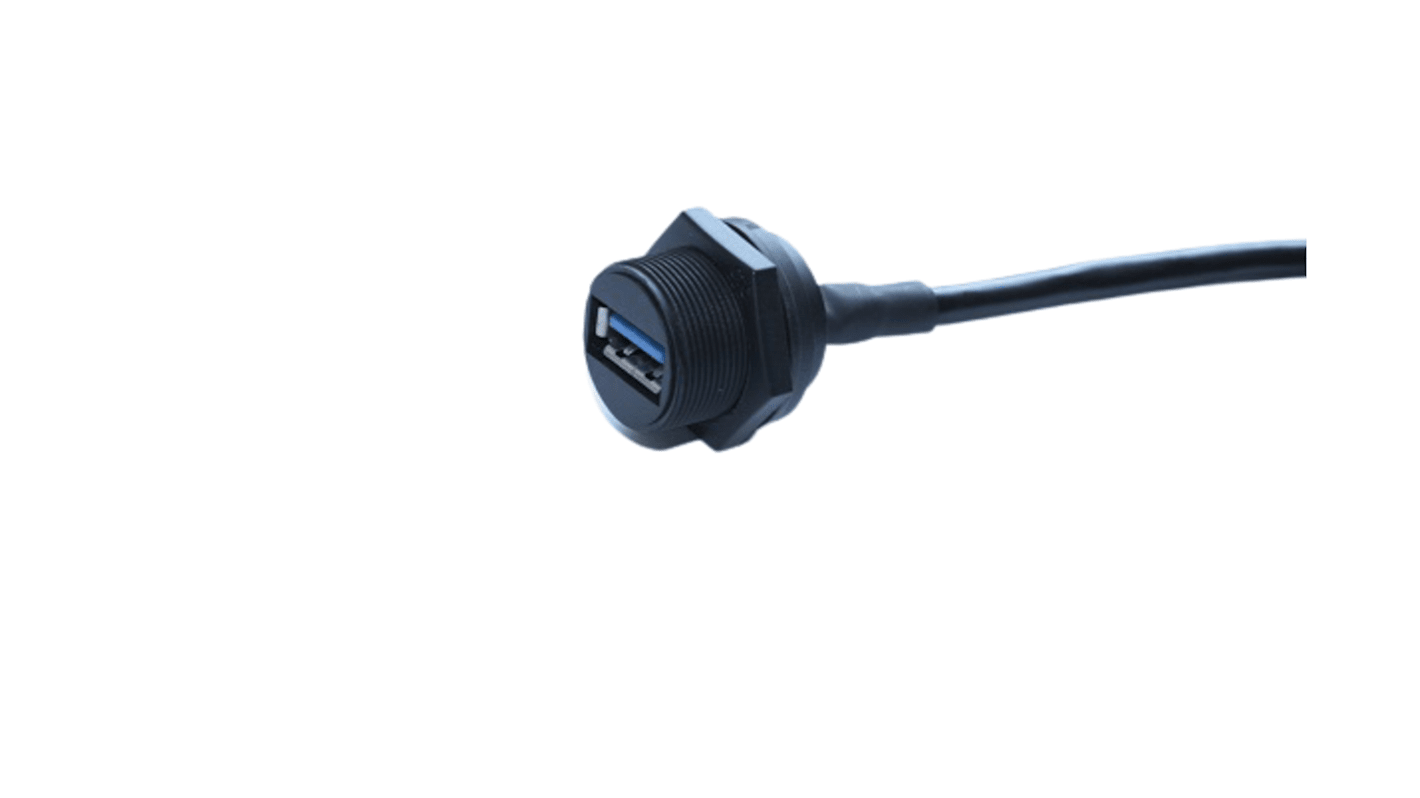

RS PRO, Straight, Panel Mount, Socket Type USB-A 3 IP67 Type A USB Connector
The RS PRO series of waterproof plastic USB Type A connectors are a range of ruggedised IP67 connectors designed to be used outdoors or in harsher industrial environments. Designed to fit panel cut outs of 20.75mm the plastic USB-A series also comes with rear potting on the panel mount connectors. This ensures your panel is still sealed to an IP67 rating even when the connector is unmated, and the sealing cap is not connected. The threaded mating allows for a secure connection while the Gold-plated contacts and USB Version 3.0 ensures 5Gbps data speeds.
Features and Benefits
- PA66 Housing
- IP67
- Rear-potted
- Threaded Mating
- USB-A 3.0
- Speeds up to 5Gbps RoHS Compliant
Applications
These RS PRO range of ruggedised IP67 connectors and are waterproof making them ideal for outside use and for harsher industrial environments. Applications can include:
Automotive
Wireless outdoor AP
Medical equipment
GPS
Industrial PC
Outdoor LED display
Military equipment
Automotive
Wireless outdoor AP
Medical equipment
GPS
Industrial PC
Outdoor LED display
Military equipment
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
