RS PRO Straight, Panel Female- 1 Port Type USB Type A IP68 USB Type A USB 3.0

View all USB Connectors
Bulk discount available

Subtotal (1 unit)*

£56.71

(exc. VAT)

£68.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 23 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£56.71
10 - 14£53.88
15 +£49.55

*price indicative

RS Stock No.:
231-7944
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

USB Type A

Mount Type

Panel

USB Type

USB Type A

USB Specification

USB 3.0

Orientation

Straight

Connector Gender

Female

IP Rating

IP68

Number of Ports

1

Termination Type

Cable

Minimum Operating Temperature

-40°C

Contact Material

Copper Alloy

Maximum Operating Temperature

105°C

Standards/Approvals

No

Hazardous Area Certification

NO

Series

USB Type A

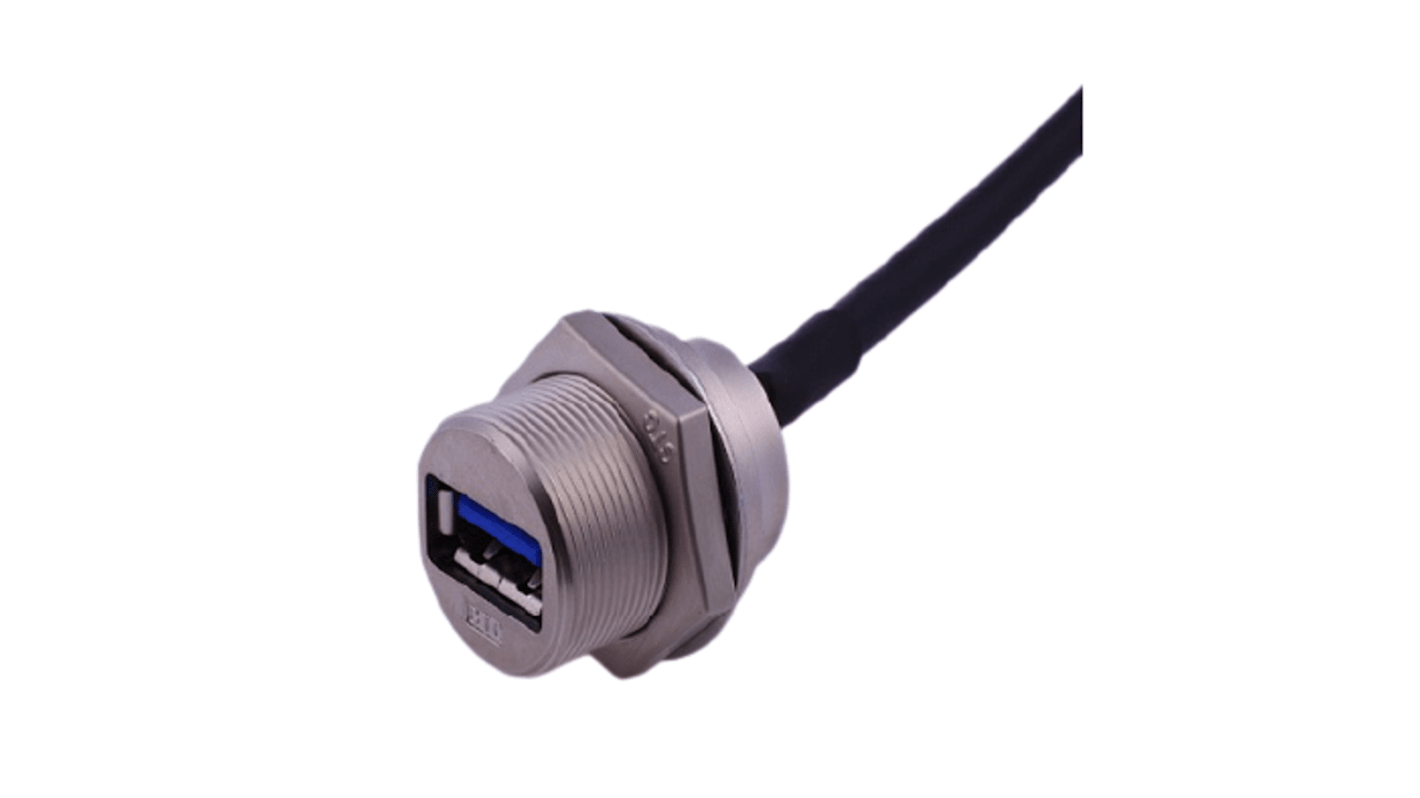

RS PRO, Straight, Panel Mount, Socket Type USB-A 3 IP68 Type A USB Connector


The RS PRO series of waterproof metal USB Type A connectors are a range of ruggedised IP68 connectors designed to be used outdoors or in harsher industrial environments. Designed to fit panel cut outs of 20.75mm the metal USB-A series also comes with rear potting on the panel mount connectors. This ensures your panel is still sealed to an IP68 rating even when the connector is unmated, and the sealing cap is not connected. The threaded mating allows for a secure connection while the Gold-plated contacts and USB Version 3.0 ensures 5Gbps data speeds.

Features and Benefits


  • Nickel Plated Zinc Alloy Housing

  • IP68

  • Rear-potted

  • Threaded Mating

  • USB-A 3.0

  • Speeds up to 5Gbps

  • RoHS Compliant

  • Cable length: 300mm

    • Applications


    These RS PRO range of ruggedised IP68 connectors and are waterproof making them ideal for outside use and for harsher industrial environments. Applications can include:

    Automotive

    Wireless outdoor AP

    Medical equipment

    GPS

    Industrial PC

    Outdoor LED display

    Military equipment
