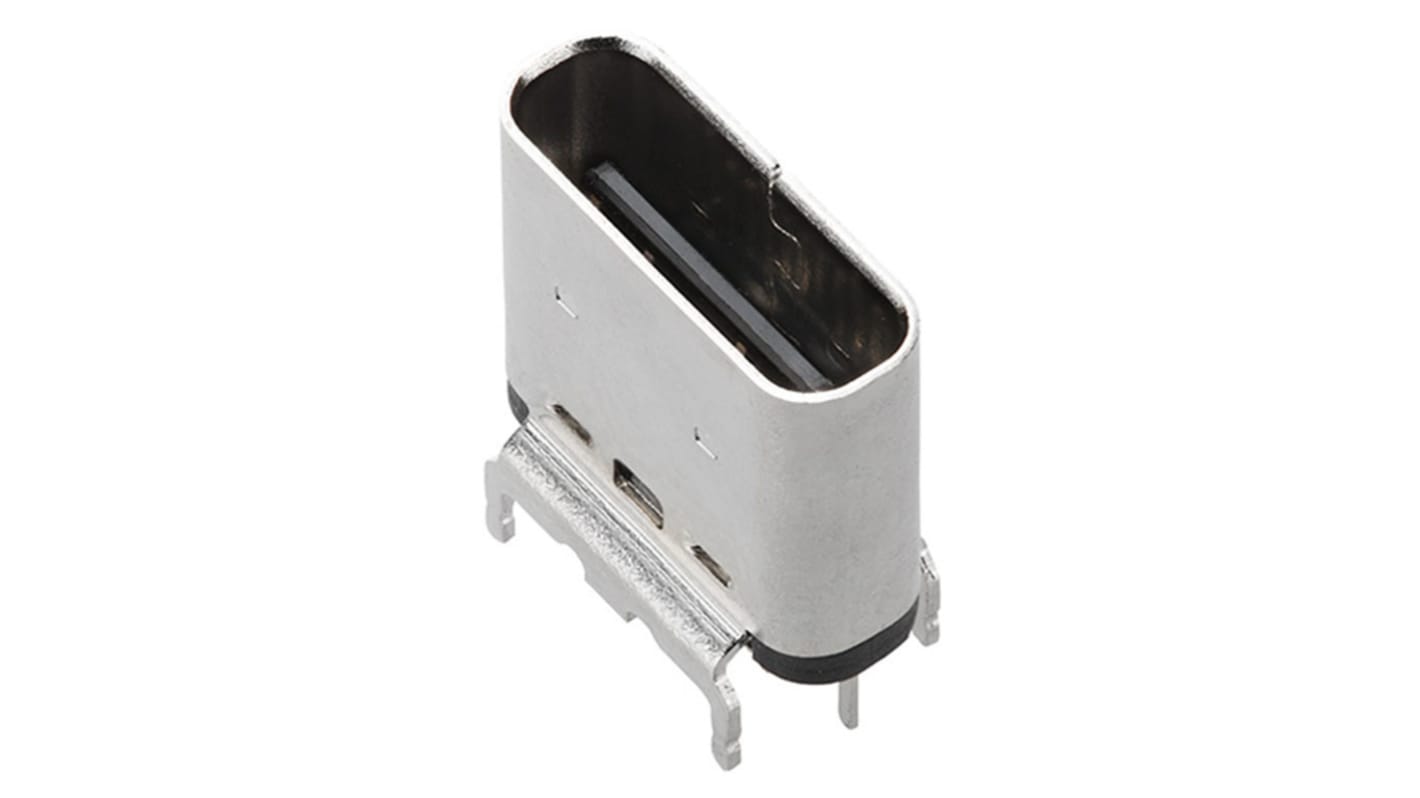

Molex Straight, SMT, Socket- Single Port Type C 3.1 USB Connector
- RS Stock No.:
- 196-8695
- Mfr. Part No.:
- 204711-0001
- Brand:
- Molex
Subtotal (1 reel of 550 units)*
£636.90
(exc. VAT)
£764.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,500 unit(s) ready to ship
- Plus 999,994,050 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 550 + | £1.158 | £636.90 |
*price indicative
- RS Stock No.:
- 196-8695
- Mfr. Part No.:
- 204711-0001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| USB Type | C | |
| Mounting Type | Surface Mount | |
| Termination Method | Surface Mount | |
| USB Version | 3.1 | |
| Body Orientation | Straight | |
| Number of Ports | 1 | |
| Current Rating | 5A | |
| Voltage Rating | 30.0 V | |
| Series | USB Products and Solutions | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -30.0°C | |
| Maximum Operating Temperature | +85°C | |
| Orientation | Vertical | |
| Series Number | 204711 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
USB Type C | ||
Mounting Type Surface Mount | ||
Termination Method Surface Mount | ||
USB Version 3.1 | ||
Body Orientation Straight | ||
Number of Ports 1 | ||
Current Rating 5A | ||
Voltage Rating 30.0 V | ||
Series USB Products and Solutions | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -30.0°C | ||
Maximum Operating Temperature +85°C | ||
Orientation Vertical | ||
Series Number 204711 | ||
- COO (Country of Origin):
- CN
Molex USB Connector, 30V, Surface Mount - 204711-0001
This USB Type C connector is designed for industrial applications with surface mount capabilities and supports USB version 3.1. It features a straight body orientation and is rated for 30.0V, operating efficiently between -30°C and +85°C. Constructed from durable copper alloy, it ensures reliable performance in diverse environments.
Features & Benefits
• High current rating of 5A for powerful connections
• Surface mount design for easy PCB integration
• Vertical orientation for compact space requirements
• Durable construction withstands harsh conditions
• Designed for 10,000 mating cycles for long-term reliability
• Full shielding reduces signal interference
• Surface mount design for easy PCB integration
• Vertical orientation for compact space requirements
• Durable construction withstands harsh conditions
• Designed for 10,000 mating cycles for long-term reliability
• Full shielding reduces signal interference
Applications
• Connecting devices in automated systems
• Electronic interfaces requiring USB Type C
• Electrical and mechanical equipment
• Wire-to-board configurations
• Electronic interfaces requiring USB Type C
• Electrical and mechanical equipment
• Wire-to-board configurations
Can it be used in high-temperature environments?
Yes, it operates effectively from -30°C to +85°C.
Is it compliant with industrial standards?
Yes, it meets multiple compliance requirements including EU RoHS.
Can the connector be mounted vertically?
Yes, it is specifically designed for vertical mounting.
