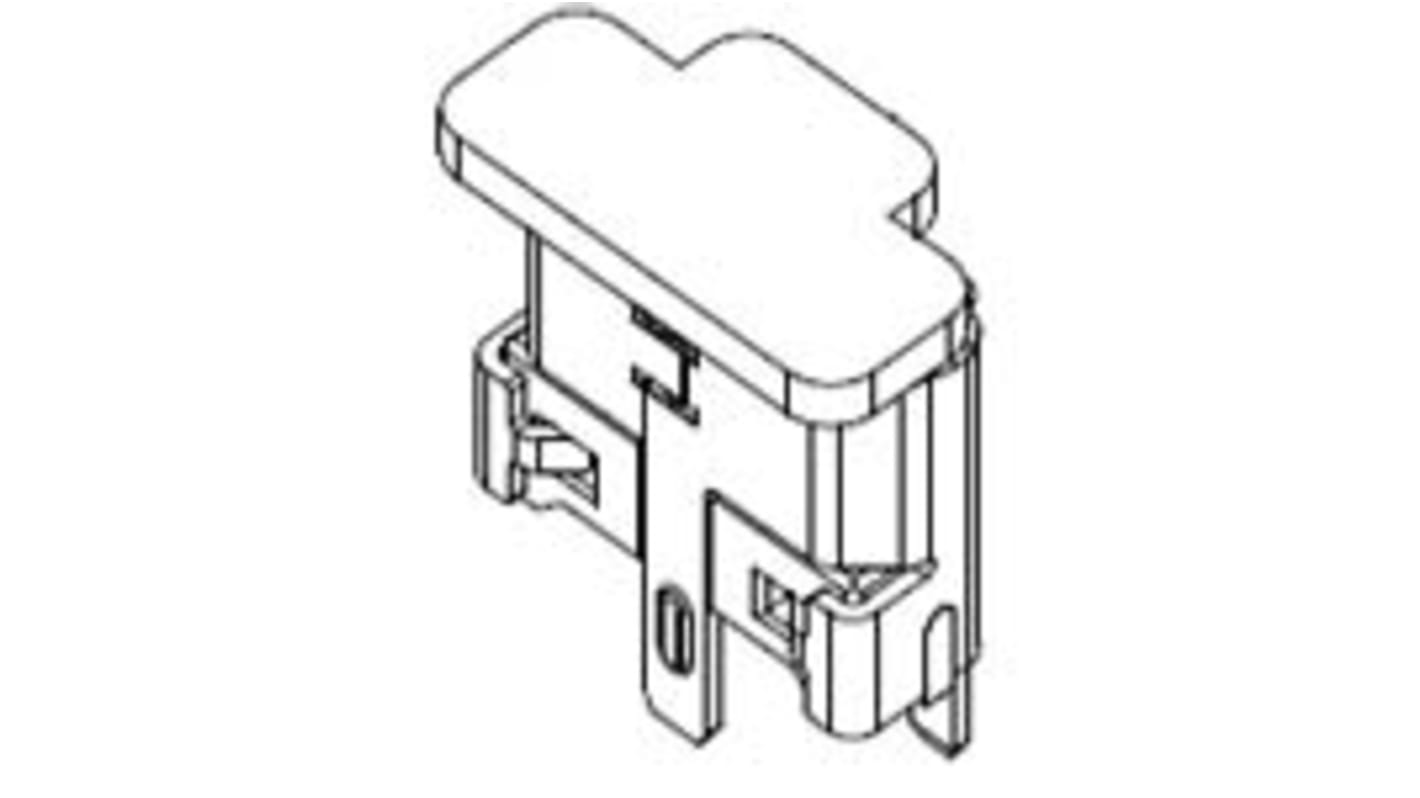

Molex Straight, SMT, Socket- Single Port Type Micro B 2.0 USB Connector

RS Stock No.:: 151-2711
Mfr. Part No.:: 1051330001
Brand:: Molex

Molex Straight, SMT, Socket- Single Port Type Micro B 2.0 USB Connector

Bulk discount available

Subtotal (1 unit)*

£1.06

(exc. VAT)

£1.27

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

71 unit(s) ready to ship
Plus 8 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£1.06
10 - 24	£1.01
25 - 49	£0.96
50 - 99	£0.91
100 +	£0.85

*price indicative

RS Stock No.:: 151-2711
Mfr. Part No.:: 1051330001
Brand:: Molex

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	Mounting Type	Surface Mount
	USB Type	Micro B
	Termination Method	Solder
	USB Version	2.0
	Body Orientation	Straight
	Number of Ports	1
	Current Rating	1.8A
	Voltage Rating	30.0 V
	Series	105133
	Contact Material	Copper Alloy
	Minimum Operating Temperature	-30.0°C
	Maximum Operating Temperature	+85°C
	Orientation	Vertical
	Series Number	105133

	Select all
	Brand Molex
	Gender Female
	Mounting Type Surface Mount
	USB Type Micro B
	Termination Method Solder
	USB Version 2.0
	Body Orientation Straight
	Number of Ports 1
	Current Rating 1.8A
	Voltage Rating 30.0 V
	Series 105133
	Contact Material Copper Alloy
	Minimum Operating Temperature -30.0°C
	Maximum Operating Temperature +85°C
	Orientation Vertical
	Series Number 105133

Molex 105133 Series USB Connector, 1 Port, 1.8A Current Rating - 1051330001

This USB Connector is a micro USB B receptacle designed for surface mount applications. Offering a vertical orientation, this durable connector measures 2.30mm and is compatible with USB 2.0 specifications. It ensures reliable performance across a temperature range of -30°C to +85°C, making it suitable for various environments.

Features & Benefits

• Female USB Connector type for easy connection
• Surface Mount design optimises PCB space
• High-Current USB Connector supports up to 1.8A
• Solder Termination ensures a secure connection
• Compliant with RoHS for environmentally-friendly use
• Durable construction rated for up to 10,000 mating cycles

Applications

• Ideal for automation equipment requiring compact connectivity
• Used for connecting power supplies in electronic devices
• Suitable for industrial settings where robustness is essential
• Utilised in wire-to-board for efficient data transfer

What is the maximum voltage rating for this connector?

The maximum voltage rating for the connector is 30V AC (RMS), which allows for versatility in various electrical applications.

How does the orientation of the connector aid in installation?

The vertical orientation facilitates straightforward installation in tight spaces, ensuring efficient use of available PCB space while maintaining ease of access.

What are the critical material properties of this connector?

The connector's body comprises a high-temperature thermoplastic resin, while the contacts are made of copper alloy, ensuring durability and excellent conductivity for reliable performance.

How many circuits can this connector accommodate?

This connector is designed to support five circuits, making it effective for various signalling and power needs in electronic designs.

Can this connector withstand high-temperature soldering processes?

Yes, it has been tested for lead-free reflow soldering, with a maximum process temperature of 260°C, ensuring compatibility with standard manufacturing practices.
