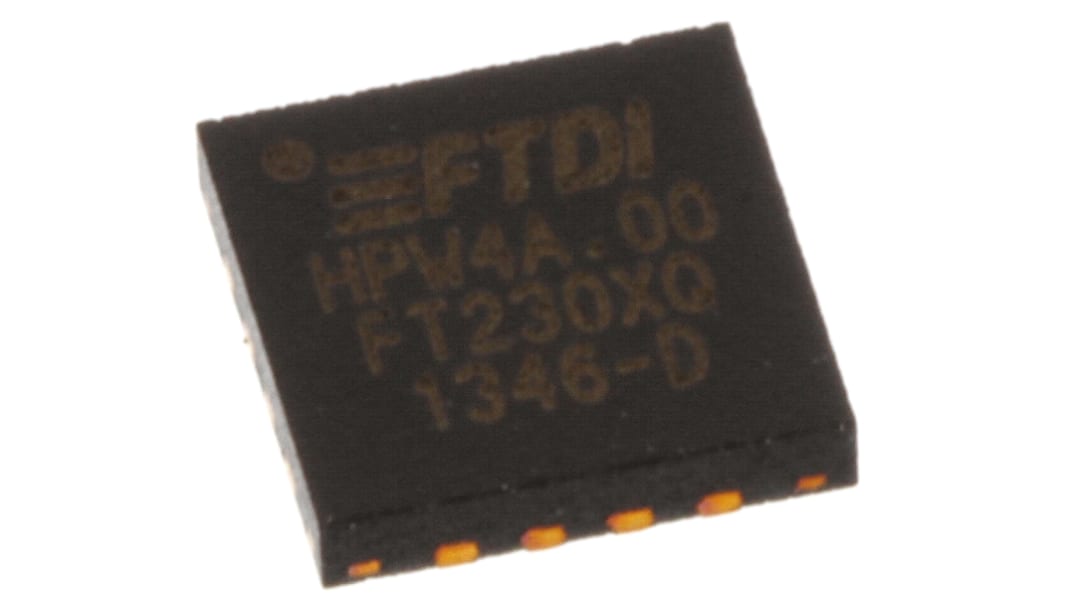

FTDI Chip UART RS232, RS422, RS485, SIE, UART 16-Pin QFN, FT230XQ-R
- RS Stock No.:
- 757-0026
- Mfr. Part No.:
- FT230XQ-R
- Brand:
- FTDI Chip
8 In stock - FREE next working day delivery available
16 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 2)
£1.81
(exc. VAT)
£2.17
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £1.81 | £3.62 |
| 10 - 38 | £1.60 | £3.20 |
| 40 - 98 | £1.50 | £3.00 |
| 100 - 198 | £1.46 | £2.92 |
| 200 + | £1.425 | £2.85 |
| *price indicative | ||
- RS Stock No.:
- 757-0026
- Mfr. Part No.:
- FT230XQ-R
- Brand:
- FTDI Chip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
FT230X, FT231X, FT234XD - Full Speed USB to UART, FTDI Chip
The FTDI Chip FT230X and FT234XD are Ful Speed USB to basic serial UART interface devices. The FT231X is a Full Speed USB to Full Handshake UART interface.
They have a fully integrated MTP memory and an integrated clock circuit which requires no external crystal which helps to reduce external component count.
Capable of operating up to 3 MBaud, with low power consumption (8 mA), all USB to UART devices operate efficiently with USB host controllers. They use as little bandwidth as possible.
The FT230X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.
They have a fully integrated MTP memory and an integrated clock circuit which requires no external crystal which helps to reduce external component count.
Capable of operating up to 3 MBaud, with low power consumption (8 mA), all USB to UART devices operate efficiently with USB host controllers. They use as little bandwidth as possible.
The FT230X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.
- Fully integrated MTP memory, clock generation, AVCC filtering, Power-On Reset (POR) and LDO regulators.
- Configurable CBUS I/O Pin Options.
- Asynchronous and Synchronous Bit Bang Modes.
- Operates at between +3.3 V and +5.25 V. A nominal operational mode current of 8 mA and a nominal USB suspend mode current of 125 μA.
- Configurable CBUS I/O Pin Options.
- Asynchronous and Synchronous Bit Bang Modes.
- Operates at between +3.3 V and +5.25 V. A nominal operational mode current of 8 mA and a nominal USB suspend mode current of 125 μA.
Specifications
Attribute | Value |
|---|---|
| Number of Channels per Chip | 1 |
| Standard Supported | RS232, RS422, RS485, SIE, UART |
| Transmit FIFO | 512B |
| Receive FIFO | 512B |
| Maximum Data Rate | 3MBd |
| Transmitter and Receiver FIFO Counter | Yes |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 16 |
| Typical Operating Supply Voltage | 5 V |
| Dimensions | 4 x 4 x 0.75mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
