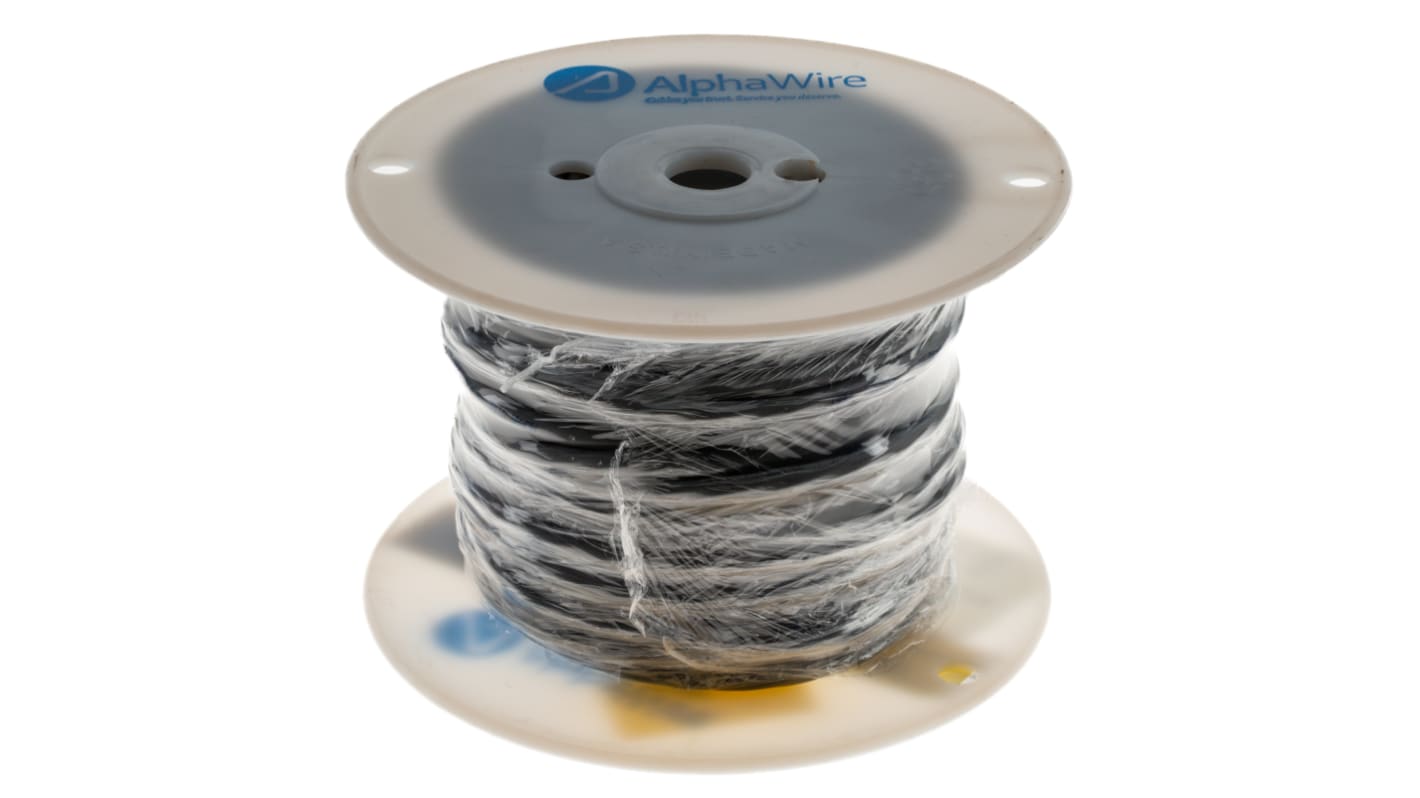

Alpha Wire Alpha Essentials Communication & Control Series Control Cable, 4 Cores, 0.56 mm², Unscreened, 20 AWG, 30m,

View this category

Subtotal (1 reel of 30 metres)*

£71.06

(exc. VAT)

£85.27

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 33 unit(s) ready to ship
  • Plus 14 unit(s) ready to ship from another location
  • Plus 12 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£71.06£2.369

*price indicative

RS Stock No.:
828-2310
Distrelec Article No.:
304-01-640
Mfr. Part No.:
1896/4C SL005
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Cross Sectional Area

0.56 mm²

Number of Cores

4

American Wire Gauge

20 AWG

Screened/Unscreened

Unscreened

Length

30m

Shield Type

Tinned Copper

Sheath Colour

Grey

Outer Diameter

5.31mm

Outer Sheath Material

PVC

Maximum Operating Temperature

+80°C

Series

Alpha Essentials Communication & Control

Core Strands

7/0.32 mm

Fire Behaviour

Halogen Free

Voltage Rating

300 V

Minimum Operating Temperature

-20°C

Standards Met

CE, CSA, UL

RoHS Status: Exempt

Belden Alpha Wire Unscreened Control Cable, 0.56mm² CSA, 30m Length - Alpha Essentials Series - 1896/4C SL005


Use this cable from Belden's Alpha Wire range to ensure effective communication between devices in your workplace. To achieve a strong and reliable connection, it has tinned-copper conductors with low electrical resistance. Its wires are twisted together in pairs to prevent crosstalk and EMI (electromagnetic interference), giving you clear and noiseless signals. A PVC jacket offers resistance to both impact and abrasion, making this cable suitable for use in harsh environments. It's also insulating, so protects you from the risk of electric shocks.

Features & Benefits


• Conductor-to-conductor capacitance of 33pF/ft for strong and effective signals
• Length of 30m can be used in a long run or cut to size for smaller jobs
• Broad operating temperature range of -30°C to +80°C for use in harsh conditions
• Current rating of 1.5A per conductor for energy efficiency and low heat dissipation
• Bulk cable weight of 36kg/km for easy handling

Applications


• Serial (RS 232) devices
• PLCs (programmable logic controllers)
• Radio and TV broadcast equipment

What's the voltage rating of this cable?


This cable has a voltage rating of 300V, meaning it's suitable for low-power systems.
