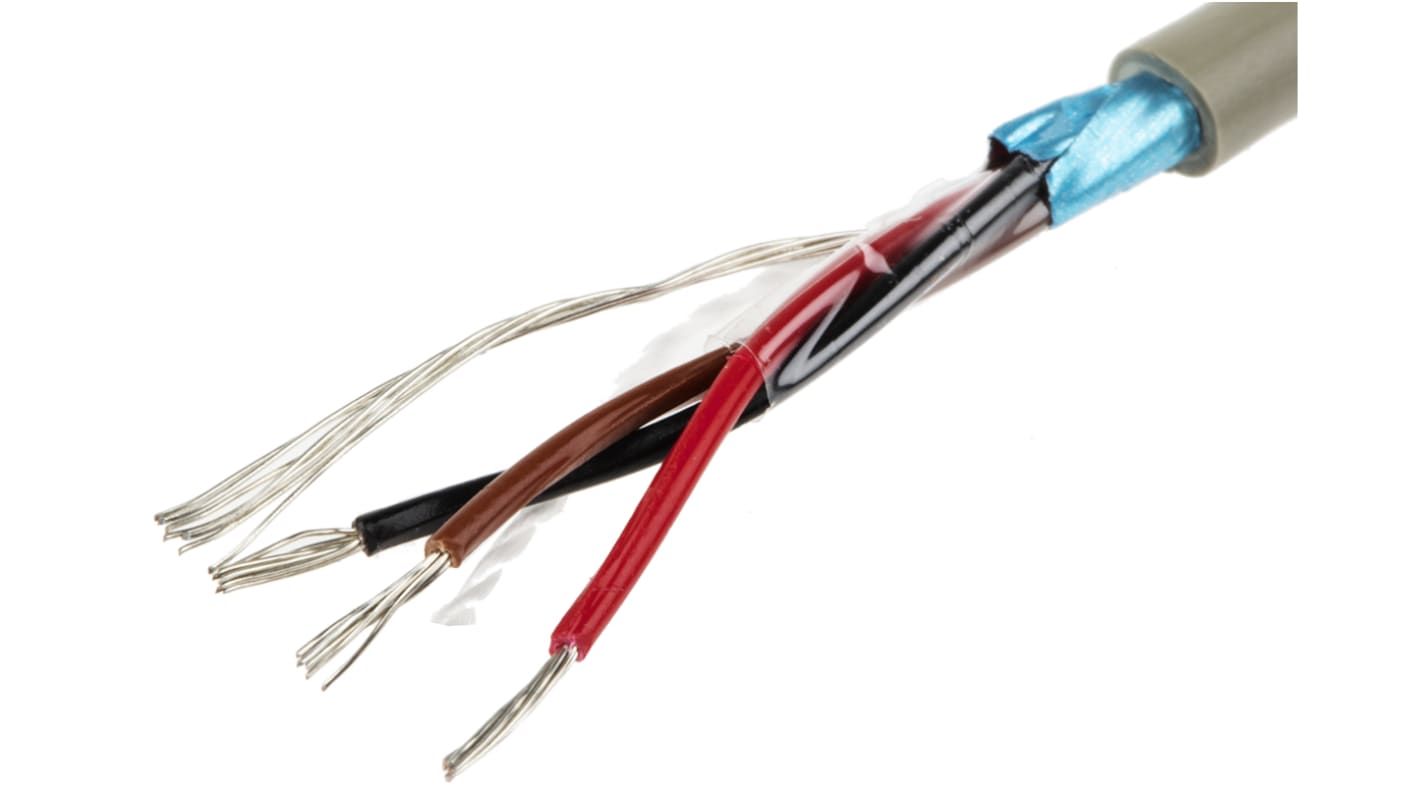

Alpha Wire ProTekt Series Data Cable, 3 Cores, 0.09 mm², Screened, 28 AWG, 50m, Screened Shield
- RS Stock No.:
- 740-4535
- Mfr. Part No.:
- B951032 GE321
- Brand:
- Alpha Wire
Subtotal (1 reel of 50 metres)*
£297.66
(exc. VAT)
£357.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 5 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £297.66 | £5.953 |
*price indicative
- RS Stock No.:
- 740-4535
- Mfr. Part No.:
- B951032 GE321
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Cross Sectional Area | 0.09 mm² | |
Number of Cores | 3 | |
American Wire Gauge | 28 AWG | |
Screened/Unscreened | Screened | |
Length | 50m | |
Shield Type | Foil | |
Sheath Colour | Grey | |
Outer Diameter | 3.73mm | |
Outer Sheath Material | PVC | |
Cable Shape | Multicore | |
Core Strands | 7/0.127 mm | |
Series | ProTekt | |
Voltage Rating | 300 V | |
Maximum Operating Temperature | +105°C | |
Shielded/Unshielded | Shielded | |
Minimum Operating Temperature | -30°C | |
Fire Behaviour | Flame Retardant | |
Standards Met | CE, CSA Certified, UL | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.09 mm² | ||
Number of Cores 3 | ||
American Wire Gauge 28 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type Foil | ||
Sheath Colour Grey | ||
Outer Diameter 3.73mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Core Strands 7/0.127 mm | ||
Series ProTekt | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Shielded/Unshielded Shielded | ||
Minimum Operating Temperature -30°C | ||
Fire Behaviour Flame Retardant | ||
Standards Met CE, CSA Certified, UL | ||
Belden ProTekt Series Data Cable, 0.09mm² Cross Sectional Area, 3 Cores - B951032 GE321
This data cable is a reliable solution for various automation and electrical needs. With a length of 50m and a multicore structure, this 28 AWG cable features three cores, ensuring efficient data transmission. It is designed with a PVC cable sheath that provides durability and protection, an essential aspect for long-term use in various environments.
Features & Benefits
• Screened design minimises interference for stable signal integrity
• Flame retardant properties enhance safety in installations
• 300V voltage rating ensures versatility across applications
• Foil shield construction offers superior protection from external noise
• High-temperature resilience supports use in demanding conditions
• CE, CSA, and UL certified for compliance with industry standards
• Flame retardant properties enhance safety in installations
• 300V voltage rating ensures versatility across applications
• Foil shield construction offers superior protection from external noise
• High-temperature resilience supports use in demanding conditions
• CE, CSA, and UL certified for compliance with industry standards
Applications
• Used for connecting automation equipment in industrial settings
• Ideal for requiring reliable signal transmission
• Utilised in electrical systems where safety and performance are essential
• Suitable for various networking solutions in commercial environments
• Ideal for requiring reliable signal transmission
• Utilised in electrical systems where safety and performance are essential
• Suitable for various networking solutions in commercial environments
What is the maximum operating temperature for this cable?
The cable can operate safely at temperatures up to +105°C, making it suitable for high-temperature environments and applications.
How does the cables screened design benefit data transmission?
The screened design reduces electromagnetic interference, providing a more stable and reliable signal, which is critical for data integrity in sensitive applications.
What certifications does this cable have for safety and compliance?
It is CE, CSA, and UL certified, ensuring it meets industry standards for safety and quality across various electrical applications.
Can it be used in outdoor installations?
While it is constructed for durability and flame resistance, it is recommended to check specific environmental conditions for suitable usage in outdoor settings.
How does the foil shield construction contribute to performance?
The foil shield effectively protects the cable from external noise and interference, helping to maintain a clear and consistent data signal essential for reliable operation.
