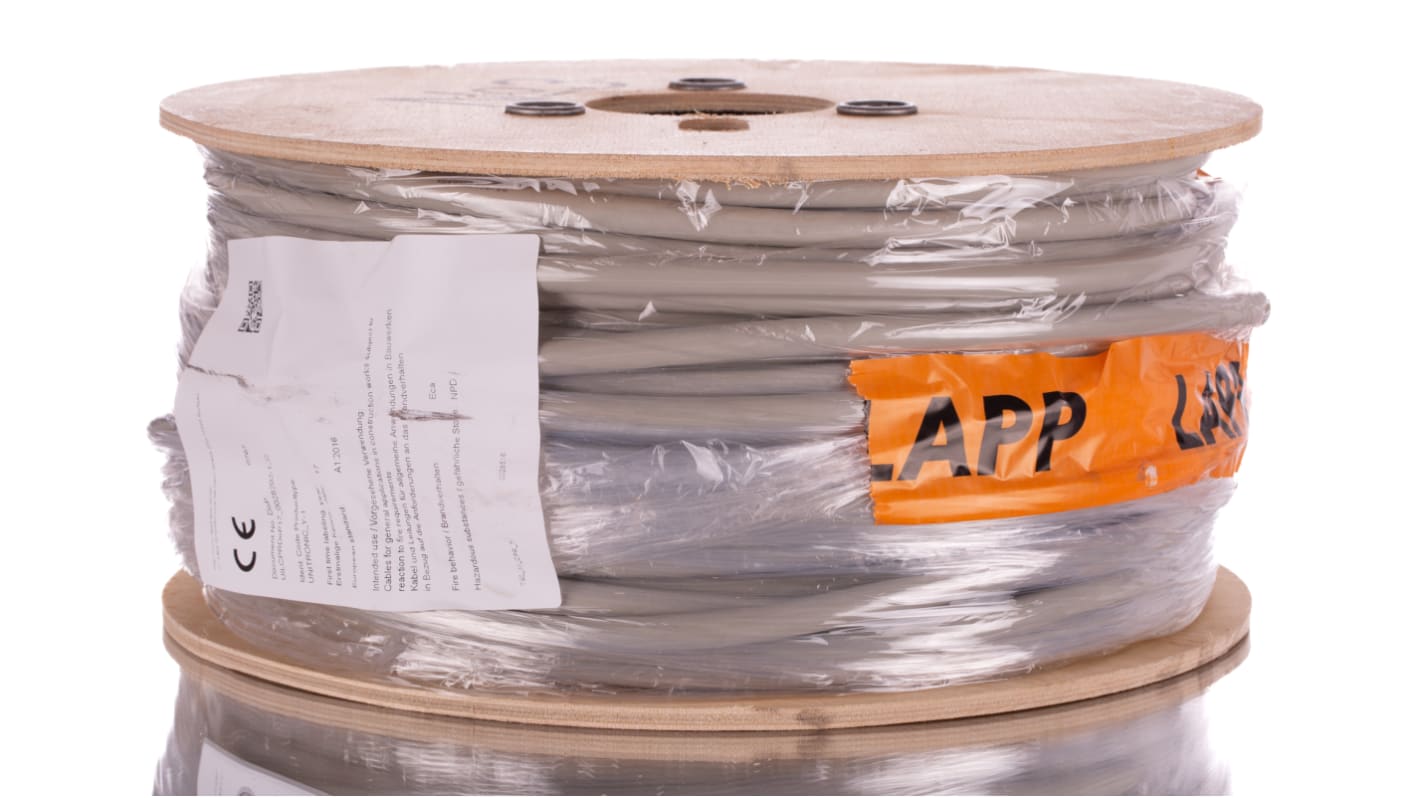

Lapp UNITRONIC LiYY Series Data Cable 16 Pairs 16 Cores 0.5 mm² 100 m Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 491-8933
- Distrelec Article No.:
- 304-01-034
- Mfr. Part No.:
- 0028516
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£483.47
(exc. VAT)
£580.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £483.47 | £4.835 |
*price indicative
- RS Stock No.:
- 491-8933
- Distrelec Article No.:
- 304-01-034
- Mfr. Part No.:
- 0028516
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Data Cable | |
| Number of Pairs | 16 | |
| Cross Sectional Area | 0.5mm² | |
| Number of Cores | 16 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 10.2mm | |
| Conductor Type | Extra Fine | |
| Minimum Operating Temperature | -40°C | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE | |
| Conductor Material | Bare Copper | |
| Series | UNITRONIC LiYY | |
| Voltage | 500V | |
| Number of Strands | 16 | |
| Core Strands | 16 x 200 μm | |
| Size of Strands | 200μm | |
| Fire Behaviour | Flame Retardant | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Data Cable | ||
Number of Pairs 16 | ||
Cross Sectional Area 0.5mm² | ||
Number of Cores 16 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 10.2mm | ||
Conductor Type Extra Fine | ||
Minimum Operating Temperature -40°C | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE | ||
Conductor Material Bare Copper | ||
Series UNITRONIC LiYY | ||
Voltage 500V | ||
Number of Strands 16 | ||
Core Strands 16 x 200 μm | ||
Size of Strands 200μm | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 16 Cores, 0.5mm² Conductor Cross Section - UNITRONIC Series - 0028516
Need to measure or regulate transmissions across your system? Choose this control cable from LAPP to support reliable performance between a transmitter and receiver. As it has stranded conductor cores, it's flexible enough to fit in awkward areas of your setup. Internal conductive copper wires form effective electrical connections to give you reliable data transfer. Thanks to its hard-wearing PVC sheath, the cable resists damage from flame, oils and friction to protect your data in demanding conditions.
Features & Benefits
• 10.2mm outer diameter for connections in tight spaces
• Non-wicking filler material resists moisture to prevent corrosion
• Colour-coded conductors for fast wiring
• 100m reel for long runs or multiple jobs
Applications
• Data buses
• Processing plants
• Manufacturing industry
Can I use this control cable in applications with high EMI levels?
This cable isn't shielded against EMI, so extra protection would be needed in areas where it's an issue.
