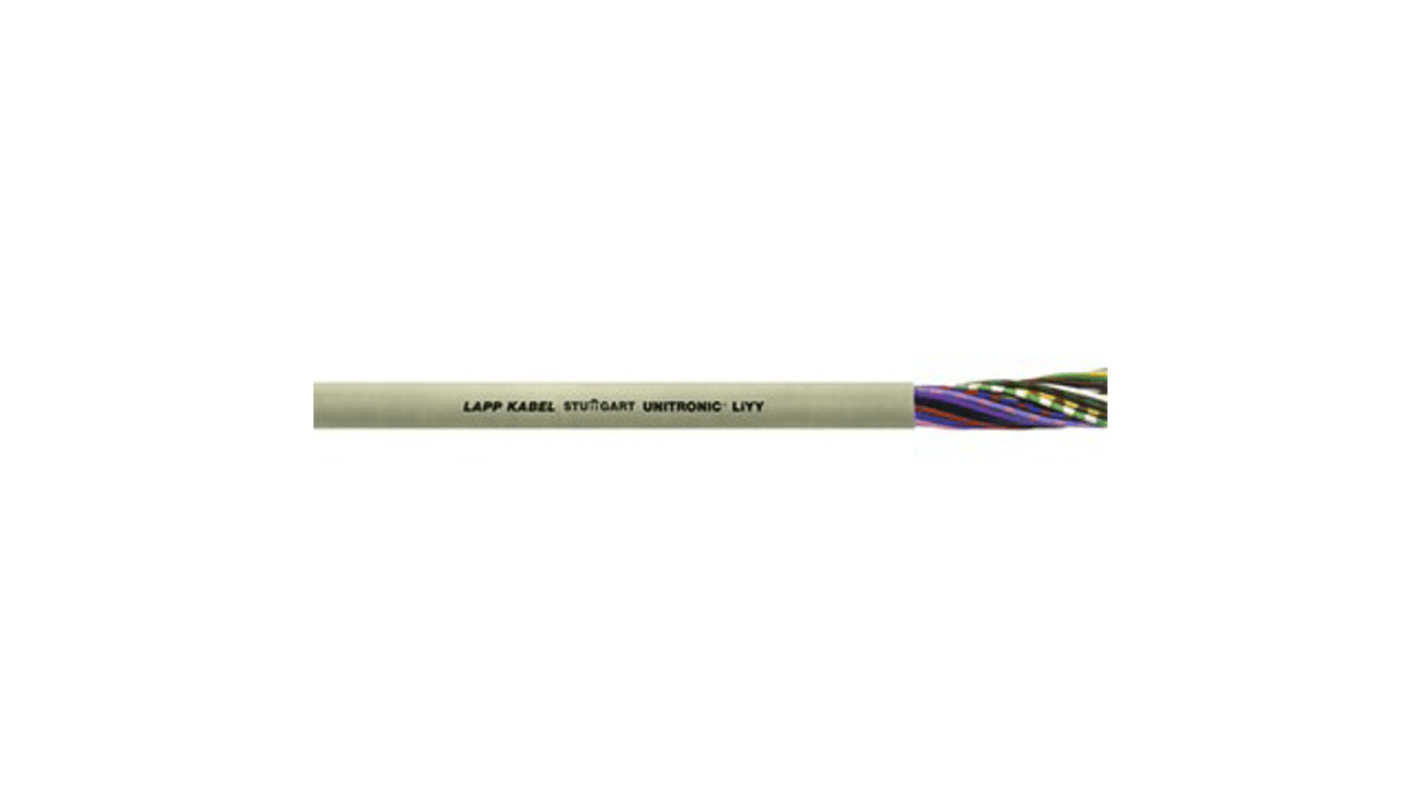

Lapp UNITRONIC LiYY Series Data Cable, 25 Cores, 0.34 mm², Unscreened, 22 AWG, 50m, LiYY Cable

View this category

Subtotal (1 reel of 50 metres)*

£237.65

(exc. VAT)

£285.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£237.65£4.753

*price indicative

RS Stock No.:
491-8797
Mfr. Part No.:
0028425
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Cross Sectional Area

0.34 mm²

Number of Cores

25

American Wire Gauge

22 AWG

Screened/Unscreened

Unscreened

Length

50m

Sheath Colour

Grey

CPR Certification

Eca

Cable Type

LiYY

Outer Diameter

11.2mm

Outer Sheath Material

PVC

Cable Shape

Multicore

Standards Met

CE

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+80°C

Fire Behaviour

Flame Retardant

Shielded/Unshielded

Unshielded

Series

UNITRONIC LiYY

Voltage Rating

500 V

Core Strands

7/0.25 mm

COO (Country of Origin):
DE

LAPP Control Cable, 25 Cores, 0.34mm² Conductor Cross Section - UNITRONIC Series - 0028425


This LAPP control cable is a reliable option for the transmission of signals and data between your devices. It has stranded cores for flexibility and a minimum bending radius of up to 10 times its diameter, making it easy to install in tight or awkward areas. Thanks to a wide operating temperature range of -40°C to +80°C, this is a suitable option for use in harsh industrial environments.

Features & Benefits


• Voltage rating of 250V for use in low-powered applications
• Compact outer diameter of 11.2mm to fit into busy control cabinets
• PVC jacket protects wires against oils, chemicals and abrasion, so safe to use in contaminated settings

Applications


• Processing plants
• Packing lines
• Structural surveys
• Engineering industry

Is this cable shielded against EMI?


No, this cable isn't shielded, so it's a good choice for use in applications where low levels of EMI and RFI are usual.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
