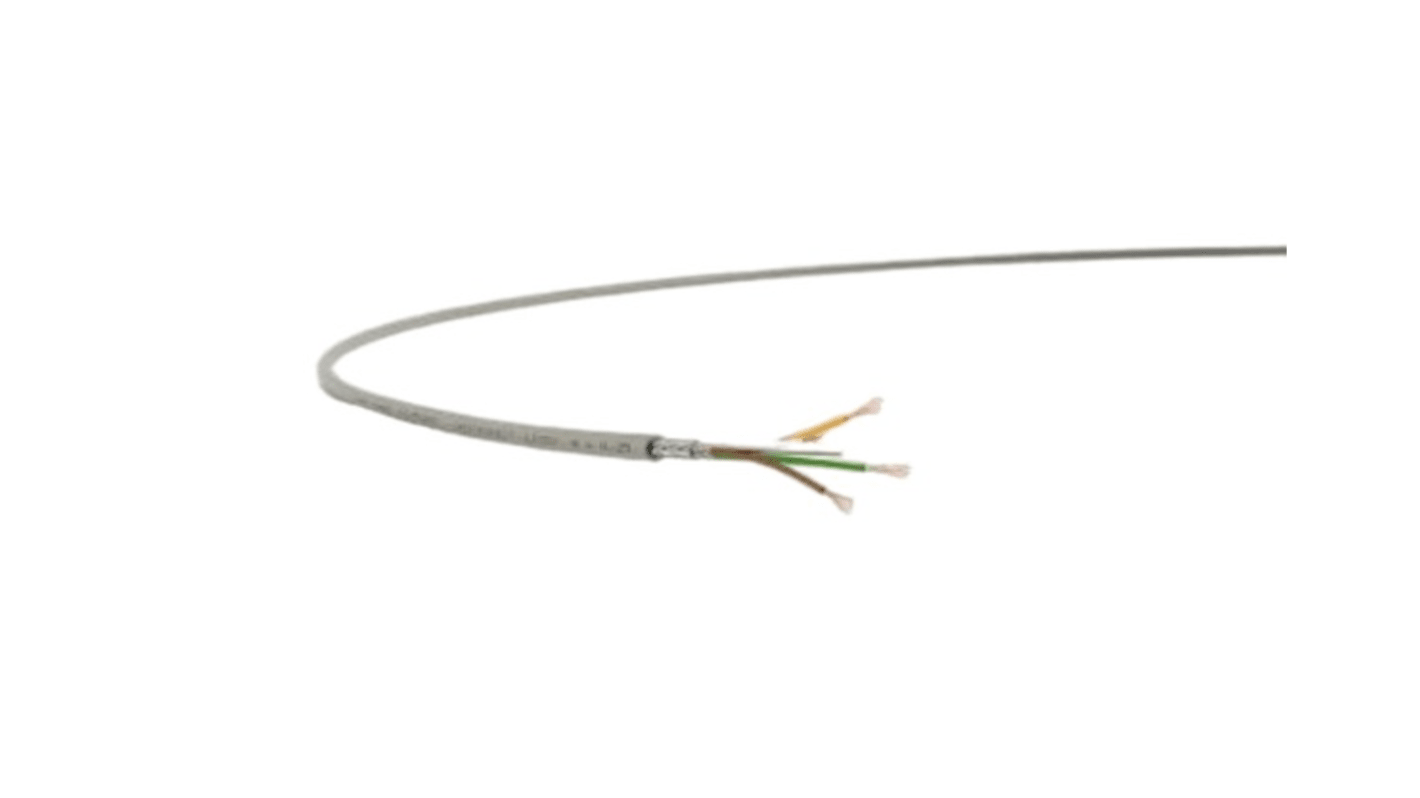

Lapp UNITRONIC LiYCY Series Data Cable 6 Pairs 6 Cores 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride
- RS Stock No.:
- 491-8494
- Distrelec Article No.:
- 301-73-015
- Mfr. Part No.:
- 0034306
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£123.26
(exc. VAT)
£147.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 16 unit(s) ready to ship
- Plus 6 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £123.26 | £1.233 |
*price indicative
- RS Stock No.:
- 491-8494
- Distrelec Article No.:
- 301-73-015
- Mfr. Part No.:
- 0034306
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 6 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.14 mm² | |
| Number of Cores | 6 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 4.9mm | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE, RoHS | |
| Screened/Unscreened | Screened | |
| Size of Strands | 100μm | |
| Number of Strands | 18 | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | |
| Core Strands | 18 x 100 μm | |
| Voltage | 250V | |
| Conductor Material | Bare Copper | |
| Series | UNITRONIC LiYCY | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 6 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.14 mm² | ||
Number of Cores 6 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 4.9mm | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE, RoHS | ||
Screened/Unscreened Screened | ||
Size of Strands 100μm | ||
Number of Strands 18 | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2 | ||
Core Strands 18 x 100 μm | ||
Voltage 250V | ||
Conductor Material Bare Copper | ||
Series UNITRONIC LiYCY | ||
- COO (Country of Origin):
- RO
LAPP Control Cable, Braided Copper Wire, 250V Voltage Rating - UNITRONIC Series - 0034306
Make connections in your low-frequency system with this 6-core LiYCY control cable from LAPP. It's a long-lasting component thanks to its tinned copper braid, which is resistant to both oxidation and corrosion. This also helps it maintain signal strength even in damp environments. Further protecting your setup is the PVC sheath that's flame-retardant to minimise the risk of an electrical fire. Use this cable to transmit data between computers or control and measuring devices.
Features & Benefits
• Fixed installation operating temperatures between -40°C and +80°C to suit harsh environments
• 100m length can be cut to size to suit your equipment needs
• Screened to reduce crosstalk and improve signal integrity
Applications
• Communications systems
• Broadcast media industry
• Industrial automation
• Manufacturing facilities
Why should I choose cables with braided copper wires?
Braided copper wire minimises EMI that could otherwise interrupt signals in your system.
