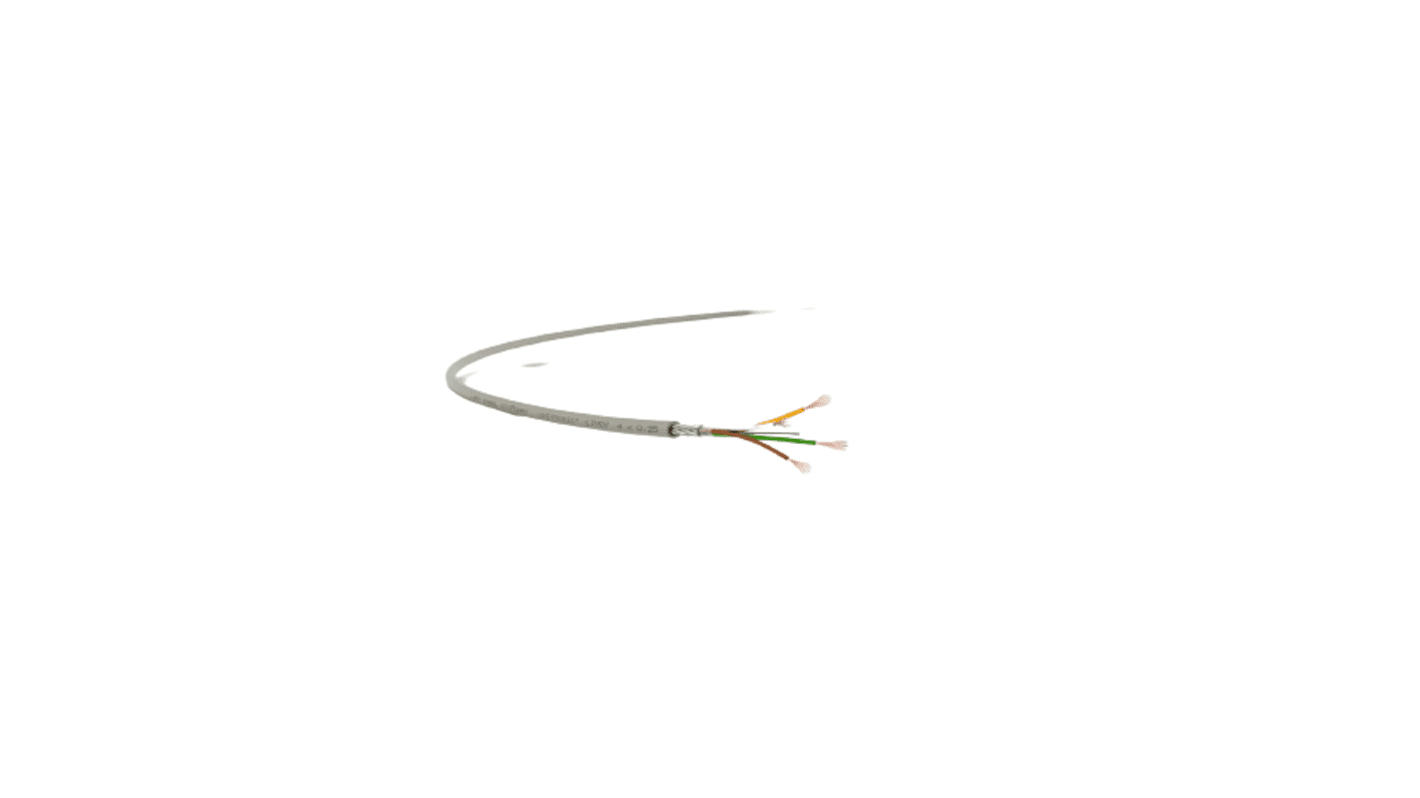

Lapp UNITRONIC LiYCY Series Data Cable, 3 Cores, 0.34 mm², Screened, 22 AWG, 100m, Screened Shield, LiYCY Cable
- RS Stock No.:
- 445-1761
- Distrelec Article No.:
- 304-33-426
- Mfr. Part No.:
- 0034503
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£124.79
(exc. VAT)
£149.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £124.79 | £1.248 |
*price indicative
- RS Stock No.:
- 445-1761
- Distrelec Article No.:
- 304-33-426
- Mfr. Part No.:
- 0034503
- Brand:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 3 | |
| American Wire Gauge | 22 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | Tinned Copper Braid | |
| CPR Certification | Eca | |
| Sheath Colour | Grey | |
| Cable Type | LiYCY | |
| Outer Diameter | 5.1mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Multicore | |
| Series | UNITRONIC LiYCY | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | EAC | |
| Minimum Operating Temperature | -40°C | |
| Shielded/Unshielded | Shielded | |
| Core Strands | 7/0.25 mm | |
| Maximum Operating Temperature | +80°C | |
| Voltage Rating | 500 V | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 3 | ||
American Wire Gauge 22 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Tinned Copper Braid | ||
CPR Certification Eca | ||
Sheath Colour Grey | ||
Cable Type LiYCY | ||
Outer Diameter 5.1mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Series UNITRONIC LiYCY | ||
Fire Behaviour Flame Retardant | ||
Standards Met EAC | ||
Minimum Operating Temperature -40°C | ||
Shielded/Unshielded Shielded | ||
Core Strands 7/0.25 mm | ||
Maximum Operating Temperature +80°C | ||
Voltage Rating 500 V | ||
