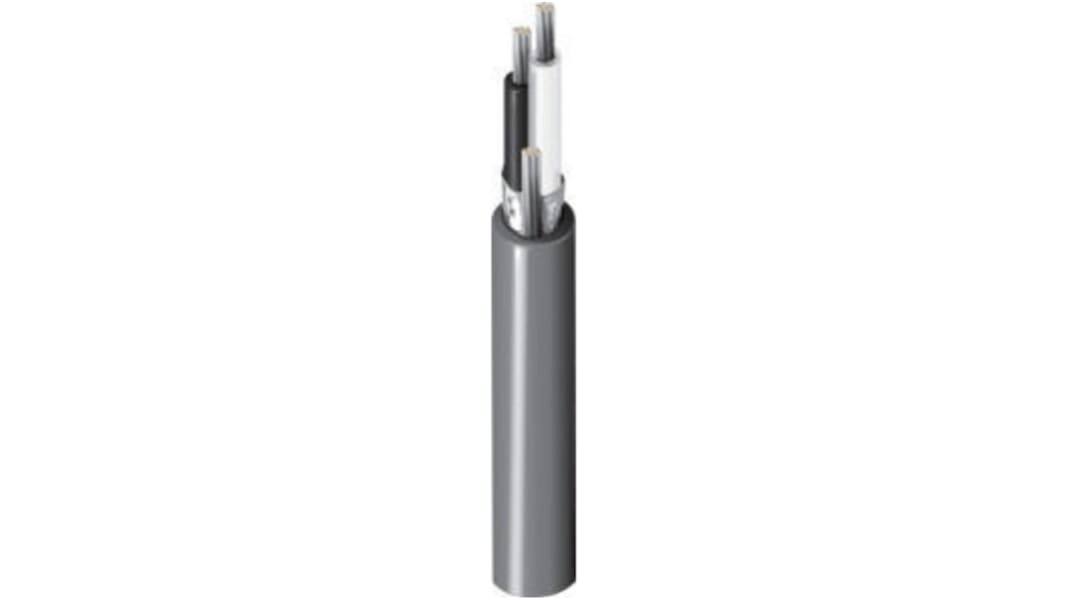

Belden 8760NH Series Data Cable, 1 Pairs, 2 Cores, 0.8 mm², Screened, 18 AWG, 304m, Screened Shield
- RS Stock No.:
- 382-7218
- Mfr. Part No.:
- 8760NH.00305
- Brand:
- Belden
Subtotal (1 reel of 304 metres)*
£627.93
(exc. VAT)
£753.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £627.93 | £2.066 |
*price indicative
- RS Stock No.:
- 382-7218
- Mfr. Part No.:
- 8760NH.00305
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.8 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 18 AWG | |
| Screened/Unscreened | Screened | |
| Length | 304m | |
| Shield Type | F/UTP | |
| Sheath Colour | Chrome | |
| CPR Certification | Dca | |
| Outer Diameter | 6mm | |
| Outer Sheath Material | LSZH | |
| Cable Shape | Twisted Pair | |
| Maximum Operating Temperature | +75°C | |
| Series | 8760NH | |
| Core Strands | 16/30 AWG | |
| Shielded/Unshielded | Shielded | |
| Minimum Operating Temperature | -20°C | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
Select all | ||
|---|---|---|
Brand Belden | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.8 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 18 AWG | ||
Screened/Unscreened Screened | ||
Length 304m | ||
Shield Type F/UTP | ||
Sheath Colour Chrome | ||
CPR Certification Dca | ||
Outer Diameter 6mm | ||
Outer Sheath Material LSZH | ||
Cable Shape Twisted Pair | ||
Maximum Operating Temperature +75°C | ||
Series 8760NH | ||
Core Strands 16/30 AWG | ||
Shielded/Unshielded Shielded | ||
Minimum Operating Temperature -20°C | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
- COO (Country of Origin):
- NL
Belden Data Cable, Tinned-Copper Twisted Pair Type, 304m Length - 8760NH Series - 8760NH.00305
For clear signalling in your industrial network, choose this Belden 18AWG data cable. It has 2 cores with a twisted pair design that limits electromagnetic interference to make transmission more efficient. The cable comes on reel of 304m, so it's an ideal option for wiring up larger work areas. Its broad operating temperature range between -20°C and +75°C means you can trust it to get the message across, even in challenging conditions.
Features & Benefits
• Low-smoke zero-halogen construction to prevent dangerous emissions in the event of a fire
• Slim nominal diameter of 5.64mm so it's handy in tight spots
• Polyethylene insulation resists impact in heavy-duty applications
• Slim nominal diameter of 5.64mm so it's handy in tight spots
• Polyethylene insulation resists impact in heavy-duty applications
Applications
• Manufacturing industry
• Telecommunications equipment
• Power generation
• Panel wiring
• Telecommunications equipment
• Power generation
• Panel wiring
Can I use this cable with powerful electrical systems?
Yes, its voltage rating is 300V, so it's safe to use in demanding systems.
Standards
IEC 332-3C
