Belden 8471NH Series Twisted & Multipair Industrial Cable, 1 Pairs, 500 m Low Smoke Zero Halogen

View this category

Subtotal (1 reel of 500 metres)*

£2,172.04

(exc. VAT)

£2,606.45

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£2,172.04£4.344

*price indicative

RS Stock No.:
631-631
Mfr. Part No.:
8471NH.00500
Brand:
Belden
Find similar products by selecting one or more attributes.
Select all

Brand

Belden

Number of Pairs

1

Product Type

Twisted & Multipair Industrial Cable

Cable Length

500m

Jacket Material

Low Smoke Zero Halogen

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

80°C

Standards/Approvals

EU, CE

Series

8471NH

COO (Country of Origin):
HU

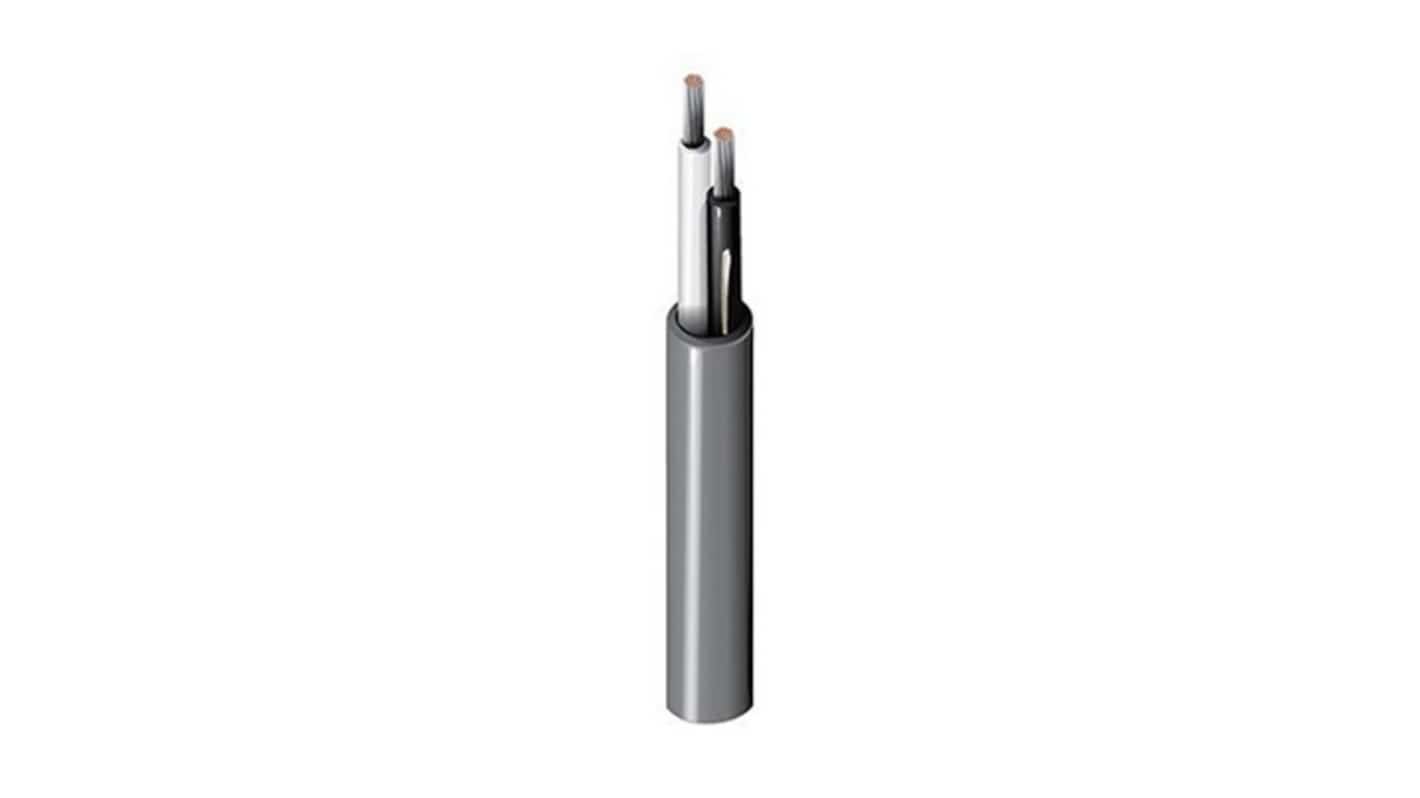

Belden 8471NH Series Twisted & Multipair Industrial Cable, 500m Cable Length, Chrome Jacket - 8471NH.00500


This twisted & multipair industrial cable provides signal and power transmission for demanding industrial environments. It is a single-pair construction rated for 300V operation and designed with a low-smoke zero halogen outer sheath in a chrome finish to reduce toxic emissions in confined spaces.

Features & Benefits


• Stranded tinned copper conductors improve flexibility and corrosion resistance
• 19x29 conductor strand count enhances mechanical fatigue endurance
• Operates across −20°C to +75°C for broad temperature tolerance
• Complies with IEC 60332-1-2 to limit flame propagation during faults
• Supplied on a 500m reel for long continuous runs without joints

Applications


• Suitable for factory automation control loops and sensors
• Ideal for connection of industrial instruments and transducers
• Used for wiring in machine panels where low smoke is required
• Can be used for single-pair fieldbus or serial data links
• Used with mobile equipment requiring flexible tinned conductors

What conductor construction supports frequent flexing in moving parts?


The conductor is MADE from multiple fine tinned copper strands arranged as 19x29 which provides enhanced flexibility and resistance to breakage under repeated motion.

How does the sheath material affect indoor installation safety?


The low-smoke zero halogen jacket significantly reduces hazardous gases and dense smoke in the event of fire, aiding evacuation and limiting corrosion of nearby equipment.

What voltage and environmental range suit standard industrial control systems?


The cable is rated to 300V and functions between −20°C and +75°C, matching common control-panel and field-cabling requirements.

How is fire performance addressed for routed cable runs?


It meets IEC 60332-1-2 flame-propagation criteria to reduce the risk of fire spread along individual conductors.

What physical size should be considered for conduit selection?


The cable has an overall outside diameter of 7.1mm, which determines conduit fill and bending requirements.
