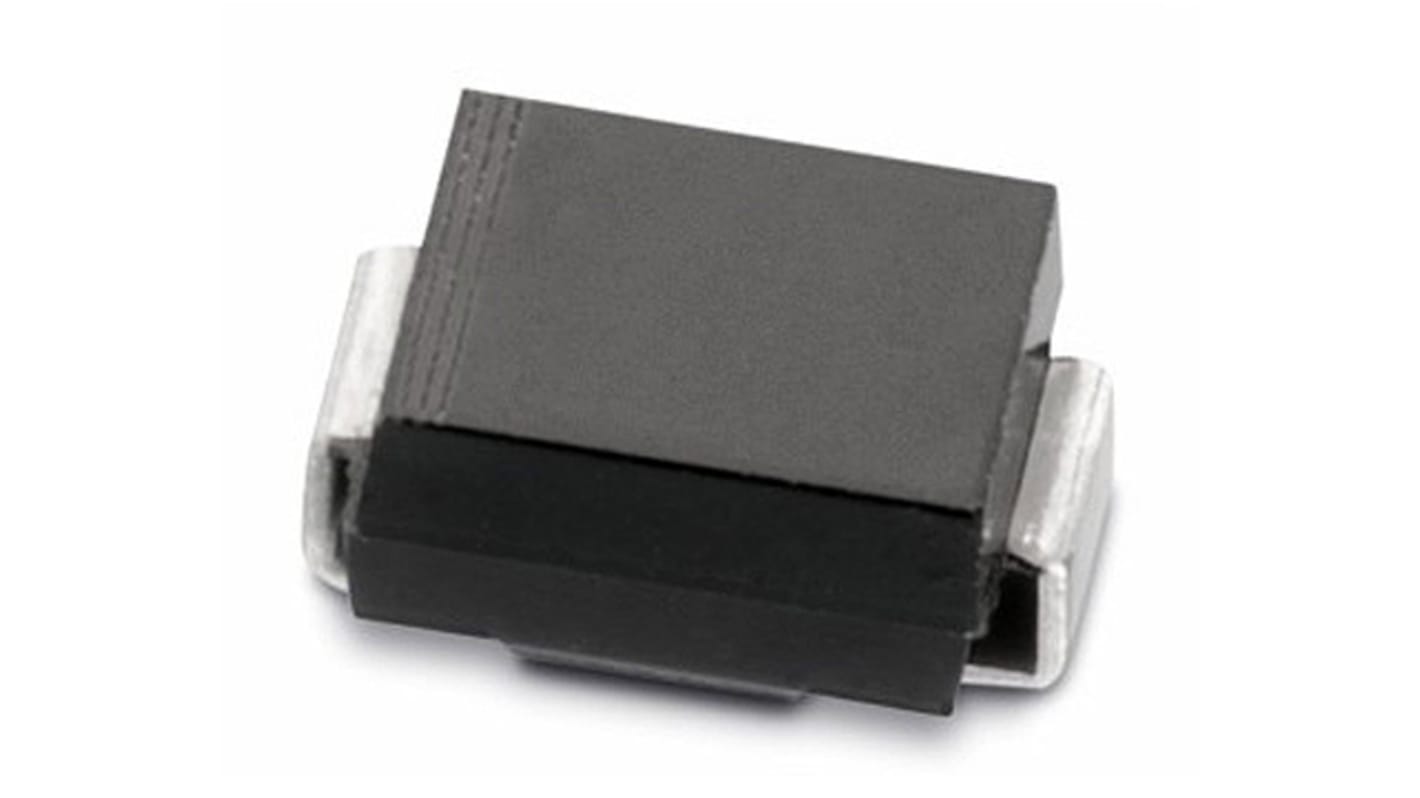

Wurth Elektronik 824500101 / SMAJ10A 1-Element Uni-Directional TVS Diode, 400 W, 2-Pin DO-214

RS Stock No.:: 921-7415
Mfr. Part No.:: 824500101
Brand:: Wurth Elektronik

Wurth Elektronik 824500101 / SMAJ10A 1-Element Uni-Directional TVS Diode, 400 W, 2-Pin DO-214

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 50 units)*

£8.50

(exc. VAT)

£10.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 950 unit(s) shipping from 01 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
50 - 200	£0.17	£8.50
250 - 450	£0.166	£8.30
500 - 950	£0.163	£8.15
1000 - 1950	£0.16	£8.00
2000 +	£0.157	£7.85

*price indicative

Development Kit Box with a flash stating "Win"

Win A Würth Elektronik Lighting Development Kit

Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.

Claim my Lighting Kit

RS Stock No.:: 921-7415
Mfr. Part No.:: 824500101
Brand:: Wurth Elektronik

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Product Type	TVS Diode
	Direction Type	Uni-Directional
	Diode Configuration	Single
	Minimum Breakdown Voltage Vbr	11.7V
	Mount Type	Surface
	Package Type	DO-214
	Pin Count	2
	Peak Pulse Power Dissipation Pppm	400W
	Clamping Voltage VC	17V
	Minimum Operating Temperature	-65°C
	Test Current It	1mA
	Maximum Peak Pulse Current Ippm	40A
	Number of Elements per Chip	1
	Maximum Operating Temperature	150°C
	Series	WE-TVSP
	Width	2.67mm
	Standards/Approvals	No
	Length	4.24mm
	Height	2.14mm
	Automotive Standard	No
	Maximum Reverse Leakage Current	5μA

	Select all
	Brand Wurth Elektronik
	Product Type TVS Diode
	Direction Type Uni-Directional
	Diode Configuration Single
	Minimum Breakdown Voltage Vbr 11.7V
	Mount Type Surface
	Package Type DO-214
	Pin Count 2
	Peak Pulse Power Dissipation Pppm 400W
	Clamping Voltage VC 17V
	Minimum Operating Temperature -65°C
	Test Current It 1mA
	Maximum Peak Pulse Current Ippm 40A
	Number of Elements per Chip 1
	Maximum Operating Temperature 150°C
	Series WE-TVSP
	Width 2.67mm
	Standards/Approvals No
	Length 4.24mm
	Height 2.14mm
	Automotive Standard No
	Maximum Reverse Leakage Current 5μA

COO (Country of Origin):: CN

Unidirectional TVS Diodes, 400W, Wurth Elektronik

The Wurth Elektronik 400 W Unidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.

- Low profile package

- Glass passivated junction

- Fast response time

Transient Voltage Suppressors, Wurth Elektronik
