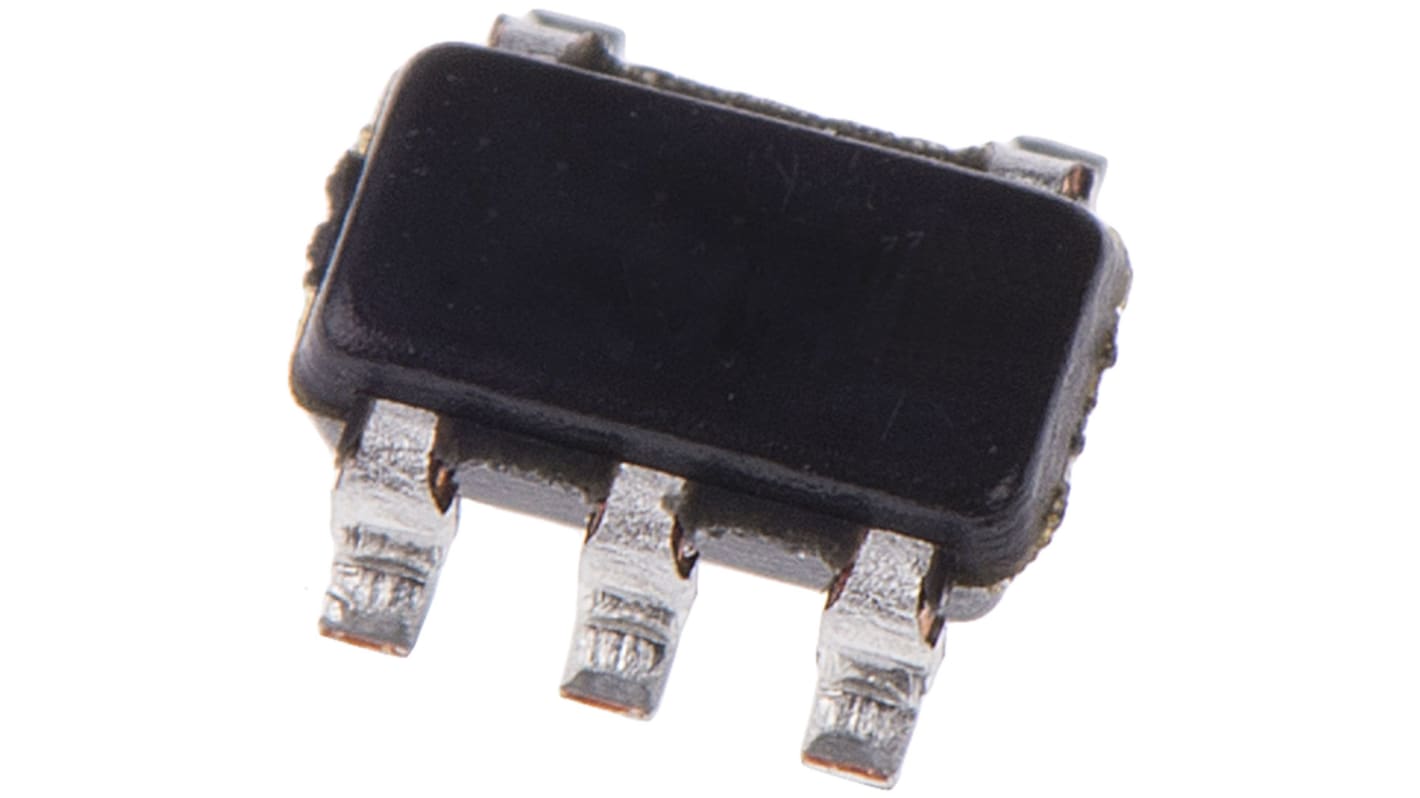

STMicroelectronics LBP01-0803SC5, Bi-Directional LED Shunt Protector, 5-Pin SOT-23
- RS Stock No.:
- 829-0383
- Mfr. Part No.:
- LBP01-0803SC5
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 829-0383
- Mfr. Part No.:
- LBP01-0803SC5
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Single | |
| Minimum Breakdown Voltage | 8V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Maximum Reverse Stand-off Voltage | 3V | |
| Pin Count | 5 | |
| Maximum Peak Pulse Current | 24A | |
| ESD Protection | No | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -55 °C | |
| Dimensions | 3.05 x 1.75 x 1.3mm | |
| Maximum Operating Temperature | +150 °C | |
| Length | 3.05mm | |
| Maximum Reverse Leakage Current | 100nA | |
| Width | 1.75mm | |
| Height | 1.3mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Direction Type Bi-Directional | ||
Diode Configuration Single | ||
Minimum Breakdown Voltage 8V | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Maximum Reverse Stand-off Voltage 3V | ||
Pin Count 5 | ||
Maximum Peak Pulse Current 24A | ||
ESD Protection No | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Dimensions 3.05 x 1.75 x 1.3mm | ||
Maximum Operating Temperature +150 °C | ||
Length 3.05mm | ||
Maximum Reverse Leakage Current 100nA | ||
Width 1.75mm | ||
Height 1.3mm | ||
LBP01, LED Bypass Protection
Keep LED strings on in case of LED open mode failure
Transient Voltage Suppressors, STMicroelectronics
