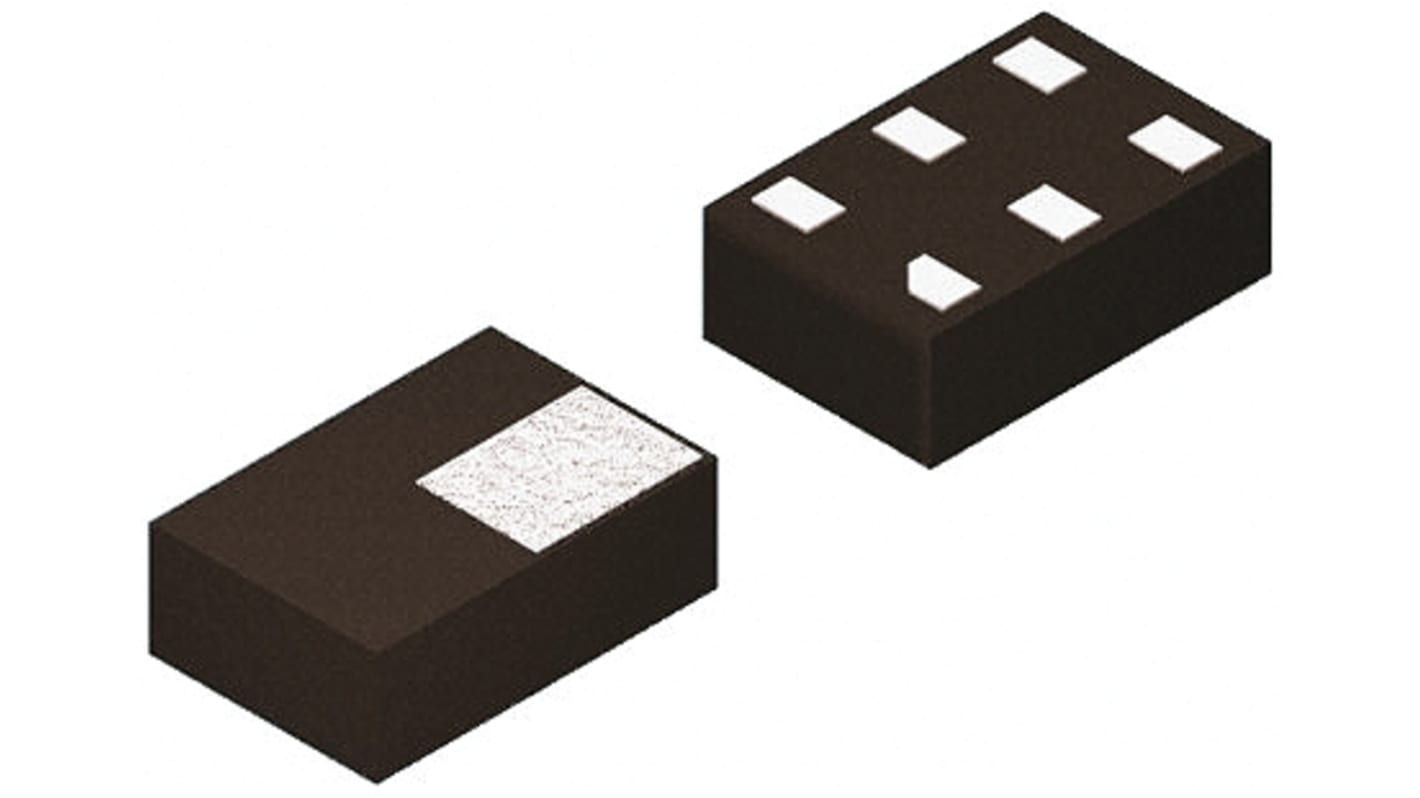

Nexperia PRTR5V0U2K,132, Dual-Element Uni-Directional ESD Protection Array, 6-Pin SOT-891
- RS Stock No.:
- 816-6940
- Mfr. Part No.:
- PRTR5V0U2K,132
- Brand:
- Nexperia
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 816-6940
- Mfr. Part No.:
- PRTR5V0U2K,132
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Complex Array | |
| Minimum Breakdown Voltage | 6V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-891 | |
| Maximum Reverse Stand-off Voltage | 5.5V | |
| Pin Count | 6 | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 2 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Dimensions | 1.05 x 1.05 x 0.46mm | |
| Length | 1.05mm | |
| Maximum Reverse Leakage Current | 100nA | |
| Width | 1.05mm | |
| Height | 0.46mm | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Direction Type Uni-Directional | ||
Diode Configuration Complex Array | ||
Minimum Breakdown Voltage 6V | ||
Mounting Type Surface Mount | ||
Package Type SOT-891 | ||
Maximum Reverse Stand-off Voltage 5.5V | ||
Pin Count 6 | ||
ESD Protection Yes | ||
Number of Elements per Chip 2 | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Dimensions 1.05 x 1.05 x 0.46mm | ||
Length 1.05mm | ||
Maximum Reverse Leakage Current 100nA | ||
Width 1.05mm | ||
Height 0.46mm | ||
