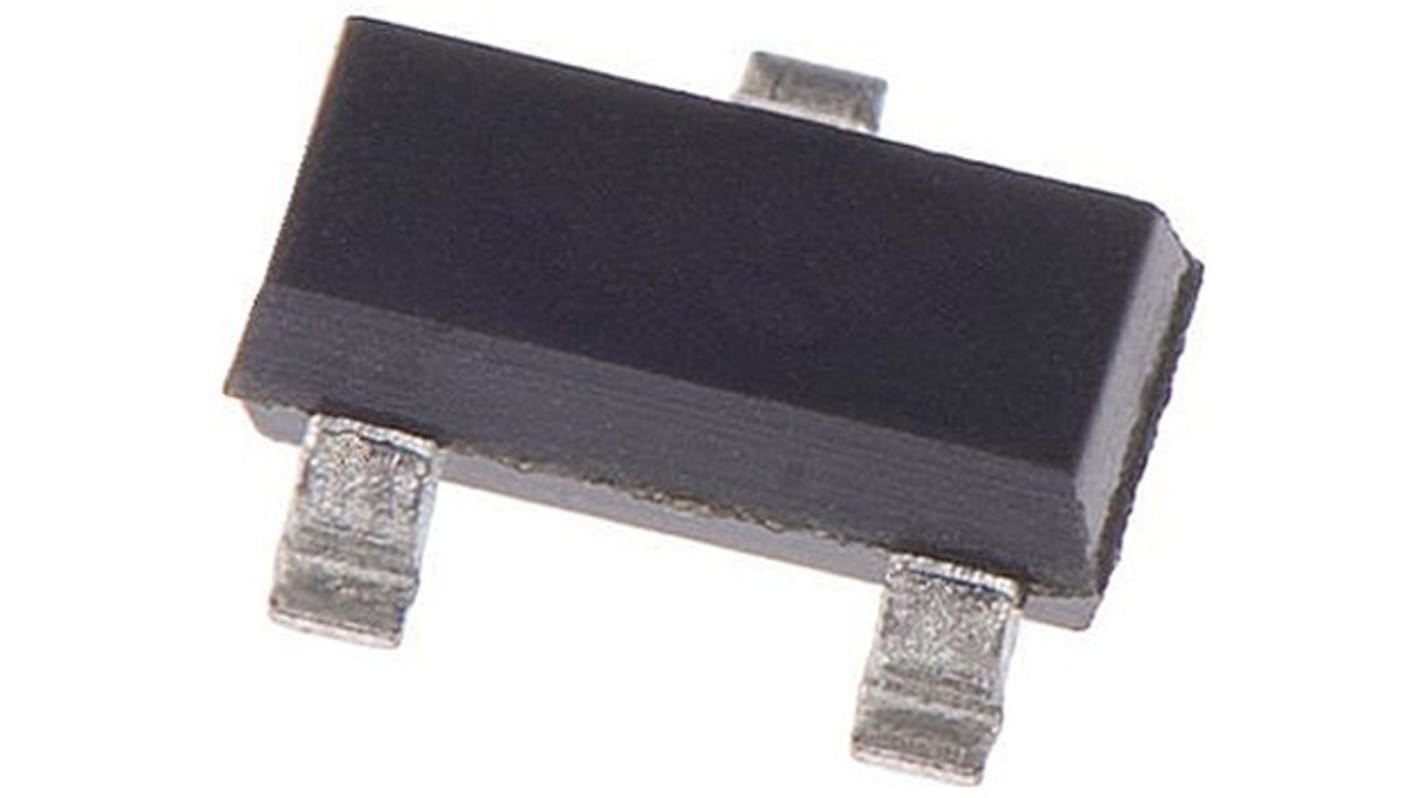

Littelfuse SP0502BAHTG 2-Element Uni-Directional TVS Diode Array, 0.22 W, 3-Pin SOT-23
- RS Stock No.:
- 793-1958
- Mfr. Part No.:
- SP0502BAHTG
- Brand:
- Littelfuse
Bulk discount available
Subtotal (1 pack of 10 units)*
£3.47
(exc. VAT)
£4.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
- Plus 9,870 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.347 | £3.47 |
| 50 - 90 | £0.26 | £2.60 |
| 100 - 240 | £0.226 | £2.26 |
| 250 - 390 | £0.192 | £1.92 |
| 400 + | £0.183 | £1.83 |
*price indicative
- RS Stock No.:
- 793-1958
- Mfr. Part No.:
- SP0502BAHTG
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Diode Configuration | Array | |
| Direction Type | Uni-Directional | |
| Product Type | TVS Diode Array | |
| Minimum Breakdown Voltage Vbr | 6V | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation Pppm | 0.22W | |
| Minimum Operating Temperature | -40°C | |
| Clamping Voltage VC | 8.5V | |
| ESD Protection | Yes | |
| Test Current It | 10mA | |
| Maximum Operating Temperature | 85°C | |
| Number of Elements per Chip | 2 | |
| Standards/Approvals | No | |
| Series | SP05 | |
| Length | 3.04mm | |
| Height | 1.02mm | |
| Maximum Reverse Leakage Current | 100nA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Diode Configuration Array | ||
Direction Type Uni-Directional | ||
Product Type TVS Diode Array | ||
Minimum Breakdown Voltage Vbr 6V | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Maximum Reverse Stand-off Voltage Vwm 5.5V | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation Pppm 0.22W | ||
Minimum Operating Temperature -40°C | ||
Clamping Voltage VC 8.5V | ||
ESD Protection Yes | ||
Test Current It 10mA | ||
Maximum Operating Temperature 85°C | ||
Number of Elements per Chip 2 | ||
Standards/Approvals No | ||
Series SP05 | ||
Length 3.04mm | ||
Height 1.02mm | ||
Maximum Reverse Leakage Current 100nA | ||
Automotive Standard No | ||
TVS Diode Arrays, SP05 Series
General Purpose ESD Protection - SP05 Series
Transient Voltage Suppressors, Littelfuse
