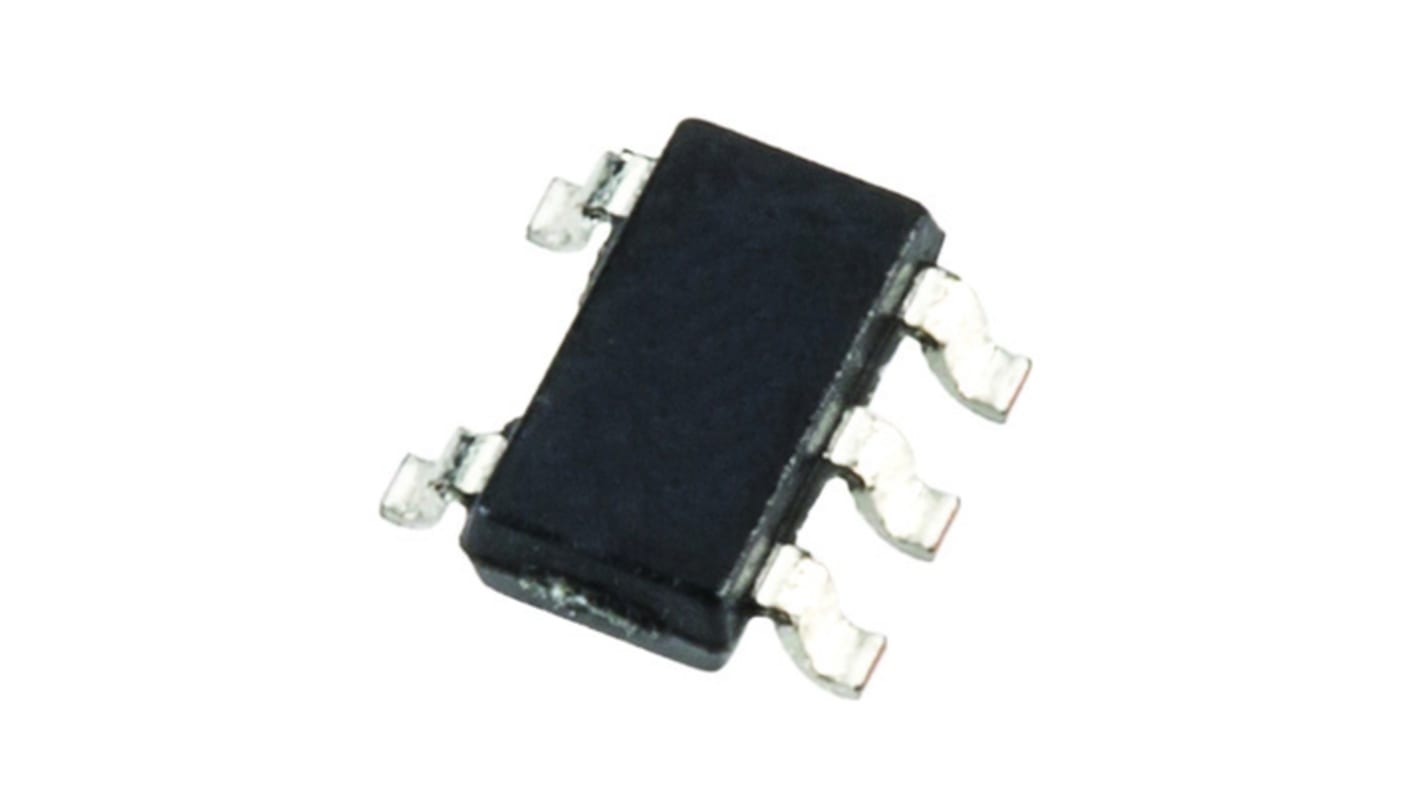

Texas Instruments TPD3E001DRLR, Triple-Element TVS Diode Array, 5-Pin SOT-553
- RS Stock No.:
- 709-9063
- Mfr. Part No.:
- TPD3E001DRLR
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 10 units)*
£3.98
(exc. VAT)
£4.78
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.398 | £3.98 |
| 50 - 190 | £0.301 | £3.01 |
| 200 - 990 | £0.226 | £2.26 |
| 1000 - 1990 | £0.196 | £1.96 |
| 2000 + | £0.193 | £1.93 |
*price indicative
- RS Stock No.:
- 709-9063
- Mfr. Part No.:
- TPD3E001DRLR
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Diode Configuration | Complex Array | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-553 | |
| Pin Count | 5 | |
| Number of Elements per Chip | 3 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Dimensions | 1.6 x 1.2 x 0.55mm | |
| Length | 1.6mm | |
| Height | 0.55mm | |
| Width | 1.2mm | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Diode Configuration Complex Array | ||
Mounting Type Surface Mount | ||
Package Type SOT-553 | ||
Pin Count 5 | ||
Number of Elements per Chip 3 | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Dimensions 1.6 x 1.2 x 0.55mm | ||
Length 1.6mm | ||
Height 0.55mm | ||
Width 1.2mm | ||
Serial Data Bus ESD Protection
Electrostatic Discharge (ESD) prtotection for: DVI, HDMI, IEEE1394, USB, Ethernet & video lines.
Ultra-low capacitance
2 and 4 Line ESD Protection
Complies with Standard IEC61000-4-2 level 4
2 and 4 Line ESD Protection
Complies with Standard IEC61000-4-2 level 4
Transient Voltage Suppressors (Data Lines)
