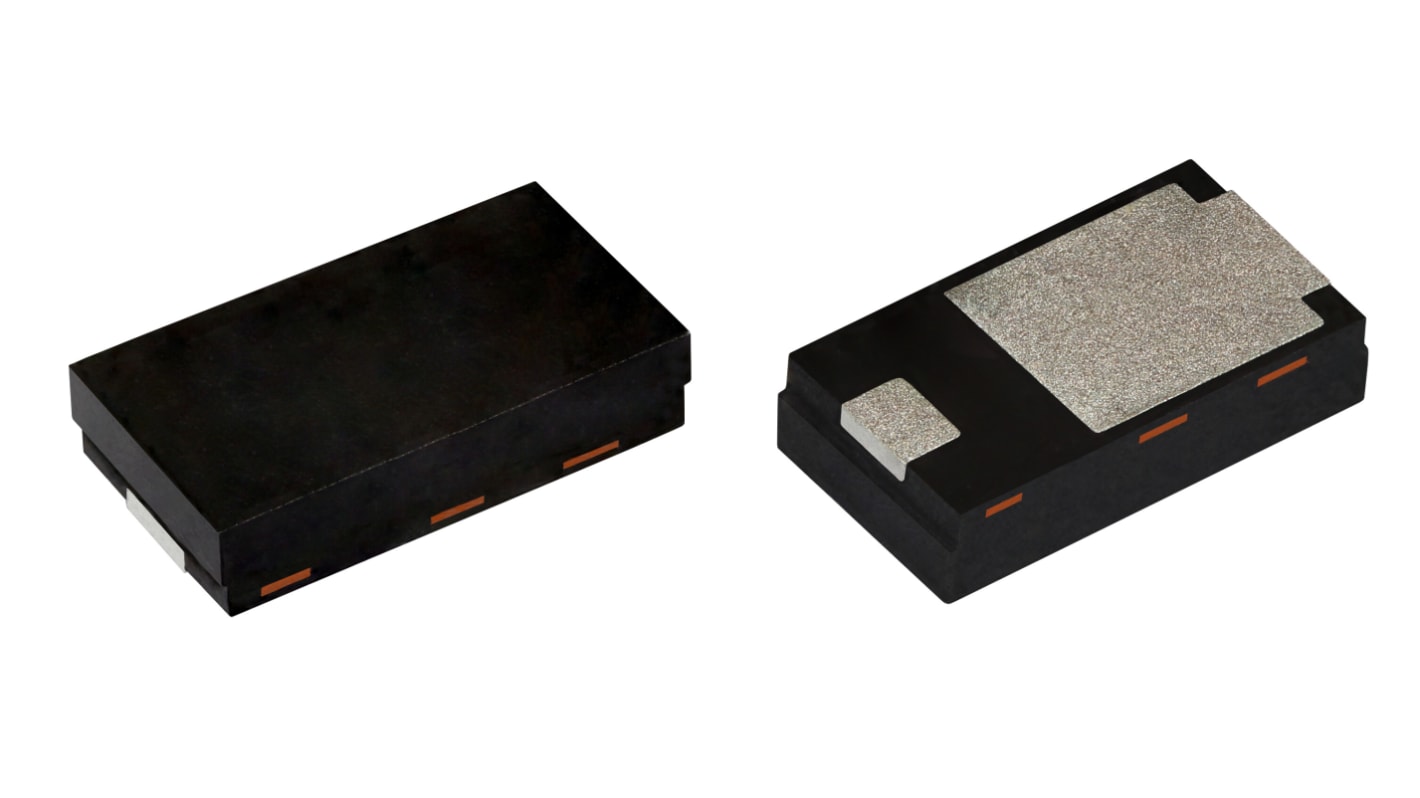

Vishay T6N47AHM3/H 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DFN3820A

View all TVS Diodes
Bulk discount available

Subtotal (1 reel of 3500 units)*

£378.00

(exc. VAT)

£455.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 10,500 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Reel*
3500 - 3500£0.108£378.00
7000 - 7000£0.105£367.50
10500 +£0.102£357.00

*price indicative

RS Stock No.:
279-6535
Mfr. Part No.:
T6N47AHM3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Direction Type

Uni-Directional

Diode Configuration

Single

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

44.7V

Mount Type

Surface

Package Type

DFN3820A

Maximum Reverse Stand-off Voltage Vwm

40.2V

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

ESD Protection

Yes

Maximum Peak Pulse Current Ippm

9.3A

Test Current It

1mA

Minimum Operating Temperature

-65°C

Clamping Voltage VC

64.8V

Maximum Operating Temperature

185°C

Number of Elements per Chip

1

Length

3.8mm

Height

0.88mm

Standards/Approvals

RoHS

Series

T6N47AHM3/H

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

10μA

The Vishay Surface-Mount PAR Transient Voltage Suppressors comes with junction passivation optimized design passivated anisotropic rectifier technology. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for automotive.

Unidirectional

Excellent clamping capability

Ideal for automated placement
