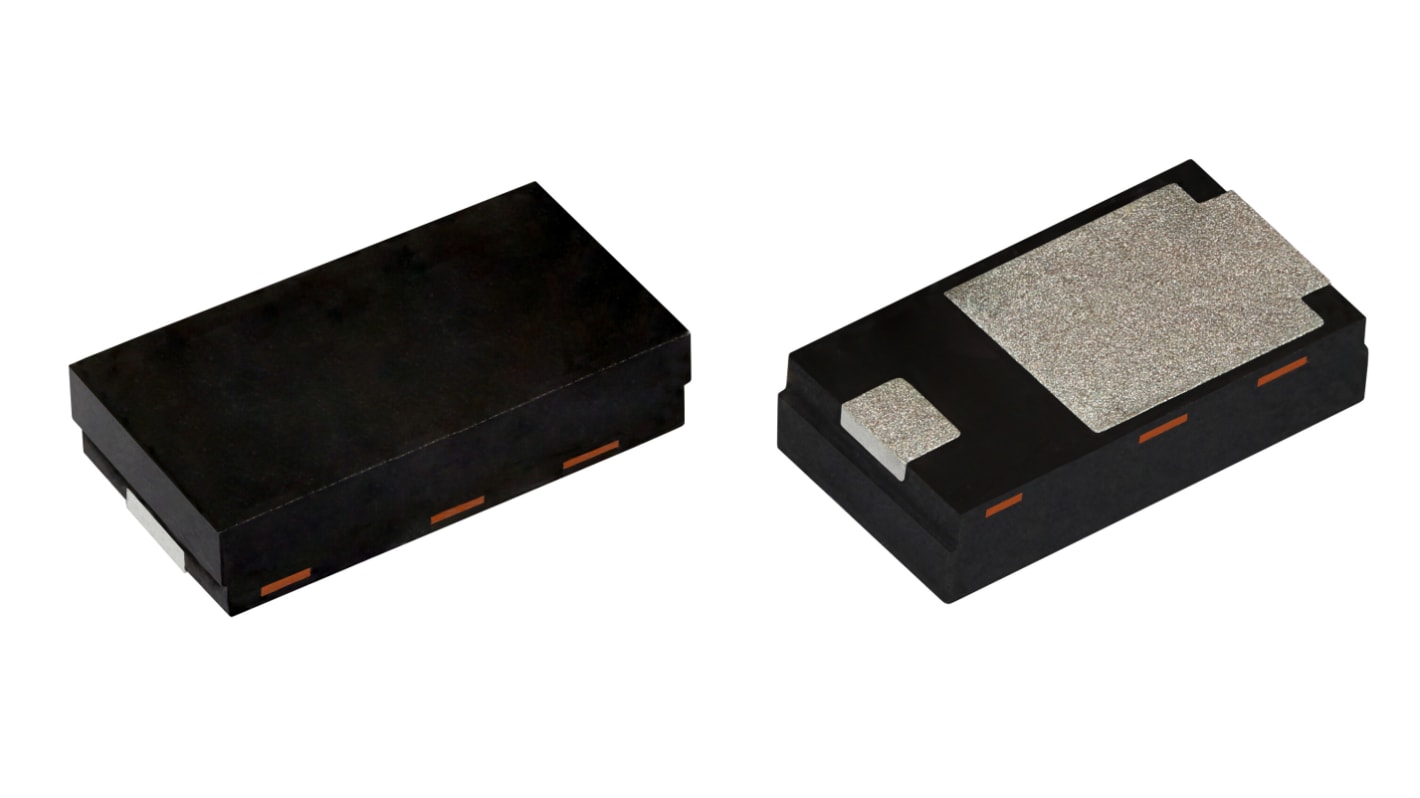

Vishay T6N36AHM3/H 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DFN3820A

View all TVS Diodes
Bulk discount available

Subtotal (1 reel of 3500 units)*

£371.00

(exc. VAT)

£444.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3500 - 3500£0.106£371.00
7000 - 7000£0.104£364.00
10500 +£0.101£353.50

*price indicative

RS Stock No.:
279-6529
Mfr. Part No.:
T6N36AHM3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Direction Type

Uni-Directional

Diode Configuration

Single

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

34.2V

Mount Type

Surface

Package Type

DFN3820A

Maximum Reverse Stand-off Voltage Vwm

30.8V

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

Clamping Voltage VC

49.9V

ESD Protection

Yes

Maximum Peak Pulse Current Ippm

12A

Test Current It

1mA

Minimum Operating Temperature

-65°C

Number of Elements per Chip

1

Maximum Operating Temperature

185°C

Standards/Approvals

RoHS, Halogen-Free, Meets MSL level 1 per J-STD-020, Industrial Grade, UL 94 V-0 Flammability

Height

0.98mm

Width

2.55 mm

Length

3.95mm

Series

T6N12A thru T6N51A

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

1μA

The Vishay Surface-Mount PAR Transient Voltage Suppressors comes with junction passivation optimized design passivated anisotropic rectifier technology. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for automotive.

Unidirectional

Excellent clamping capability

Ideal for automated placement
