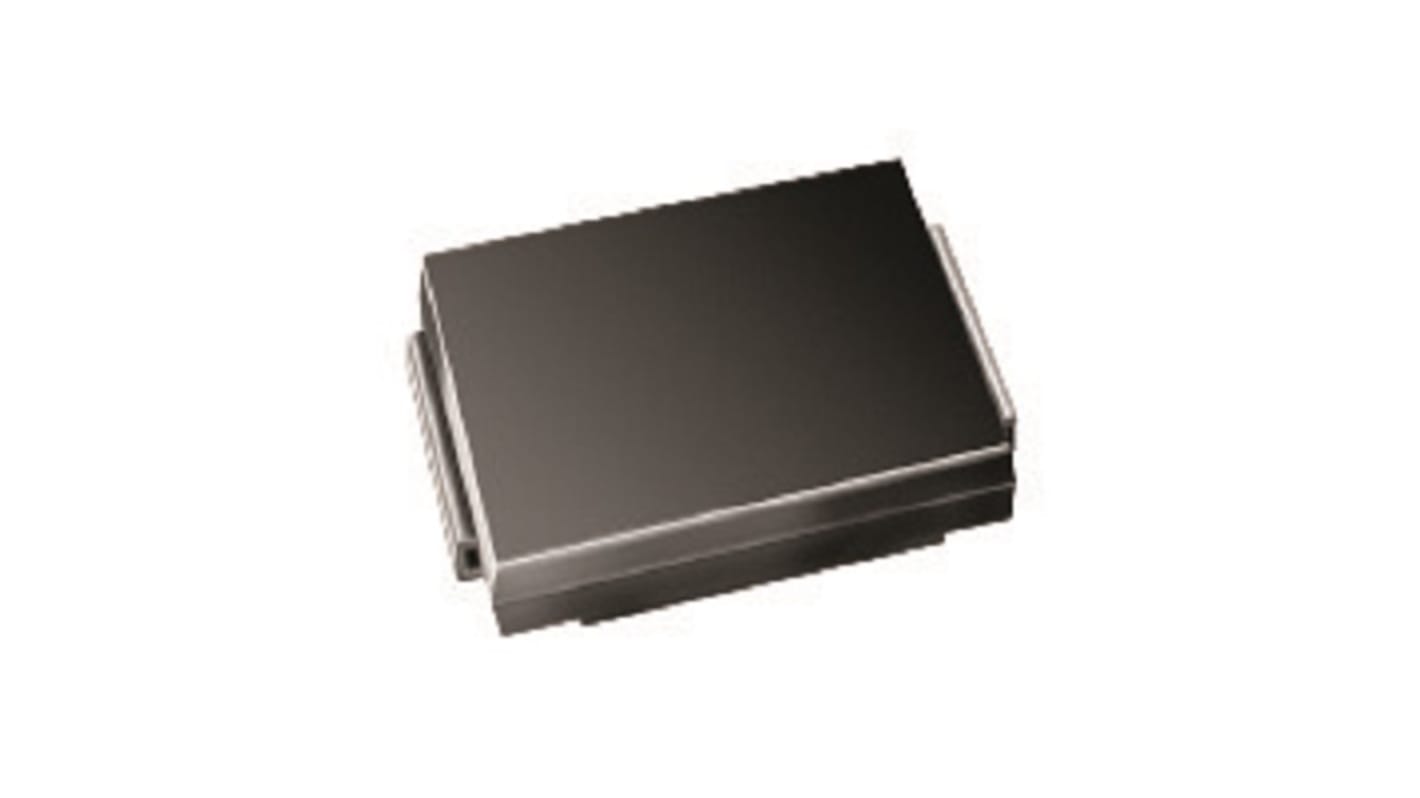

Vishay T15B39AHM3/H 1-Element Uni-Directional TVS Diode, 1500 W, 2-Pin DO-214AA

View all TVS Diodes
Bulk discount available

Subtotal (1 reel of 750 units)*

£202.50

(exc. VAT)

£240.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Reel*
750 - 750£0.27£202.50
1500 - 1500£0.263£197.25
2250 +£0.256£192.00

*price indicative

RS Stock No.:
279-6497
Mfr. Part No.:
T15B39AHM3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Product Type

TVS Diode

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

37.1V

Mount Type

Surface

Package Type

DO-214AA (SMB)

Maximum Reverse Stand-off Voltage Vwm

33.3V

Pin Count

2

Peak Pulse Power Dissipation Pppm

1500W

Clamping Voltage VC

53.9V

Maximum Peak Pulse Current Ippm

28.8A

Minimum Operating Temperature

-65°C

Test Current It

1mA

ESD Protection

Yes

Number of Elements per Chip

1

Maximum Operating Temperature

185°C

Height

2.44mm

Series

T15B12A thru T15B51A

Standards/Approvals

Meets MSL level 1 per J-STD-020, RoHS, Halogen-Free, UL 94 V-0 Flammability, Industrial Grade

Length

3.94mm

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

1μA

The Vishay Surface-Mount PAR Transient Voltage Suppressors comes with junction passivation optimized design passivated anisotropic rectifier technology. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for automotive.

Unidirectional

Excellent clamping capability

Very fast response time
