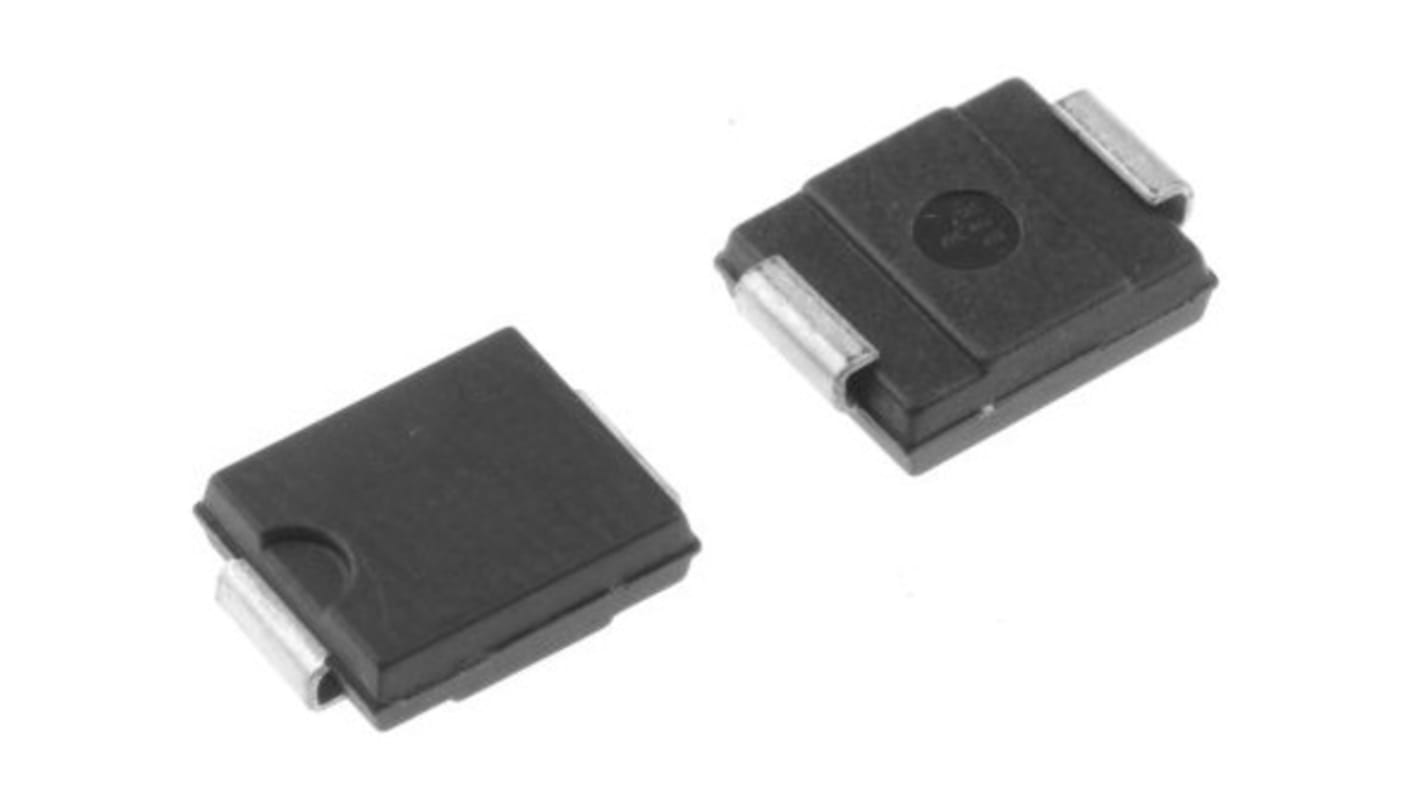

STMicroelectronics SM50T15AY 1-Element Uni-Directional, Bi-Directional TVS Diode, 5000 W, 2-Pin DO-214AB

View all TVS Diodes

Subtotal (1 pack of 2 units)*

£2.05

(exc. VAT)

£2.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 428 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 +£1.025£2.05

*price indicative

Packaging Options:
RS Stock No.:
269-5145
Mfr. Part No.:
SM50T15AY
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Diode Configuration

Series

Product Type

TVS Diode

Direction Type

Uni-Directional, Bi-Directional

Minimum Breakdown Voltage Vbr

14.4V

Mount Type

PCB

Package Type

DO-214AB (SMC)

Maximum Reverse Stand-off Voltage Vwm

13V

Pin Count

2

Peak Pulse Power Dissipation Pppm

5000W

Clamping Voltage VC

21.5V

Maximum Peak Pulse Current Ippm

233A

Minimum Operating Temperature

-55°C

Test Current It

1mA

ESD Protection

Yes

Number of Elements per Chip

1

Maximum Operating Temperature

175°C

Height

2.45mm

Series

SM50TY

Standards/Approvals

Method 2026 JESD-201 Class 2 whisker test IPC7531 footprint and JEDEC, UL94, V0 J-STD-020 MSL Level 1 J-STD-002, JESD 22-B102 E3 and MIL-STD-750

Length

6.25mm

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

1μA

COO (Country of Origin):
CN
The STMicroelectronics SMC Automotive Transient Voltage Suppressors are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. It is suitable for e-breaker and help to comply with ISO 16750.

Long term reliability and stability

Peak Pulse power
