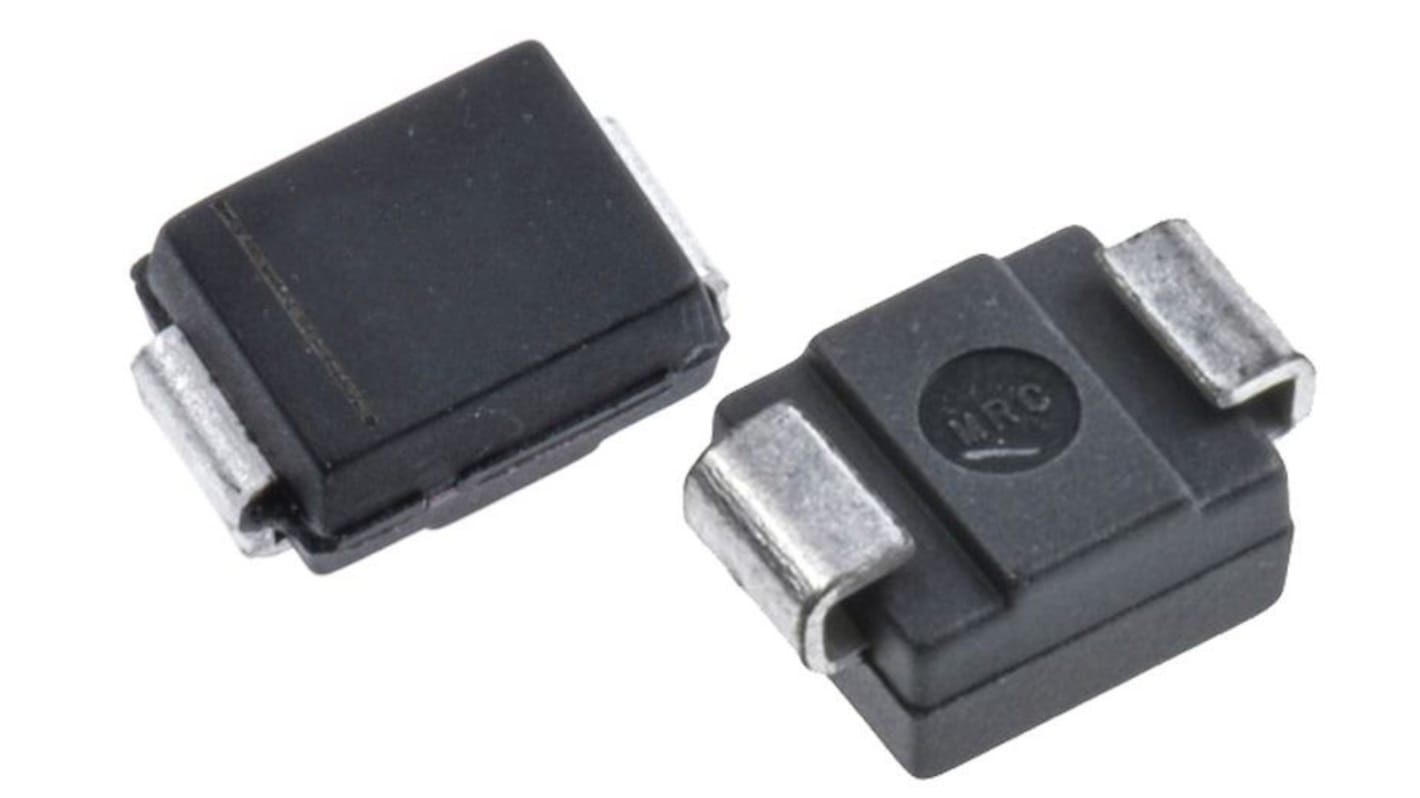

Bourns 1.5SMBJ60A-H 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin DO-214AA

View all TVS Diodes
Bulk discount available
View bulk pricing options

Subtotal (1 pack of 10 units)*

£4.55

(exc. VAT)

£5.46

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Pack*
10 - 10£0.455£4.55
20 - 40£0.447£4.47
50 - 90£0.437£4.37
100 - 240£0.348£3.48
250 +£0.342£3.42

*price indicative

Packaging Options:
RS Stock No.:
262-8041
Mfr. Part No.:
1.5SMBJ60A-H
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Direction Type

Uni-Directional

Diode Configuration

Single

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

73.7V

Mount Type

Surface

Package Type

DO-214AA (SMB)

Maximum Reverse Stand-off Voltage Vwm

60V

Pin Count

2

Peak Pulse Power Dissipation Pppm

1.5kW

Minimum Operating Temperature

-55°C

ESD Protection

Yes

Clamping Voltage VC

96.8V

Maximum Peak Pulse Current Ippm

77.5A

Number of Elements per Chip

1

Maximum Operating Temperature

150°C

Standards/Approvals

IEC 61000-4-4 EFT, IEC 61000-4-5 Surge, RoHS, IEC 61000-4-2

Series

1.5SMBJ

Automotive Standard

No

COO (Country of Origin):
TW
The Bourns offers transient voltage suppressor diodes for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format. Typical fast response times are less than 1.0 picosecond from 0 V to minimum breakdown voltage. Bourns chip diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.

RoHS compliant and halogen free

DO-214AA (SMB) package
