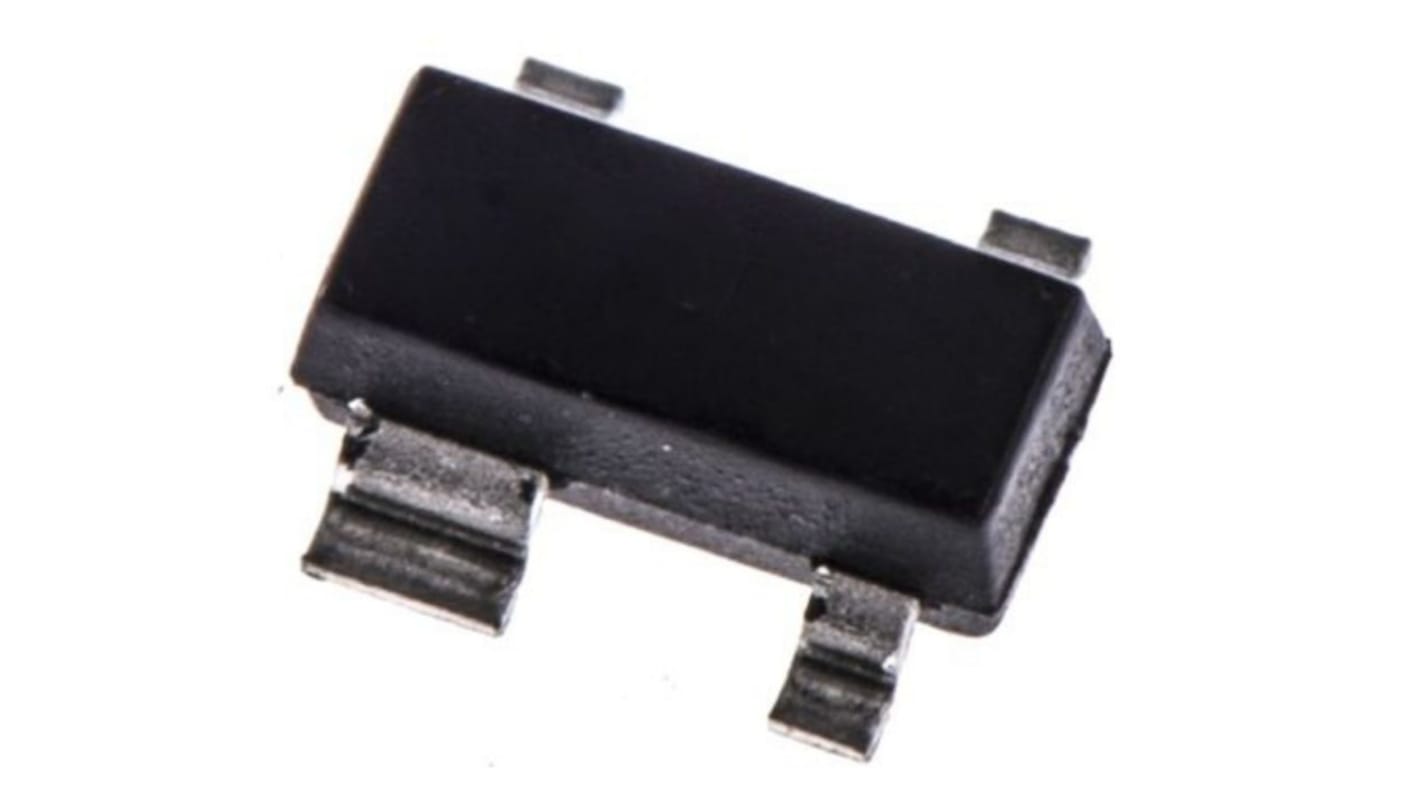

Infineon Bi-Directional TVS Diode, 245 W SOT-143
- RS Stock No.:
- 258-7056
- Mfr. Part No.:
- DSL70E6327HTSA1
- Brand:
- Infineon
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 258-7056
- Mfr. Part No.:
- DSL70E6327HTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Diode Configuration | Array | |
| Product Type | TVS Diode | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 3V | |
| Mount Type | Surface | |
| Package Type | SOT-143 | |
| Maximum Reverse Stand-off Voltage Vwm | 50V | |
| Peak Pulse Power Dissipation Pppm | 245W | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 9V | |
| Maximum Peak Pulse Current Ippm | 27A | |
| Test Current It | 27A | |
| Maximum Operating Temperature | 125°C | |
| Series | DSL70 | |
| Standards/Approvals | IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 5nA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Diode Configuration Array | ||
Product Type TVS Diode | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage Vbr 3V | ||
Mount Type Surface | ||
Package Type SOT-143 | ||
Maximum Reverse Stand-off Voltage Vwm 50V | ||
Peak Pulse Power Dissipation Pppm 245W | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 9V | ||
Maximum Peak Pulse Current Ippm 27A | ||
Test Current It 27A | ||
Maximum Operating Temperature 125°C | ||
Series DSL70 | ||
Standards/Approvals IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 5nA | ||
The Infineon silicon TVS diodes array is used for ESD or transient protection of ADSL, VDSL,ISDN, WAN, LAN, I2C bus, microcontroller inputs, video and other high speed data lines in telecom applications. It has very low capacitance.
Extremely low reverse current
RoHS compliant
