Name: DiodesZetex TVS Diode, 300 mW UDFN-1608-2
Brand: DiodesZetex
SKU: 254-8555
Price: 0.11 GBP
Availability: OutOfStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Product Type	TVS Diode
	Minimum Breakdown Voltage Vbr	6V
	Mount Type	PCB

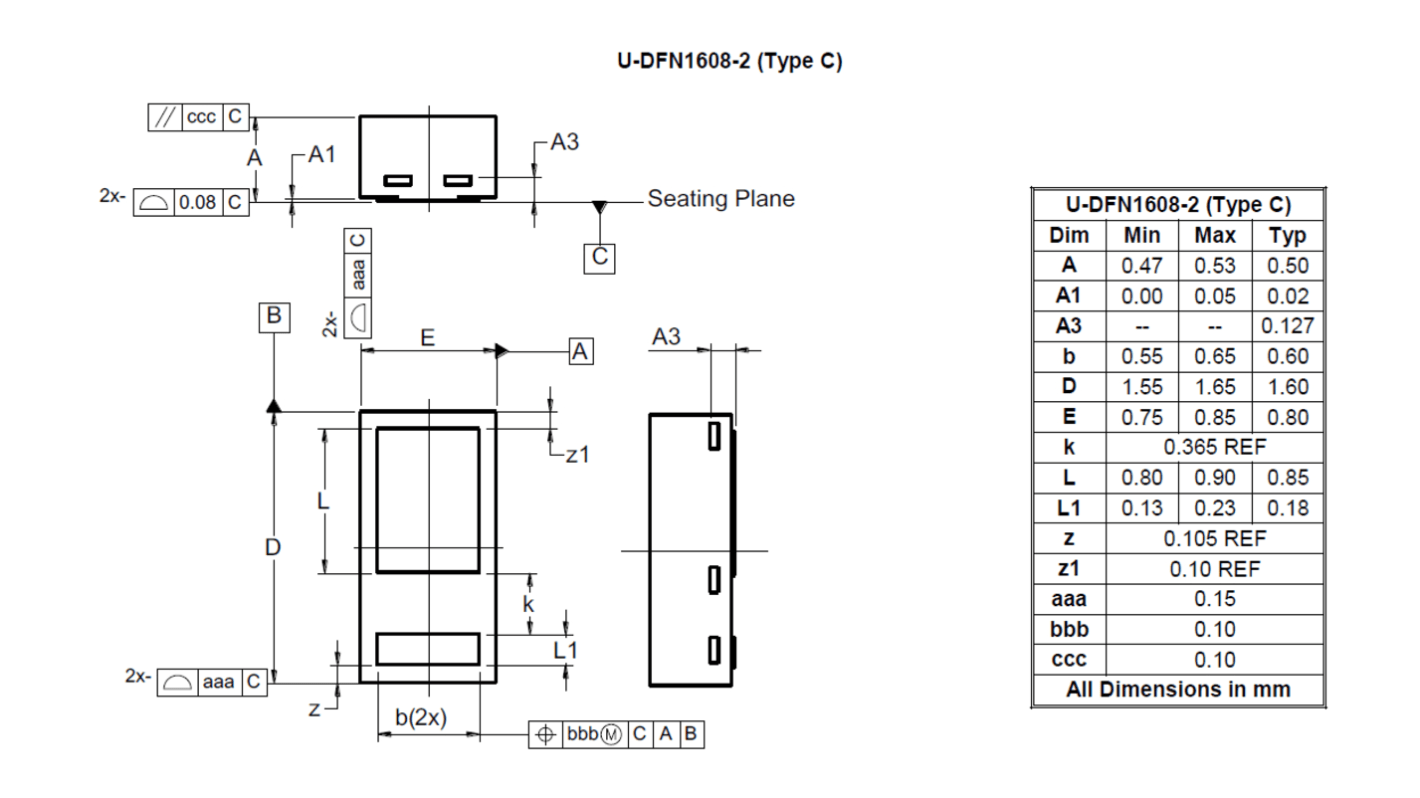

	Package Type	UDFN-1608-2
	Maximum Reverse Stand-off Voltage Vwm	5V
	Peak Pulse Power Dissipation Pppm	300mW
	ESD Protection	Yes
	Maximum Peak Pulse Current Ippm	80A
	Clamping Voltage VC	15V
	Test Current It	1A
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	150°C
	Length	0.85mm
	Height	0.53mm
	Standards/Approvals	ISO, UL, RoHS, EC 61000-4-2
	Automotive Standard	AEC-Q101
	Maximum Reverse Leakage Current	200nA

	Select all
	Brand DiodesZetex
	Product Type TVS Diode
	Minimum Breakdown Voltage Vbr 6V
	Mount Type PCB
	Package Type UDFN-1608-2
	Maximum Reverse Stand-off Voltage Vwm 5V
	Peak Pulse Power Dissipation Pppm 300mW
	ESD Protection Yes
	Maximum Peak Pulse Current Ippm 80A
	Clamping Voltage VC 15V
	Test Current It 1A
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 150°C
	Length 0.85mm
	Height 0.53mm
	Standards/Approvals ISO, UL, RoHS, EC 61000-4-2
	Automotive Standard AEC-Q101
	Maximum Reverse Leakage Current 200nA

The DiodeZetex one channel high surge TVS diode provides ESD protection per IEC 61000-4-2 Standards.

One channel of ESD protection

Low channel input capacitance

DiodesZetex TVS Diode, 300 mW UDFN-1608-2
