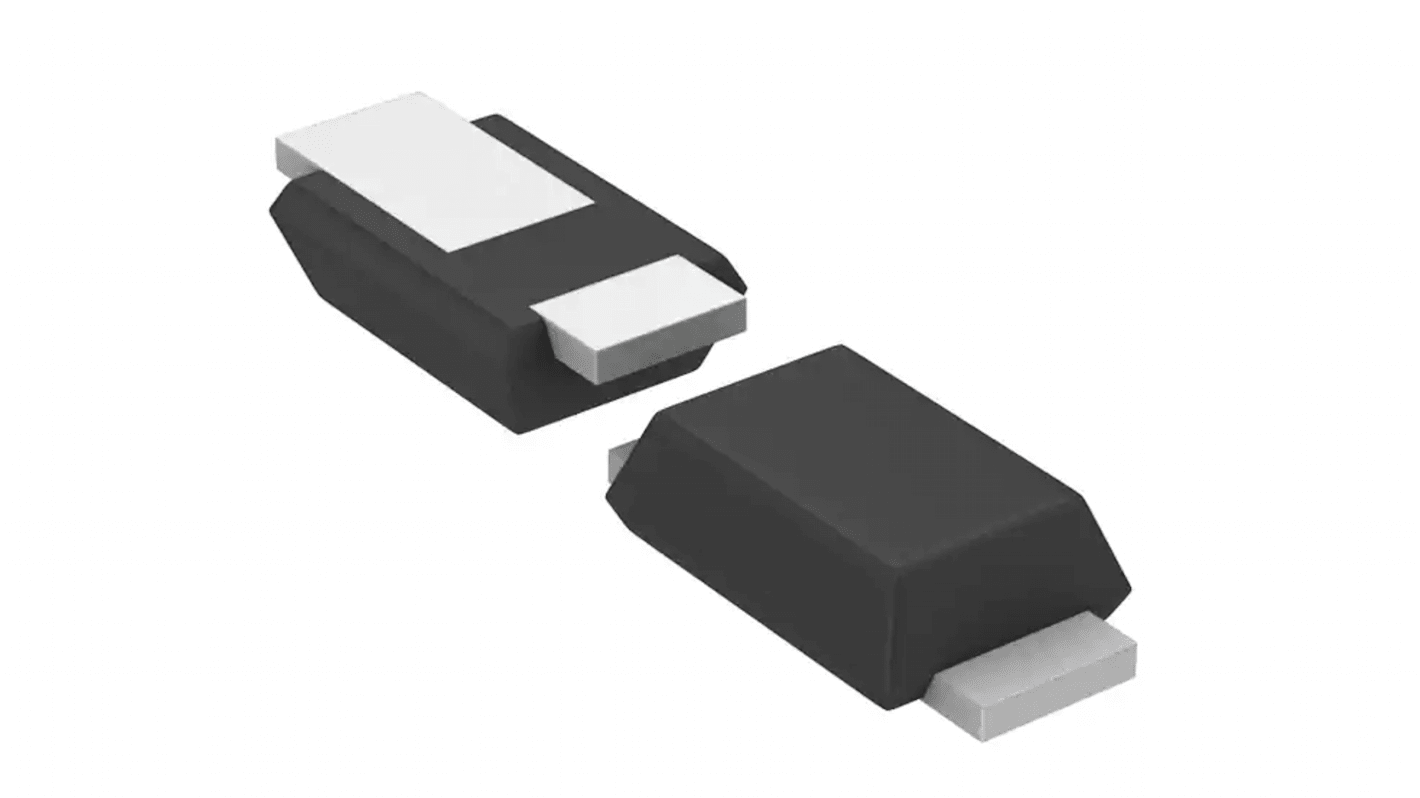

ROHM VS18VUA1VWMTFTR Uni-Directional TVS Diode, 1 W PMDE

View all TVS Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
246-4022
Mfr. Part No.:
VS18VUA1VWMTFTR
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Product Type

TVS Diode

Diode Configuration

Single

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

20V

Mount Type

Through Hole, Surface

Package Type

PMDE

Maximum Reverse Stand-off Voltage Vwm

18V

Peak Pulse Power Dissipation Pppm

1W

Minimum Operating Temperature

-55°C

Maximum Peak Pulse Current Ippm

6.8A

ESD Protection

Yes

Clamping Voltage VC

29.2V

Maximum Operating Temperature

150°C

Height

1mm

Length

2.3mm

Series

VS

Standards/Approvals

RoHS, IEC 61000-4-2

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

0.1μA

The ROHM VS series is transient voltage suppressor which are available in PMDE package and have silicon epitaxial planar structure and can be used in surge protection and voltage regulation applications.

High reliability

Small mold type
