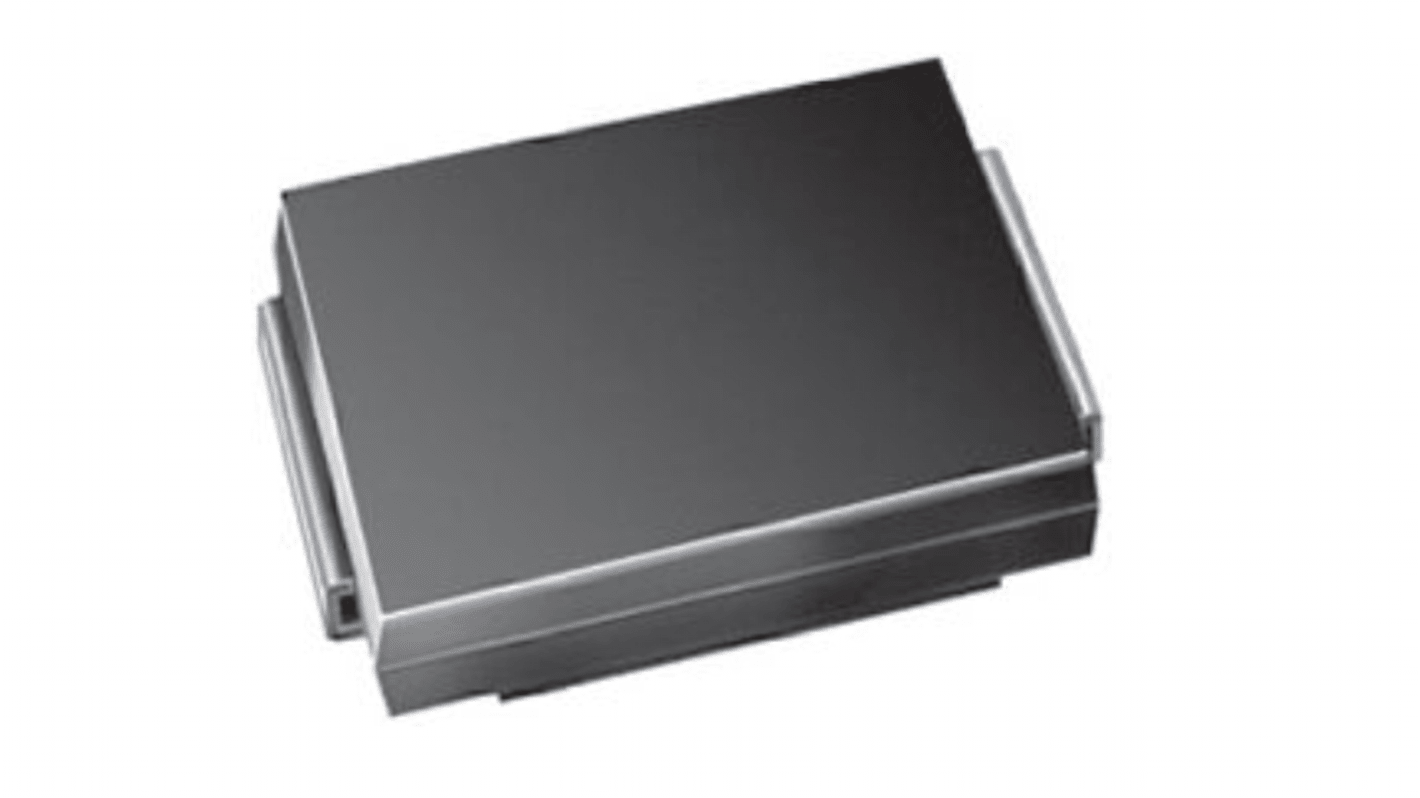

Vishay Bi-Directional TVS Diode, 3 kW DO-214AB

View all TVS Diodes

Subtotal (1 reel of 850 units)*

£529.55

(exc. VAT)

£635.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
850 +£0.623£529.55

*price indicative

RS Stock No.:
243-7007
Mfr. Part No.:
SMC3K28CAHM3_A/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

TVS Diode

Direction Type

Bi-Directional

Minimum Breakdown Voltage Vbr

31.1V

Mount Type

Surface

Package Type

DO-214AB (SMC)

Maximum Reverse Stand-off Voltage Vwm

28V

Peak Pulse Power Dissipation Pppm

3kW

ESD Protection

Yes

Clamping Voltage VC

45.4V

Minimum Operating Temperature

-55°C

Test Current It

1mA

Maximum Peak Pulse Current Ippm

66.1A

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS

Width

2.62 mm

Height

6.22mm

Series

SMC3K

Length

7.11mm

Maximum Reverse Leakage Current

1μA

Automotive Standard

AEC-Q101

The Vishay Surface mount TRANSZORB transient voltage suppressors use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.

Available in bidirectional polarity only

3000 W peak pulse power capability with a (10/1000 μs) waveform

Excellent clamping capability

Very fast response time

Low incremental surge resistance

Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Not recommended for PCB bottom side wave mounting

AEC-Q101 qualified
