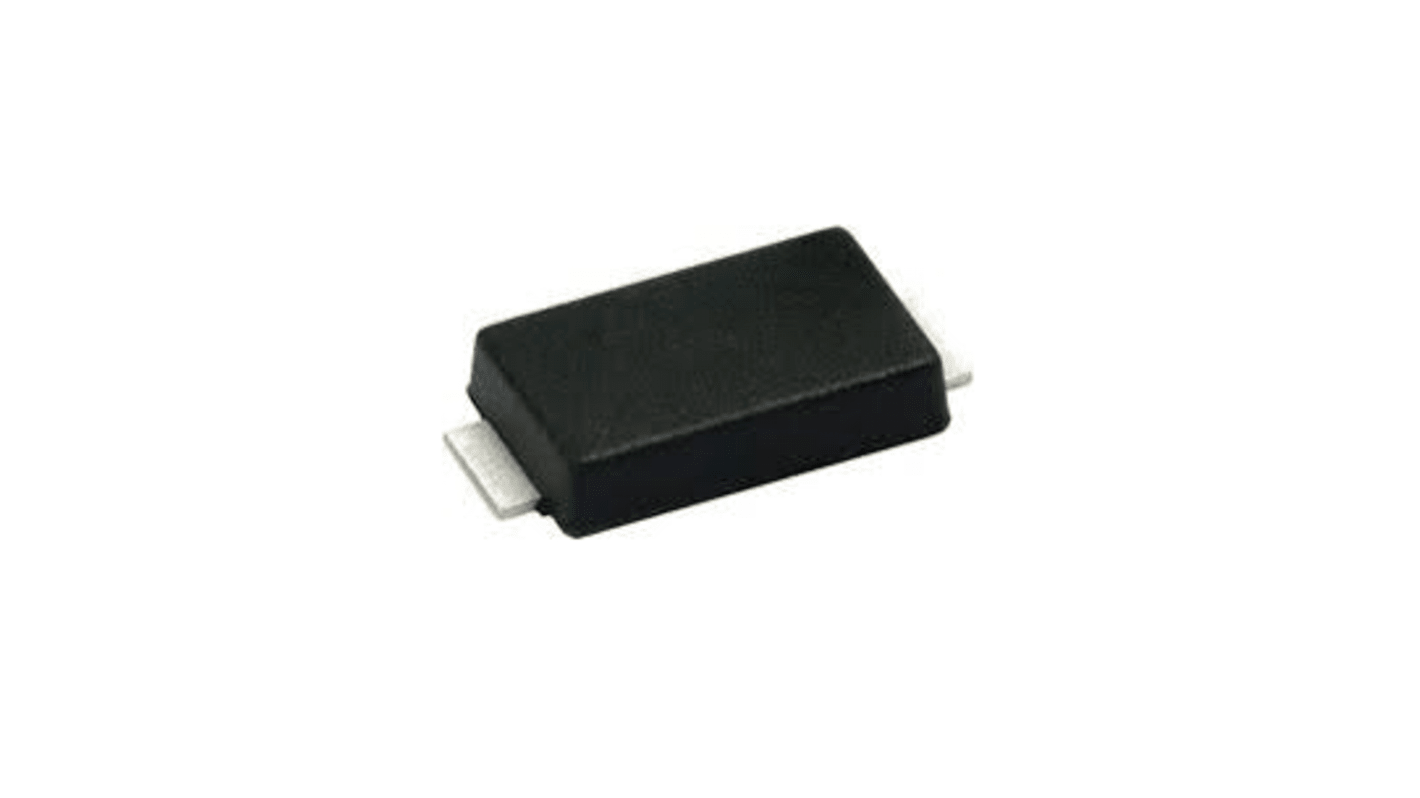

Vishay 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-221

View all TVS Diodes

Subtotal (1 reel of 3500 units)*

£311.50

(exc. VAT)

£374.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 7,000 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3500 +£0.089£311.50

*price indicative

RS Stock No.:
233-0954
Mfr. Part No.:
SMA6F78A-M3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Product Type

TVS Diode

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

86.7V

Mount Type

Surface

Package Type

DO-221

Maximum Reverse Stand-off Voltage Vwm

78V

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

Test Current It

1mA

ESD Protection

Yes

Clamping Voltage VC

125V

Maximum Peak Pulse Current Ippm

24.6A

Minimum Operating Temperature

-55°C

Number of Elements per Chip

1

Maximum Operating Temperature

175°C

Standards/Approvals

No

Length

4.35mm

Series

eSMP

Width

2.7 mm

Height

1mm

Maximum Reverse Leakage Current

1μA

Automotive Standard

No

The Vishay transient voltage suppressor comes in very low profile (typical height of 0.95 mm) and ideal for automated placement. It has 600W peak pulse power and 78V stand-off voltage. It meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.

Excellent clamping capability

Uni-directional polarity
