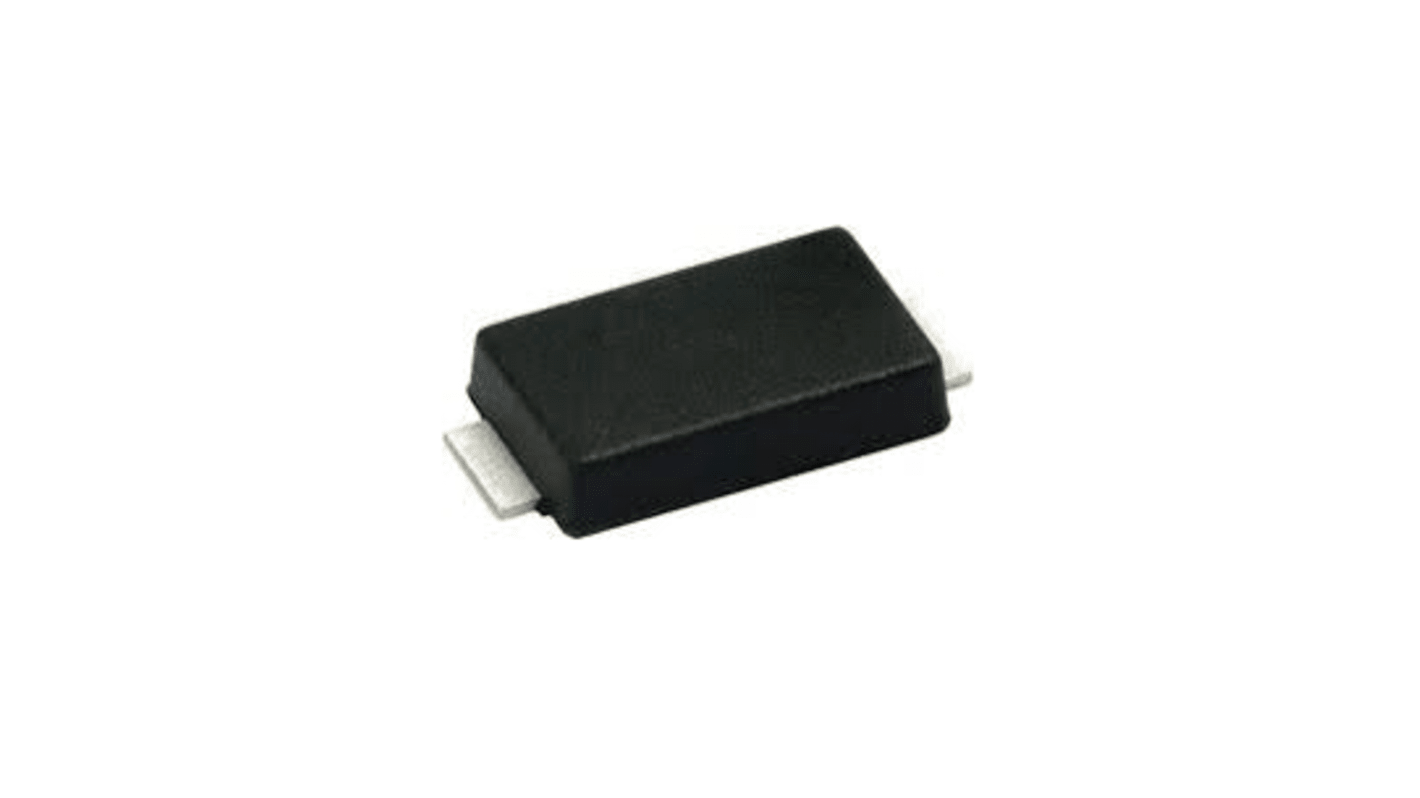

Vishay 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-221

View all TVS Diodes
Bulk discount available

Subtotal (1 reel of 3500 units)*

£234.50

(exc. VAT)

£280.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 3,500 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3500 - 3500£0.067£234.50
7000 +£0.065£227.50

*price indicative

RS Stock No.:
233-0946
Mfr. Part No.:
SMA6F58A-M3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Direction Type

Uni-Directional

Product Type

TVS Diode

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

64.4V

Mount Type

Surface

Package Type

DO-221

Maximum Reverse Stand-off Voltage Vwm

58V

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

Maximum Peak Pulse Current Ippm

33A

Test Current It

1mA

Minimum Operating Temperature

-55°C

Clamping Voltage VC

93.8V

ESD Protection

Yes

Number of Elements per Chip

1

Maximum Operating Temperature

175°C

Series

eSMP

Standards/Approvals

No

Length

4.35mm

Height

1mm

Maximum Reverse Leakage Current

1μA

Automotive Standard

No

The Vishay transient voltage suppressor comes in very low profile (typical height of 0.95 mm) and ideal for automated placement. It has 600W peak pulse power and 58V stand-off voltage. It meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.

Excellent clamping capability

Uni-directional polarity
