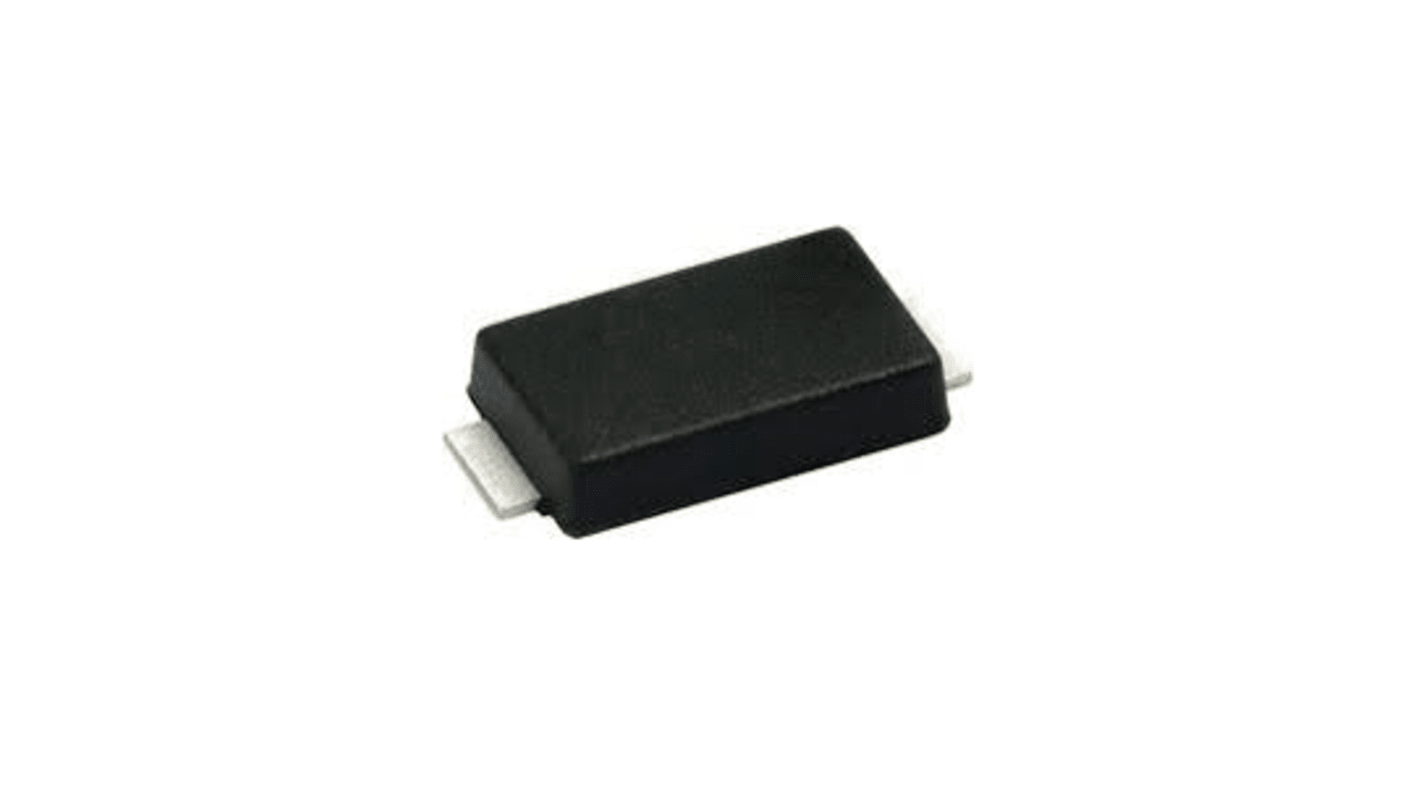

Vishay SMA6F100A-M3/H, Uni-Directional TVS Diode, 600W, 2-Pin DO-221AC
- RS Stock No.:
- 233-0914
- Mfr. Part No.:
- SMA6F100A-M3/H
- Brand:
- Vishay
Bulk discount available
Subtotal (1 reel of 3500 units)*
£311.50
(exc. VAT)
£374.50
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 3,500 unit(s), ready to ship
Units | Per unit | Per Reel* |
---|---|---|
3500 - 3500 | £0.089 | £311.50 |
7000 + | £0.085 | £297.50 |
*price indicative
- RS Stock No.:
- 233-0914
- Mfr. Part No.:
- SMA6F100A-M3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Diode Configuration | Single | |
Direction Type | Uni-Directional | |
Maximum Clamping Voltage | 162V | |
Minimum Breakdown Voltage | 111V | |
Mounting Type | Surface Mount | |
Package Type | DO-221AC | |
Pin Count | 2 | |
Peak Pulse Power Dissipation | 600W | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 162V | ||
Minimum Breakdown Voltage 111V | ||
Mounting Type Surface Mount | ||
Package Type DO-221AC | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 600W | ||
Number of Elements per Chip 1 | ||
The Vishay transient voltage suppressor comes in very low profile (typical height of 0.95 mm) and ideal for automated placement. It has 600W peak pulse power and 100V stand-off voltage. It meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Excellent clamping capability
Uni-directional polarity
Uni-directional polarity
