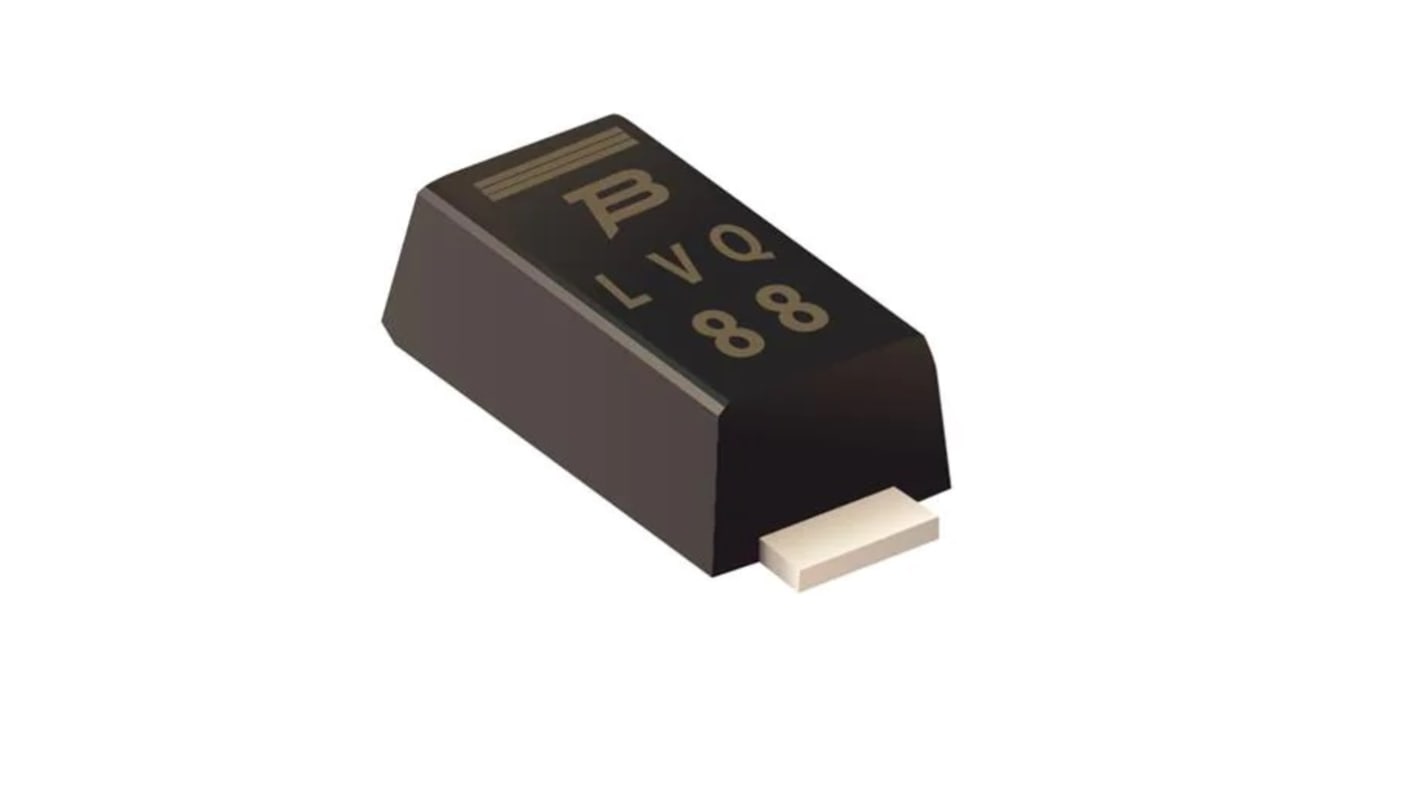

Bourns SMF4L6.0A-Q 1-Element Uni-Directional TVS Diode, 400 W, 2-Pin SOD-123

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 25 units)*

£5.625

(exc. VAT)

£6.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 25£0.225£5.63
50 - 75£0.221£5.53
100 - 225£0.152£3.80
250 - 975£0.15£3.75
1000 +£0.104£2.60

*price indicative

Packaging Options:
RS Stock No.:
223-4626
Mfr. Part No.:
SMF4L6.0A-Q
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Diode Configuration

Single

Product Type

TVS Diode

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

7.37V

Mount Type

Surface

Package Type

SOD-123

Maximum Reverse Stand-off Voltage Vwm

85V

Pin Count

2

Peak Pulse Power Dissipation Pppm

400W

Test Current It

10mA

Clamping Voltage VC

6V

Minimum Operating Temperature

-55°C

ESD Protection

Yes

Maximum Operating Temperature

150°C

Number of Elements per Chip

1

Height

0.22mm

Width

0.25 mm

Length

0.27mm

Series

SMF

Standards/Approvals

No

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

400μA

The Bourns offers Transient Voltage Suppressor Diode for surge and ESD protection applications, in compact chip package SOD-123FL size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 85 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage. The Bourns Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.

Surface Mount SOD-123FL package

Standoff Voltage: 5 to 85 volts

Power Dissipation: 400 watts
