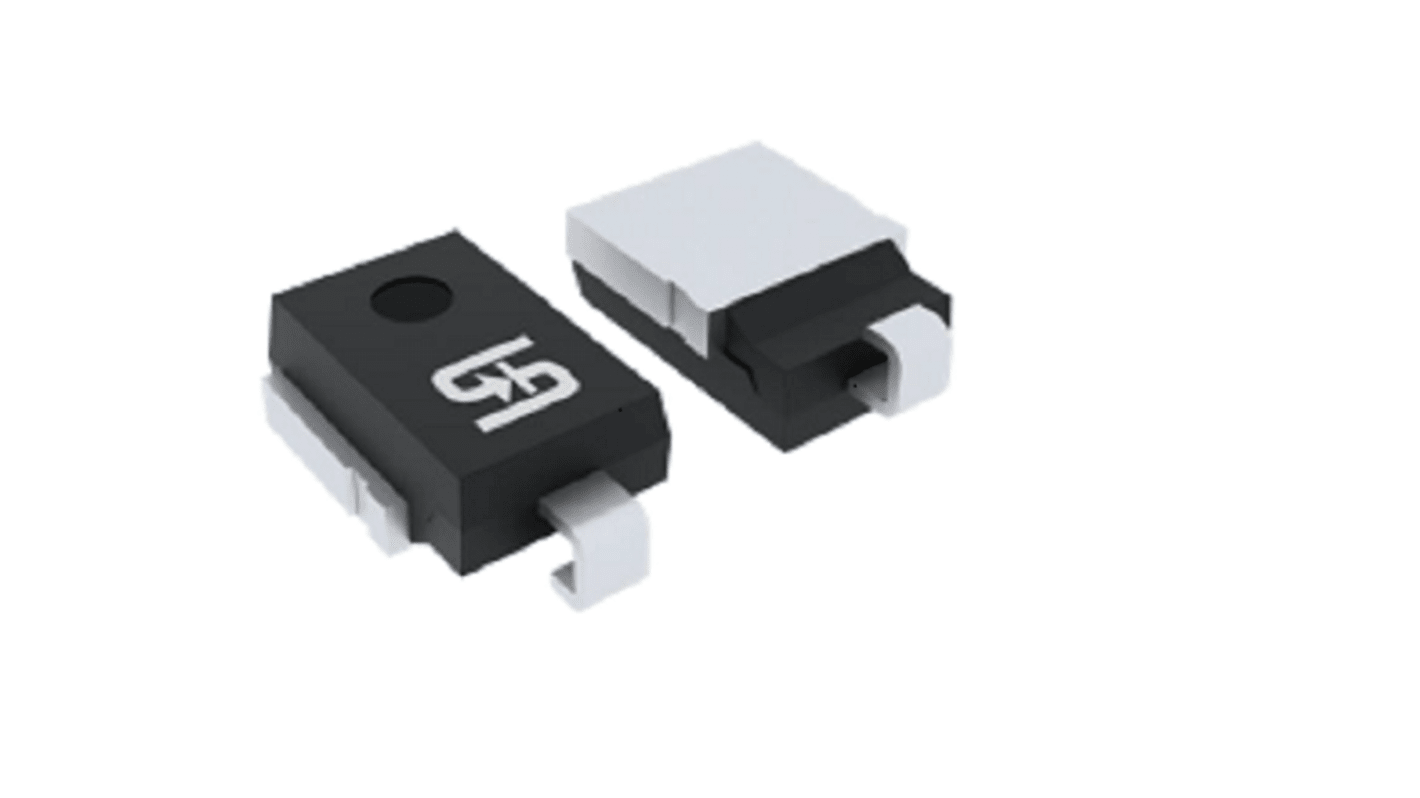

Taiwan Semiconductor TLD5S26AH 3-Element Uni-Directional TVS Diode, 3.6 kW, 2-Pin DO-218

View all TVS Diodes

Subtotal (1 pack of 5 units)*

£6.72

(exc. VAT)

£8.065

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 745 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.344£6.72

*price indicative

Packaging Options:
RS Stock No.:
216-9537
Mfr. Part No.:
TLD5S26AH
Brand:
Taiwan Semiconductor
Find similar products by selecting one or more attributes.
Select all

Brand

Taiwan Semiconductor

Direction Type

Uni-Directional

Diode Configuration

Single

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

28.9V

Mount Type

Surface

Package Type

DO-218

Maximum Reverse Stand-off Voltage Vwm

26V

Pin Count

2

Peak Pulse Power Dissipation Pppm

3.6kW

Maximum Peak Pulse Current Ippm

86A

Test Current It

5mA

Minimum Operating Temperature

-55°C

Clamping Voltage VC

42.1V

Maximum Operating Temperature

175°C

Number of Elements per Chip

3

Height

5.5mm

Length

16mm

Standards/Approvals

FBI

Width

10.5 mm

Maximum Reverse Leakage Current

150μA

Automotive Standard

AEC-Q101

The Taiwan semiconductor transient voltage suppressor diodes, more commonly known as TVS diodes, are used to protect integrated circuits (ICs). TVS diodes protect semiconductors and sensitive components against high transient voltage spikes (overvoltage).TVS diodes are offered in both through hole and surface mount packages. They can be unidirectional or bidirectional. Unidirectional TVS diodes will only allow positive or negative voltage whereas bidirectional diodes can operate at both positive and negative voltages.

AEC-Q101 qualified Junction passivation optimized design technology TJ =175 °C capability suitable for high reliability and automotive requirement Moisture sensitivity level 1, per J-STD-032
