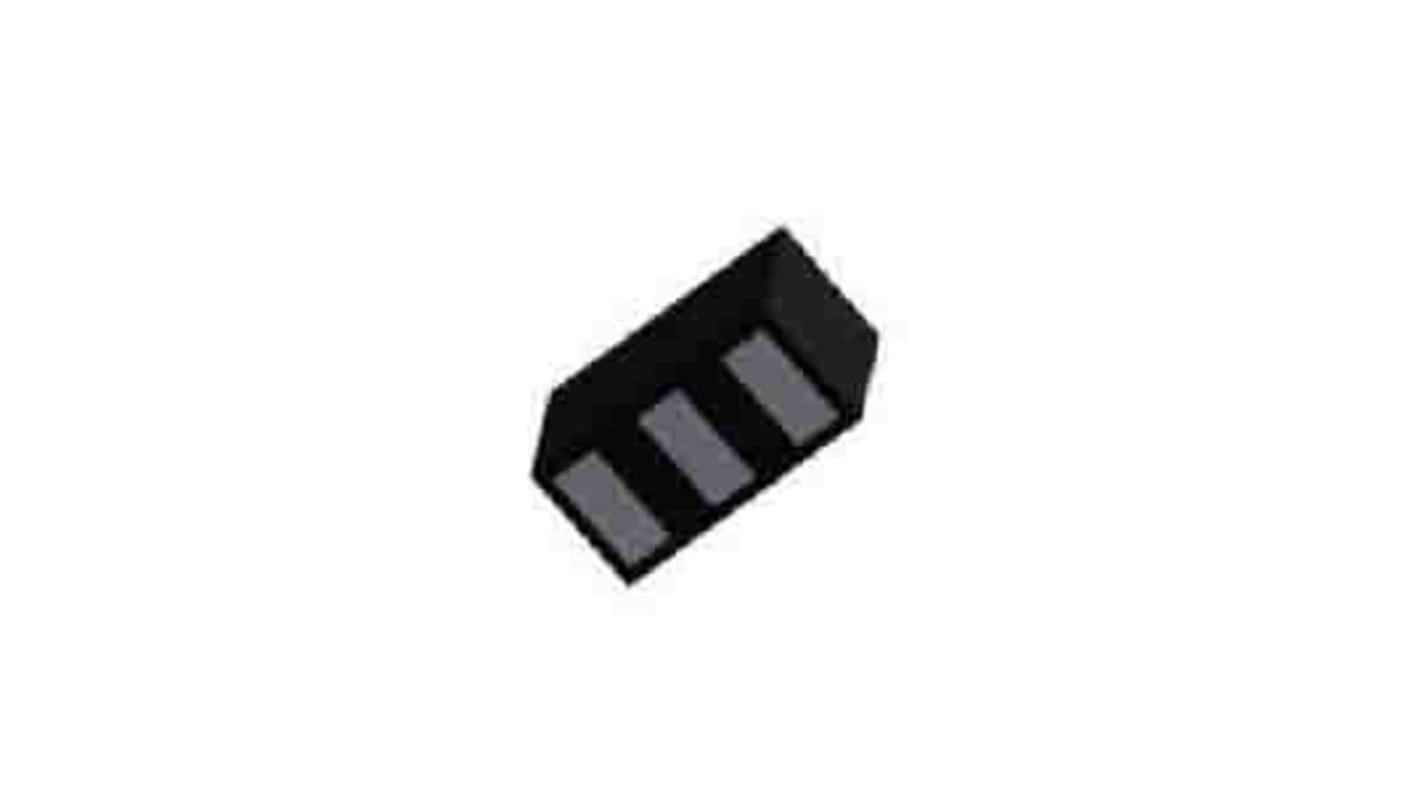

STMicroelectronics 3-Element Bi-Directional TVS Diode, 15 W, 3-Pin SOD-882

View all TVS Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
213-3375
Mfr. Part No.:
ESDX051-2BU3
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Direction Type

Bi-Directional

Product Type

TVS Diode

Diode Configuration

Common Anode

Minimum Breakdown Voltage Vbr

6V

Mount Type

Through Hole

Package Type

SOD-882

Maximum Reverse Stand-off Voltage Vwm

51V

Pin Count

3

Peak Pulse Power Dissipation Pppm

15W

Maximum Peak Pulse Current Ippm

1A

Minimum Operating Temperature

-55°C

ESD Protection

Yes

Clamping Voltage VC

15V

Number of Elements per Chip

3

Maximum Operating Temperature

150°C

Height

0.23mm

Width

0.34 mm

Length

0.64mm

Standards/Approvals

No

Maximum Reverse Leakage Current

100nA

Automotive Standard

No

The STMicroelectronics ESD series is a s a bidirectional single line TVS diode designed to protect the data line or other I/O ports against ESD transients. The device is ideal for applications where reduced line capacitance and board space saving are required

Extra low diode capacitance: 0.13 pF

Bidirectional device, 2 lines in 0201

Low leakage current

ECOPACK2 compliant component

Complies with IEC 61000-4-2 level 4
