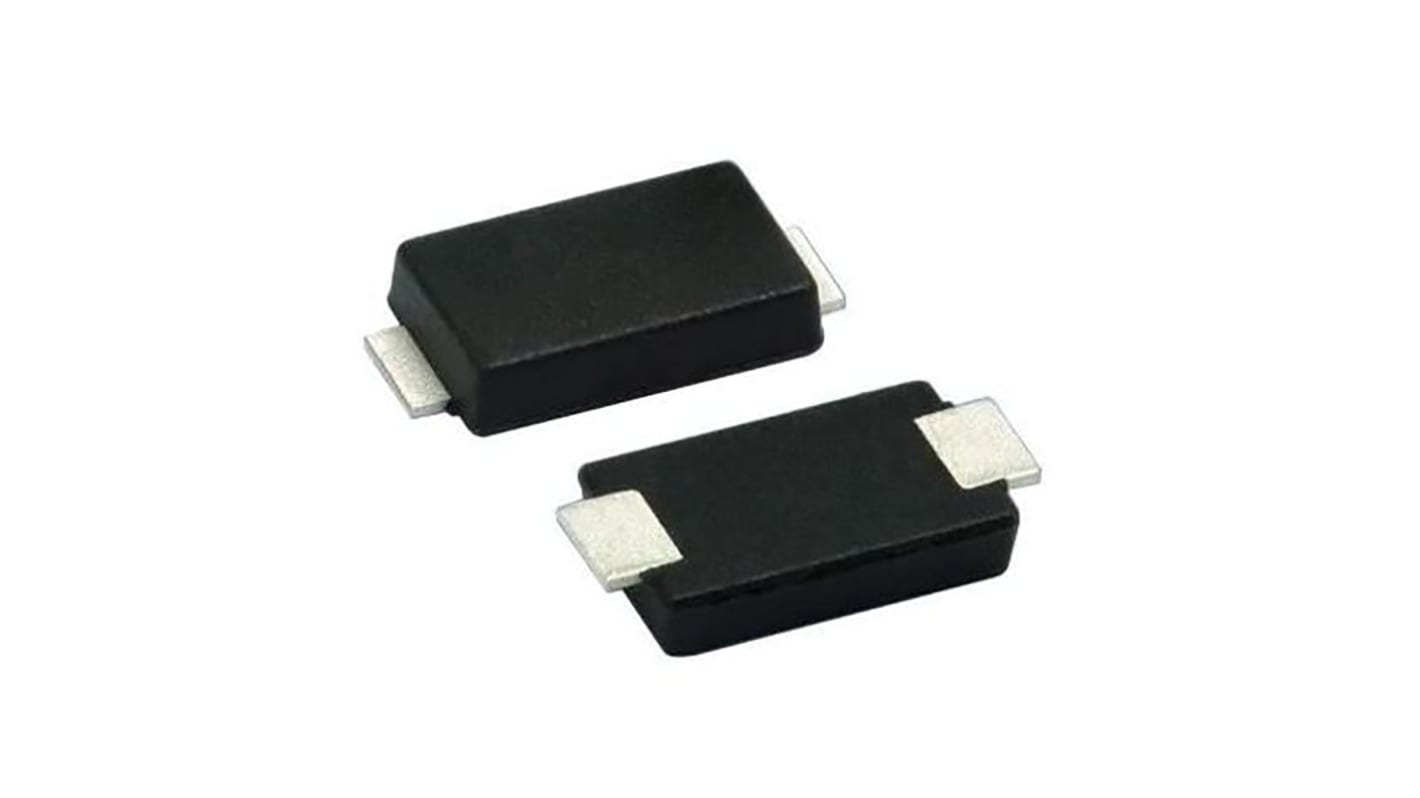

STMicroelectronics 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin SMA Flat

View all TVS Diodes

Subtotal (1 reel of 10000 units)*

£880.00

(exc. VAT)

£1,060.00

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
10000 +£0.088£880.00

*price indicative

RS Stock No.:
208-5095
Mfr. Part No.:
SMA6F36A
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

TVS Diode

Direction Type

Uni-Directional

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

44.2V

Mount Type

Surface

Package Type

SMA Flat

Maximum Reverse Stand-off Voltage Vwm

36V

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

Clamping Voltage VC

58.1V

Test Current It

1mA

Maximum Peak Pulse Current Ippm

10.3A

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Number of Elements per Chip

1

Width

2.9 mm

Length

4.6mm

Height

1.05mm

Standards/Approvals

No

Series

SMA6FxxA

Maximum Reverse Leakage Current

1μA

Automotive Standard

No

The STMicroelectronics TVS diode is designed to protect sensitive circuits against transient surges. It works with planar technology which makes it compatible with high end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.

Matte tin plating lead finishing

175°C maximum operating temperature

Up to 600W power capability
