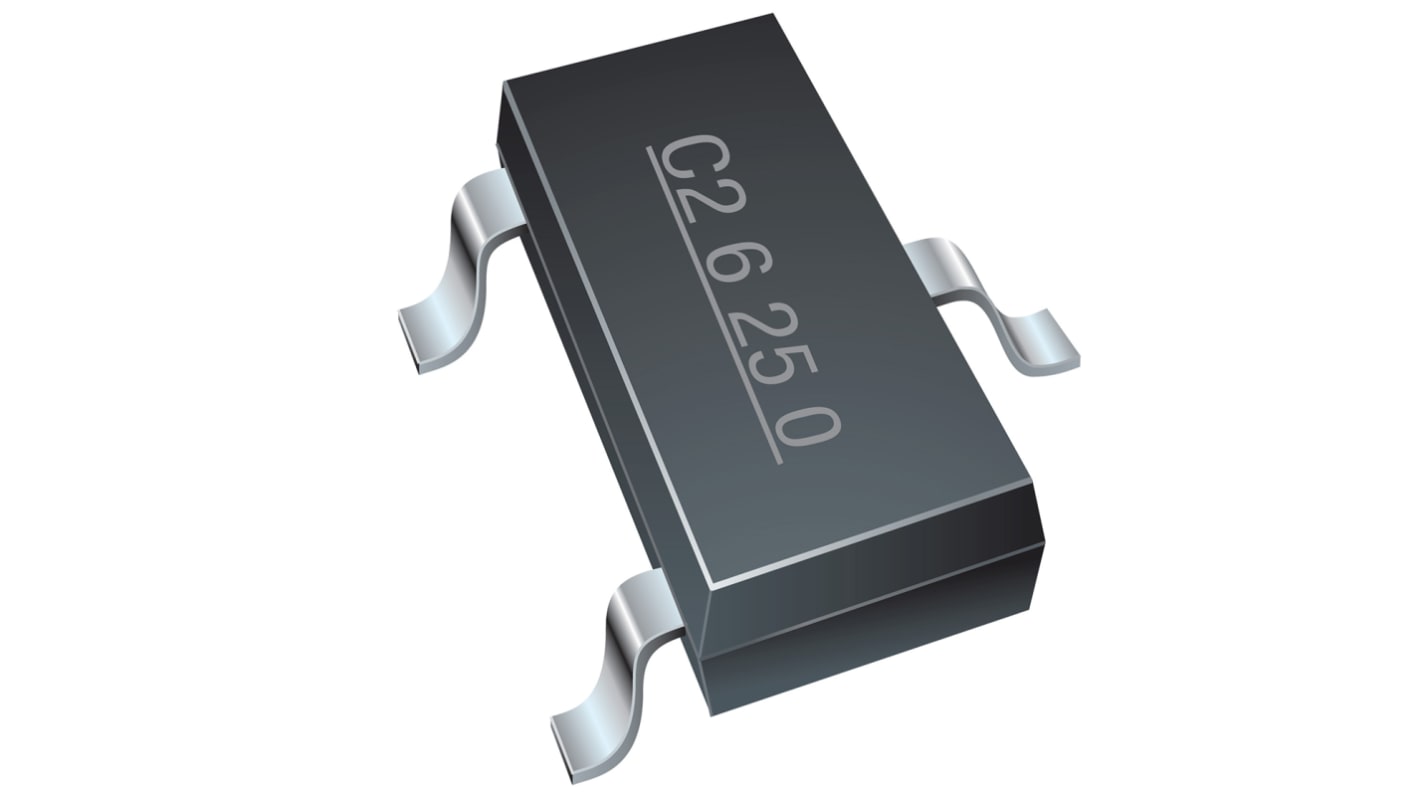

Bourns CDSOT23-T08LC-Q, Dual-Element Bi-Directional TVS Diode, 3-Pin SOT-23

View all TVS Diodes
Unavailable
RS will no longer stock this product.
RS Stock No.:
187-1414
Mfr. Part No.:
CDSOT23-T08LC-Q
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Direction Type

Bi-Directional

Diode Configuration

Array

Maximum Clamping Voltage

13.4V

Minimum Breakdown Voltage

8.5 (Max)V

Mounting Type

Surface Mount

Package Type

SOT-23

Maximum Reverse Stand-off Voltage

8V

Pin Count

3

Maximum Peak Pulse Current

34A

ESD Protection

Yes

Number of Elements per Chip

2

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+150 °C

Dimensions

2.8 x 1.2 x 0.84mm

Working Voltage

8V

Height

0.84mm

Length

2.8mm

Automotive Standard

AEC-Q101

Capacitance

5pF

Maximum Reverse Leakage Current

10µA

Test Current

1mA

Width

1.2mm

COO (Country of Origin):
PH
Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Transient Voltage Suppressor Array diodes for surge and ESD protection applications, in compact chip package SOT23 size format. The Transient Voltage Supressor Array series offers a choice of voltage types ranging from 3 V to 36 V. Bourns® Chip Diodes are easy to handle on standard pick and place equipment and their flat configuration minimizes roll away.

Protects one or two lines
Unidirectional and bidirectional configurations
ESD protection 30 kV max.
Applications
RS-232, RS-422 and RS-423 data lines
Portable electronics
Wireless bus protection
Control and monitoring systems
