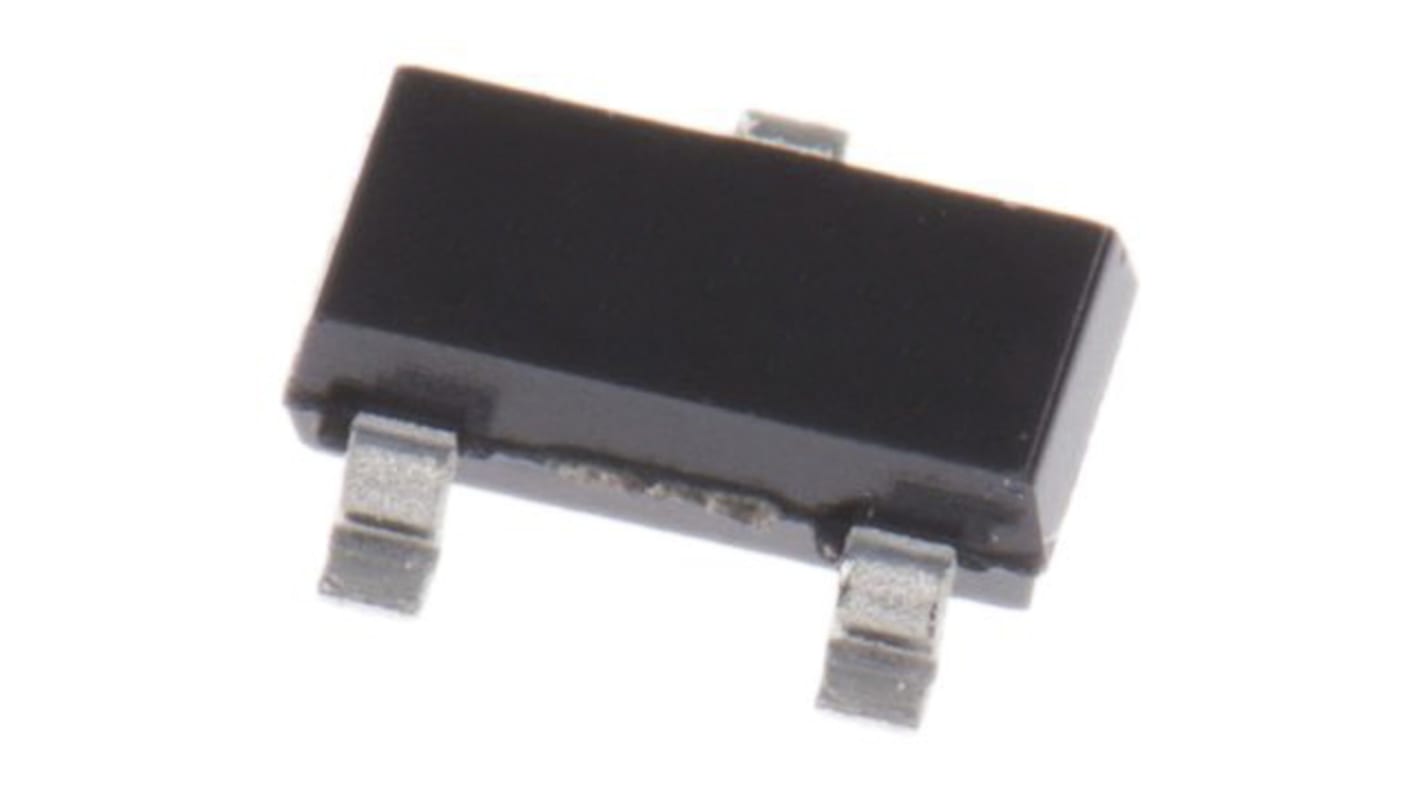

onsemi CM1213A-01SO, Triple-Element Uni-Directional ESD Protection Array, 225mW, 3-Pin SOT-23
- RS Stock No.:
- 184-4869P
- Mfr. Part No.:
- CM1213A-01SO
- Brand:
- onsemi
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 184-4869P
- Mfr. Part No.:
- CM1213A-01SO
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Array | |
| Direction Type | Uni-Directional | |
| Maximum Clamping Voltage | -1.7 V, 10V | |
| Minimum Breakdown Voltage | 6.5V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation | 225mW | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 3 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 3.04 x 1.4 x 1.01mm | |
| Maximum Reverse Leakage Current | 1µA | |
| Length | 3.04mm | |
| Height | 1.01mm | |
| Test Current | 10mA | |
| Automotive Standard | AEC-Q101 | |
| Capacitance | 1.2pF | |
| Width | 1.4mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Array | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage -1.7 V, 10V | ||
Minimum Breakdown Voltage 6.5V | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation 225mW | ||
ESD Protection Yes | ||
Number of Elements per Chip 3 | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 3.04 x 1.4 x 1.01mm | ||
Maximum Reverse Leakage Current 1µA | ||
Length 3.04mm | ||
Height 1.01mm | ||
Test Current 10mA | ||
Automotive Standard AEC-Q101 | ||
Capacitance 1.2pF | ||
Width 1.4mm | ||
- COO (Country of Origin):
- CN
Low Capacitance ESD Protection Array
One, Two, and Four Channels of ESD Protection Note: For 6 and 8-channel Devices, See the CM1213 Datasheet
Provides ESD Protection
±12 kV Contact Discharge
Low Channel Input Capacitance of 0.85 pF Typical
Minimal Capacitance Change with Temperature and Voltage
Channel Input Capacitance Matching of 0.02 pF Typical is Ideal for Differential Signals
Each CH (I/O) Pin Can Withstand Over 1000 ESD Strikes*
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements, PPAP Capable
These Devices are Pb-Free, Halogen Free/BFR Free
Applications
USB2.0 Ports at 480 Mbps in Desktop PCs, Notebooks and Peripherals
IEEE1394 Firewire® Ports at 400 Mbps/800 Mbps
DVI Ports, HDMI Ports in Notebooks, Set Top Boxes, Digital TVs, LCD Displays
Serial ATA Ports in Desktop PCs and Hard Disk Drives
PCI Express Ports
General Purpose High-Speed Data Line ESD Protection
Provides ESD Protection
±12 kV Contact Discharge
Low Channel Input Capacitance of 0.85 pF Typical
Minimal Capacitance Change with Temperature and Voltage
Channel Input Capacitance Matching of 0.02 pF Typical is Ideal for Differential Signals
Each CH (I/O) Pin Can Withstand Over 1000 ESD Strikes*
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements, PPAP Capable
These Devices are Pb-Free, Halogen Free/BFR Free
Applications
USB2.0 Ports at 480 Mbps in Desktop PCs, Notebooks and Peripherals
IEEE1394 Firewire® Ports at 400 Mbps/800 Mbps
DVI Ports, HDMI Ports in Notebooks, Set Top Boxes, Digital TVs, LCD Displays
Serial ATA Ports in Desktop PCs and Hard Disk Drives
PCI Express Ports
General Purpose High-Speed Data Line ESD Protection
Transient Voltage Suppressors, ON Semiconductor
