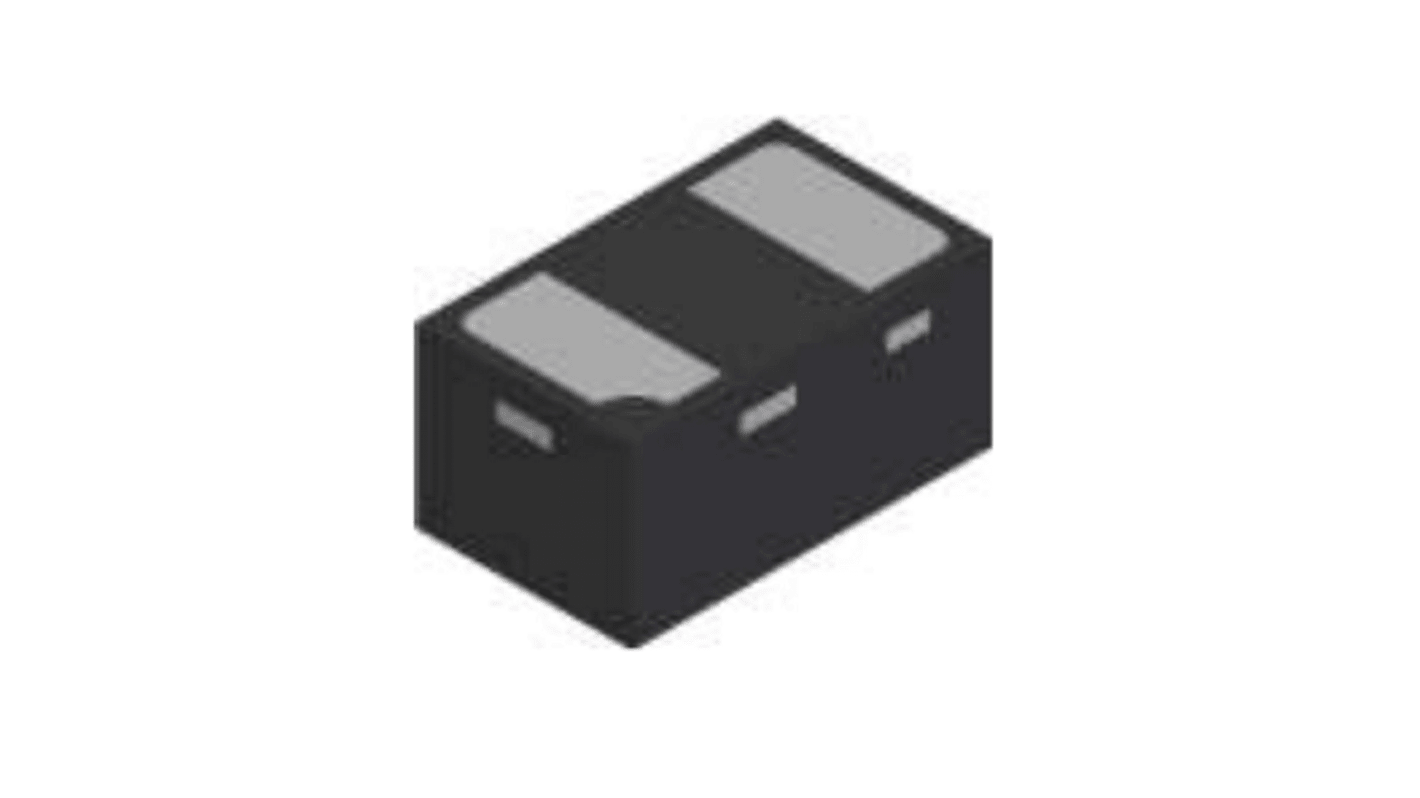

DiodesZetex D10V0H1U2LP-7B 1-Element Uni-Directional TVS Diode, 300 W, 2-Pin X1-DFN

View all TVS Diodes

Subtotal (1 pack of 100 units)*

£3.50

(exc. VAT)

£4.20

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Last RS stock
  • Final 11,700 unit(s), ready to ship
Units
Per unit
Per Pack*
100 +£0.035£3.50

*price indicative

Packaging Options:
RS Stock No.:
182-7015
Mfr. Part No.:
D10V0H1U2LP-7B
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Direction Type

Uni-Directional

Diode Configuration

Single

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

11.5V

Mount Type

Surface

Package Type

X1-DFN

Maximum Reverse Stand-off Voltage Vwm

10V

Pin Count

2

Peak Pulse Power Dissipation Pppm

300W

Clamping Voltage VC

20V

Maximum Peak Pulse Current Ippm

15A

ESD Protection

Yes

Minimum Operating Temperature

-65°C

Maximum Operating Temperature

150°C

Number of Elements per Chip

1

Width

0.67 mm

Length

1.07mm

Height

0.48mm

Standards/Approvals

No

Series

D10

Maximum Reverse Leakage Current

1μA

Automotive Standard

No

COO (Country of Origin):
CN
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.

Low Profile Package (0.53mm Max) and Ultra-Small PCB Footprint Area (1.08mm * 0.68mm Max) Suitable for Compact Portable Electronics

Provides ESD Protection

1 Channel of ESD Protection

Low Channel Input Capacitance

Applications

Cellular Handsets

Portable Electronics

Computers and Peripheral
