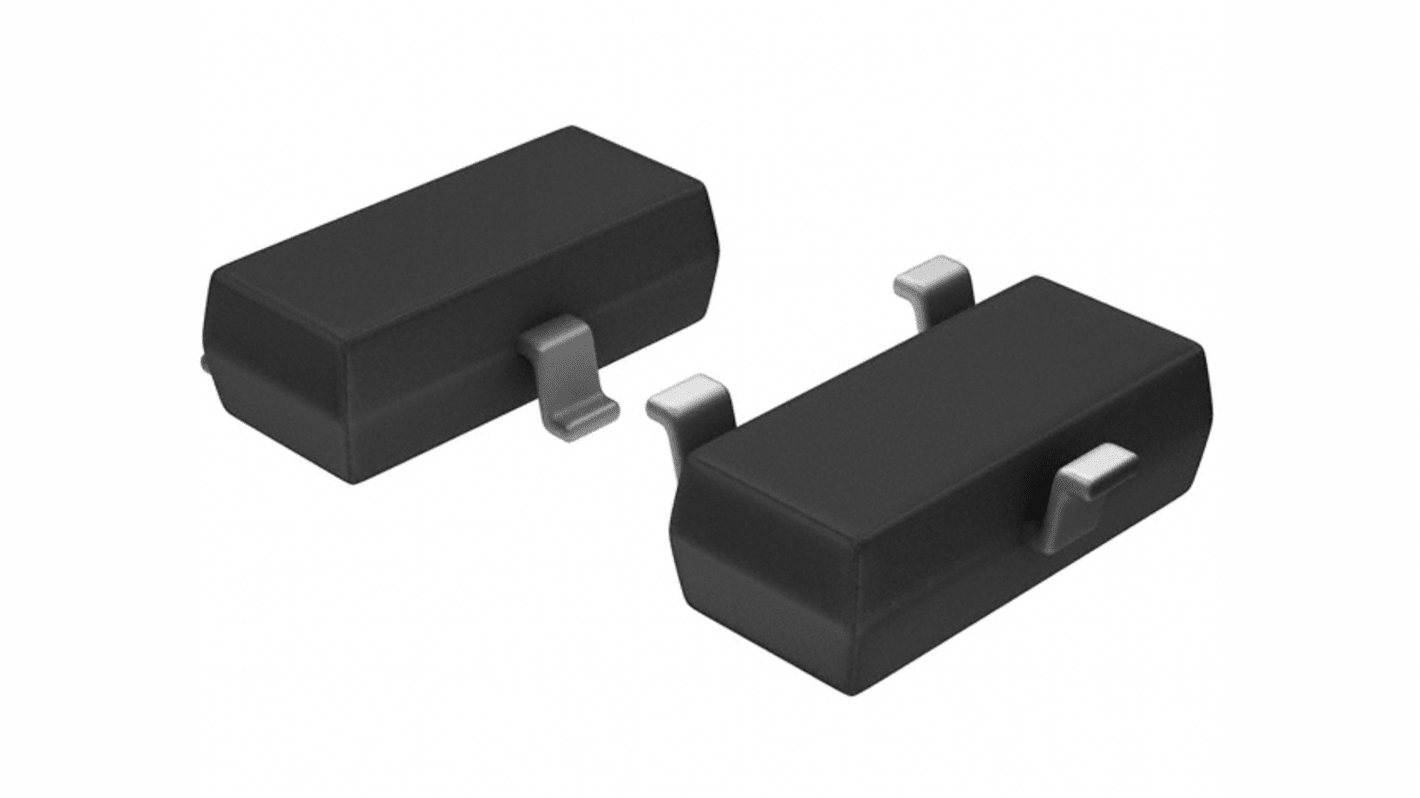

Vishay GSOT04C-E3-08, Dual-Element Bi-Directional TVS Diode, 564W, 3-Pin SOT-23
- RS Stock No.:
- 180-8825
- Mfr. Part No.:
- GSOT04C-E3-08
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 50 units)*
£8.85
(exc. VAT)
£10.60
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 6,500 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
50 - 450 | £0.177 | £8.85 |
500 - 1200 | £0.126 | £6.30 |
1250 - 2450 | £0.097 | £4.85 |
2500 - 4950 | £0.089 | £4.45 |
5000 + | £0.067 | £3.35 |
*price indicative
- RS Stock No.:
- 180-8825
- Mfr. Part No.:
- GSOT04C-E3-08
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Diode Configuration | Dual | |
Direction Type | Bi-Directional | |
Maximum Clamping Voltage | 9V | |
Minimum Breakdown Voltage | 5V | |
Mounting Type | Surface Mount | |
Package Type | SOT-23 | |
Pin Count | 3 | |
Peak Pulse Power Dissipation | 564W | |
Number of Elements per Chip | 2 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Diode Configuration Dual | ||
Direction Type Bi-Directional | ||
Maximum Clamping Voltage 9V | ||
Minimum Breakdown Voltage 5V | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation 564W | ||
Number of Elements per Chip 2 | ||
- COO (Country of Origin):
- CN
Vishay TVS Diode
The Vishay SOT-23 package, surface mount 2-line ESD protected bidirectional TVS diode has a stand-off voltage of 4V and reverse breakdown voltage of 6.1V. It has a peak pulse current rating of 30A.
Features and Benefits
• ESD capability: human body model: class H3B: > 8kV
• ESD immunity ±30kV contact discharge and ±30kV air discharge
• Halogen free and lead (Pb) free component
• Operating junction temperature ranges between -55°C and 150°C
• Space saving package
• ESD immunity ±30kV contact discharge and ±30kV air discharge
• Halogen free and lead (Pb) free component
• Operating junction temperature ranges between -55°C and 150°C
• Space saving package
Applications
• Automotive load dump
• Sensitive electronics protection
• Sensitive electronics protection
Certifications
• AEC-Q101 qualified
• e3 - Sn
• Green (5-2008)
• IEC 61000-4-2
• J-STD-020
• UL 94 V-0 listed
• e3 - Sn
• Green (5-2008)
• IEC 61000-4-2
• J-STD-020
• UL 94 V-0 listed
