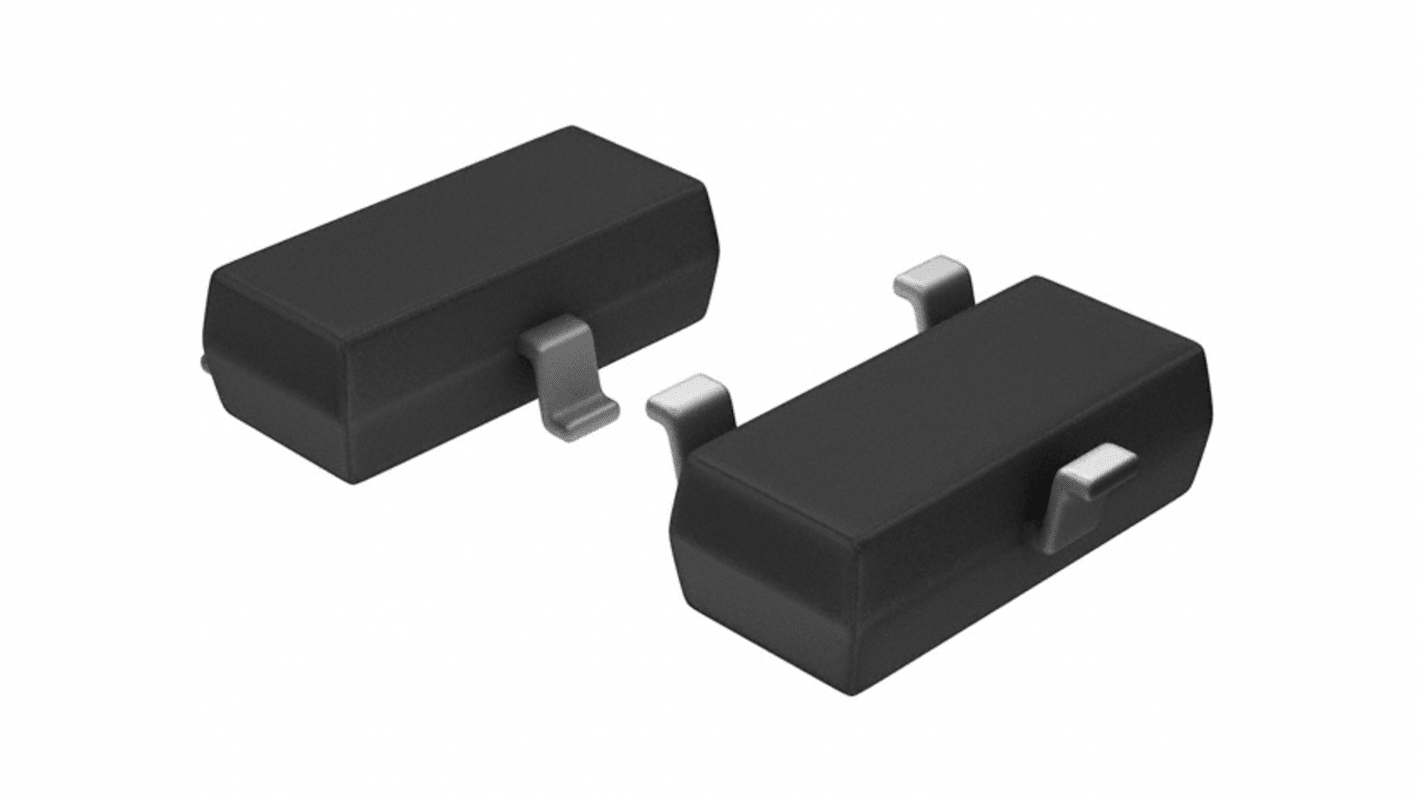

Vishay GSOT24C-HE3-08, Dual-Element Bi-Directional TVS Diode, 240W, 3-Pin SOT-23
- RS Stock No.:
- 180-8640
- Mfr. Part No.:
- GSOT24C-HE3-08
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 180-8640
- Mfr. Part No.:
- GSOT24C-HE3-08
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Dual | |
| Maximum Clamping Voltage | 41V | |
| Minimum Breakdown Voltage | 27V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation | 240W | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Direction Type Bi-Directional | ||
Diode Configuration Dual | ||
Maximum Clamping Voltage 41V | ||
Minimum Breakdown Voltage 27V | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation 240W | ||
Number of Elements per Chip 2 | ||
- COO (Country of Origin):
- CN
Vishay TVS Diode
The Vishay SOT-23 package, surface mount 2-line ESD protected bidirectional TVS diode has a stand-off voltage of 24V and breakdown voltage of 30V. It has a peak pulse current rating of 5A.
Features and Benefits
• ESD capability according to AEC-Q101: human body model: class H3B: > 8kV
• ESD immunity according IEC 61000-4-2: ±30kV contact discharge and ±30kV air discharge
• Halogen free and lead (Pb) free component
• Operating junction temperature ranges between -55°C and 150°C
• Space saving package
• ESD immunity according IEC 61000-4-2: ±30kV contact discharge and ±30kV air discharge
• Halogen free and lead (Pb) free component
• Operating junction temperature ranges between -55°C and 150°C
• Space saving package
Applications
• Automotive load dump
• Sensitive electronics protections like ICs, MOSFET, signal lines of sensor units for consumers, computers, industries and telecommunication
• Sensitive electronics protections like ICs, MOSFET, signal lines of sensor units for consumers, computers, industries and telecommunication
Certifications
• AEC-Q101 qualified
• e3 - Sn
• Green (5-2008)
• IEC 61000-4-2
• J-STD-020
• UL 94 V-0 listed
• e3 - Sn
• Green (5-2008)
• IEC 61000-4-2
• J-STD-020
• UL 94 V-0 listed
