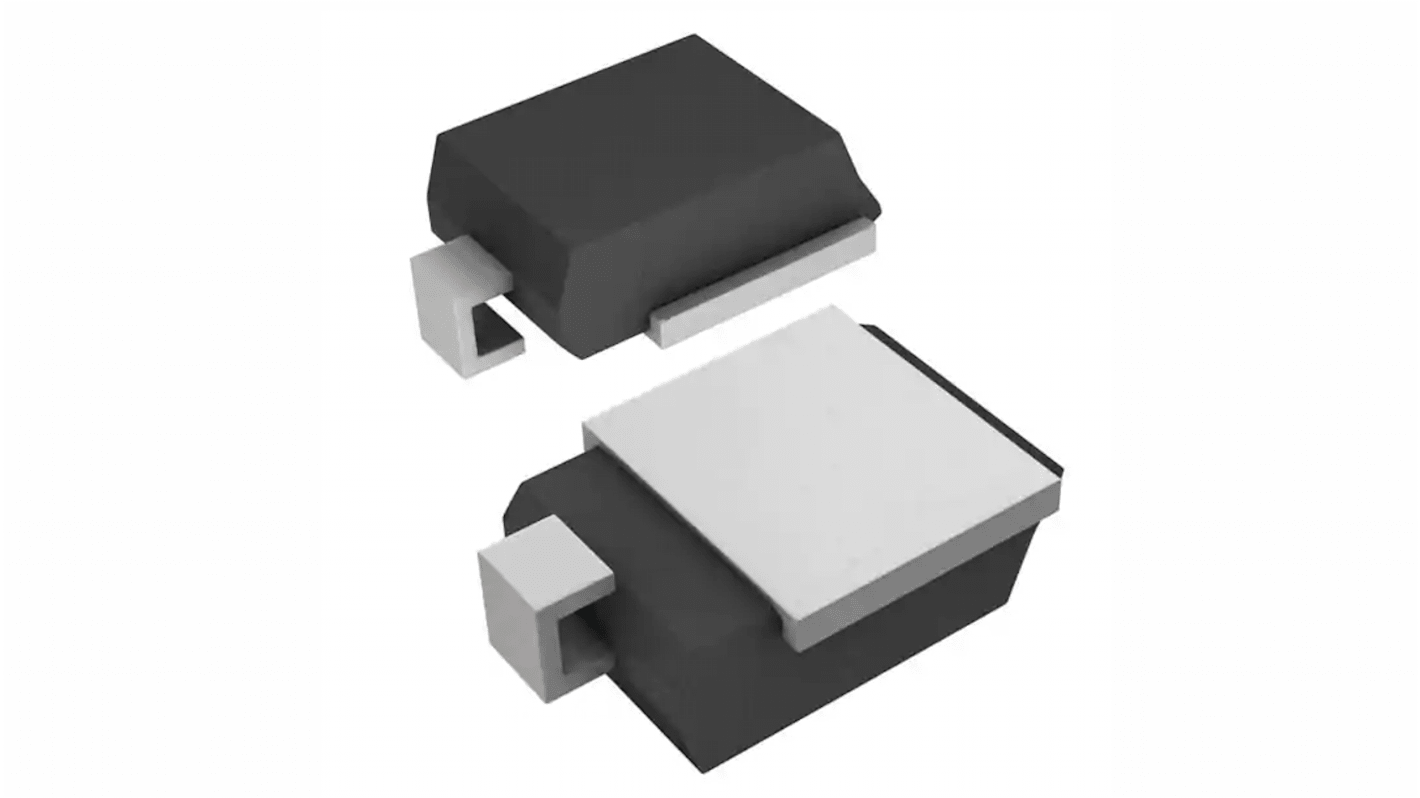

Vishay 1-Element Bi-Directional TVS Diode, 3.6 kW, 2-Pin DO-218

View all TVS Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
180-7366
Mfr. Part No.:
SM5A27THE3/I
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

TVS Diode

Direction Type

Bi-Directional

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

24V

Mount Type

Surface

Package Type

DO-218

Maximum Reverse Stand-off Voltage Vwm

22V

Pin Count

2

Peak Pulse Power Dissipation Pppm

3.6kW

Minimum Operating Temperature

-55°C

ESD Protection

Yes

Clamping Voltage VC

40V

Test Current It

10mA

Number of Elements per Chip

1

Maximum Operating Temperature

175°C

Length

16mm

Height

5mm

Series

PAR TVS

Standards/Approvals

No

Maximum Reverse Leakage Current

10μA

Automotive Standard

AEC-Q101

COO (Country of Origin):
CN

Vishay TVS Diode


The Vishay DO-218AC package, surface mount PAR unidirectional TVS diode is a voltage suppressor with a stand-off voltage rating of 22V and reverse breakdown voltage of 30V. It has a reverse leakage current rating of 10μA.

Features and Benefits


• High reliability conditions

• High surge capability

• High temperature stability

• Junction passivation optimized design passivated anisotropic rectifier technology

• Lead (Pb) free component

• Low forward voltage drop

• Low leakage current

• Meets MSL level 1, LF maximum peak of 245°C

• Operating junction temperature range between -55°C and 175°C

• Solderable matte tin plated leads terminals

• TJ = 175°C capability suitable for high reliability and automotive requirement

Applications


• Automotive load dump

• Sensitive electronics protections like ICs, MOSFET, signal lines of sensor units for consumers, computer, industrial, telecommunication

Certifications


• AEC-Q101 qualified

• e3

• ISO7637-2

• JESD 201 class 2

• JESD 22-B102

• J-STD-020

• UL 94 V-0 listed
