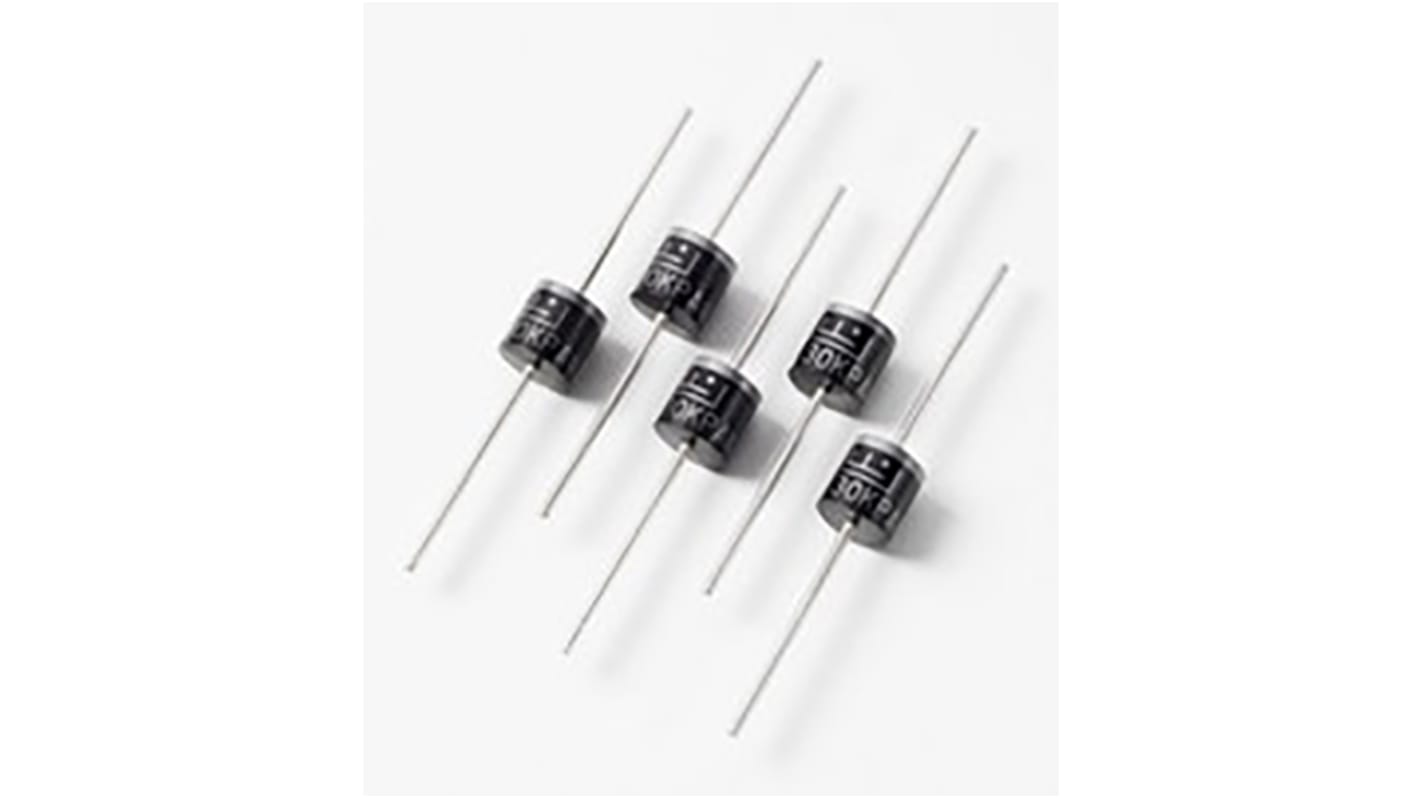

Littelfuse 30KPA36A, Uni-Directional TVS Diode, 30kW, 2-Pin P600
- RS Stock No.:
- 171-9501
- Mfr. Part No.:
- 30KPA36A
- Brand:
- Littelfuse
Bulk discount available
Subtotal (1 unit)*
£15.71
(exc. VAT)
£18.85
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 200 unit(s), ready to ship
Units | Per unit |
---|---|
1 - 4 | £15.71 |
5 - 9 | £14.00 |
10 - 49 | £13.33 |
50 - 99 | £11.82 |
100 + | £11.30 |
*price indicative
- RS Stock No.:
- 171-9501
- Mfr. Part No.:
- 30KPA36A
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Littelfuse | |
Diode Configuration | Single | |
Direction Type | Uni-Directional | |
Maximum Clamping Voltage | 61.8V | |
Minimum Breakdown Voltage | 40.2V | |
Mounting Type | Through Hole | |
Package Type | P600 | |
Maximum Reverse Stand-off Voltage | 36V | |
Pin Count | 2 | |
Peak Pulse Power Dissipation | 30kW | |
Maximum Peak Pulse Current | 490.3A | |
ESD Protection | Yes | |
Number of Elements per Chip | 1 | |
Minimum Operating Temperature | -55 °C | |
Dimensions | 9.1 Dia. x 9.1mm | |
Maximum Operating Temperature | +175 °C | |
Length | 9.1mm | |
Diameter | 9.1mm | |
Test Current | 50mA | |
Maximum Reverse Leakage Current | 5mA | |
Surge Current Rating | 400A | |
Select all | ||
---|---|---|
Brand Littelfuse | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 61.8V | ||
Minimum Breakdown Voltage 40.2V | ||
Mounting Type Through Hole | ||
Package Type P600 | ||
Maximum Reverse Stand-off Voltage 36V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 30kW | ||
Maximum Peak Pulse Current 490.3A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Dimensions 9.1 Dia. x 9.1mm | ||
Maximum Operating Temperature +175 °C | ||
Length 9.1mm | ||
Diameter 9.1mm | ||
Test Current 50mA | ||
Maximum Reverse Leakage Current 5mA | ||
Surge Current Rating 400A | ||
The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Halogen-Free
Typical maximum temperature coefficient ΔVBR = 0.1% — VBR@25°C
Glass passivated chip junction in P600 package
30000W peak pulse capability at 10—1000μs waveform, repetition rate (duty cycles):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to BV min
Excellent clamping capability
Low incremental surge resistance
Typical IR less than 2μA above 73V
High temperature soldering guaranteed: 265°C./10 seconds/ 0.375" (9.5mm) lead length, 51bs., (2.3kg) tension
Matte Tin Lead-free plated
Typical maximum temperature coefficient ΔVBR = 0.1% — VBR@25°C
Glass passivated chip junction in P600 package
30000W peak pulse capability at 10—1000μs waveform, repetition rate (duty cycles):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to BV min
Excellent clamping capability
Low incremental surge resistance
Typical IR less than 2μA above 73V
High temperature soldering guaranteed: 265°C./10 seconds/ 0.375" (9.5mm) lead length, 51bs., (2.3kg) tension
Matte Tin Lead-free plated
