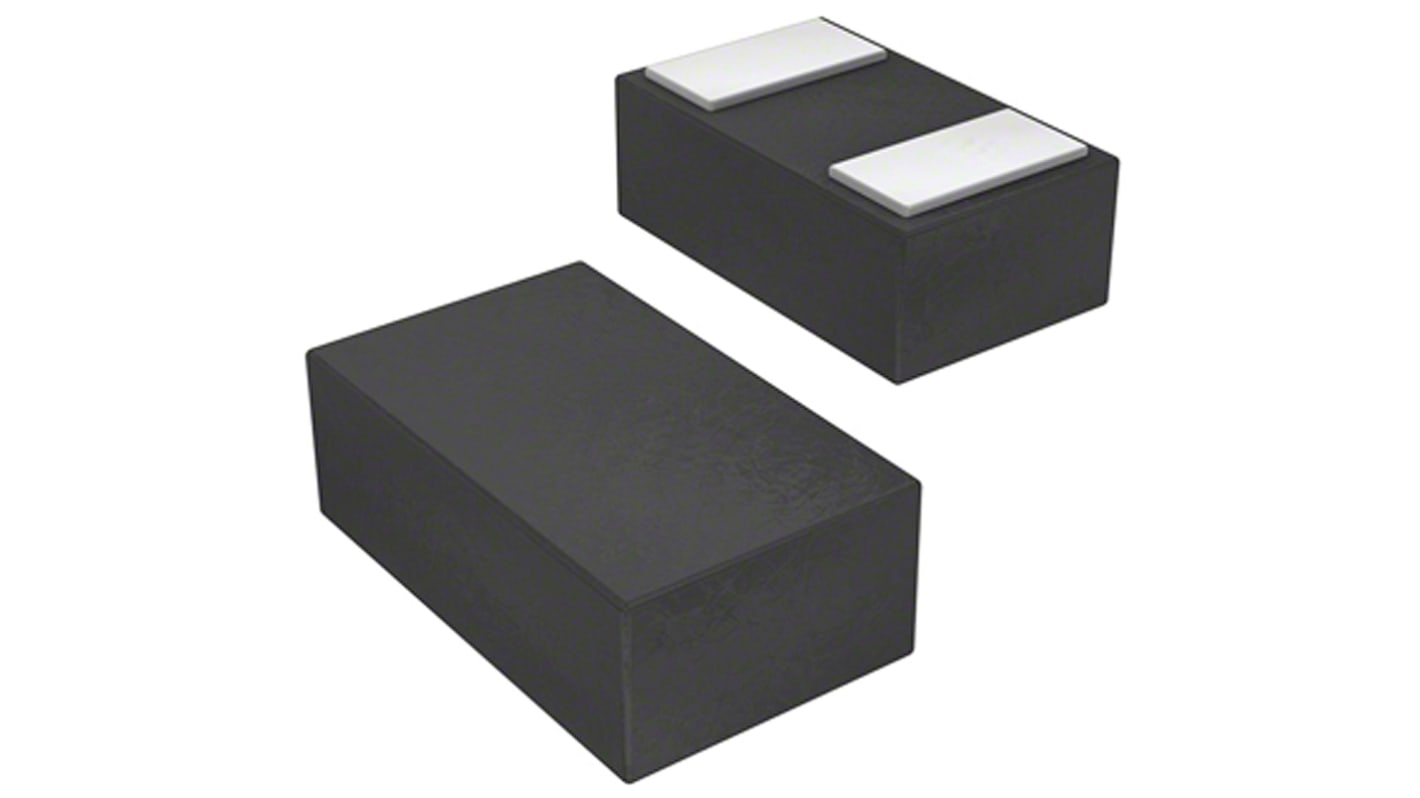

STMicroelectronics ESDA15P60-1U1M, Uni-Directional TVS Diode, 1200W, 2-Pin QFN
- RS Stock No.:
- 163-7314
- Mfr. Part No.:
- ESDA15P60-1U1M
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 163-7314
- Mfr. Part No.:
- ESDA15P60-1U1M
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Array | |
| Direction Type | Uni-Directional | |
| Maximum Clamping Voltage | 22.7V | |
| Minimum Breakdown Voltage | 13.6V | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Maximum Reverse Stand-off Voltage | 13.2V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 1200W | |
| Maximum Peak Pulse Current | 57A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 1.6 x 1 x 0.55mm | |
| Maximum Reverse Leakage Current | 50nA | |
| Width | 1mm | |
| Length | 1.6mm | |
| Height | 0.55mm | |
| Test Current | 1mA | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Array | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 22.7V | ||
Minimum Breakdown Voltage 13.6V | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Maximum Reverse Stand-off Voltage 13.2V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 1200W | ||
Maximum Peak Pulse Current 57A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 1.6 x 1 x 0.55mm | ||
Maximum Reverse Leakage Current 50nA | ||
Width 1mm | ||
Length 1.6mm | ||
Height 0.55mm | ||
Test Current 1mA | ||
ST’s power-line overvoltage protection devices support applications such as satellite boxes (LNB), high power DC-DC converters, and telecom power rails. The ITA series is optimized for industrial applications, the SLVU and PEP01 for Ethernet or PoE, the STIEC45 series is for DC power rails
Surge current capability up to 500 A
Wide package offering, including multi-line high-power device packages
Devices optimized to support specific applications
Wide package offering, including multi-line high-power device packages
Devices optimized to support specific applications
The ESDA15P60-1U1M is an unidirectional single line TVS diode designed to protect the power line against EOS and ESD transients. The device is ideal for applications where high power TVS and board space saving is required
Low clamping voltage
Typical peak pulse power:1200 W (8/20 μs)
Stand-off voltage 13.2 V
Unidirectional diode
Low leakage current:50 nA at 25 °C
±30 kV (air discharge)
±30 kV (contact discharge)
Typical peak pulse power:1200 W (8/20 μs)
Stand-off voltage 13.2 V
Unidirectional diode
Low leakage current:50 nA at 25 °C
±30 kV (air discharge)
±30 kV (contact discharge)
